Insights of water-to-hydrogen conversion from thermodynamics
-
GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
Nature of energy conversion in water splitting is thermodynamically clarified.
A novel criterion for judging the feasibility of water splitting is proposed.
The reasons for the decrease in temperature during water splitting are found.
The solar spectra-driven water splitting theoretical conversion limit is obtained.
-
-
ABSTRACT
Water-to-hydrogen can be achieved using a variety of driving energy sources, including thermal, electrical, or photo energy. While methods for hydrogen production in specific energy driving scenarios have been extensively studied, a comprehensive theory to explain the conversion of various energies into hydrogen is still lacking. This study provides a novel exergy-based perspective on hydrogen production methods, revealing that the thermodynamic infeasible water splitting process is derived from insufficient exergy input relative to the reaction exergy requirement. Enhancing the exergy input beyond the reaction exergy requirement can break through chemical equilibrium and enable the reaction to proceed. Providing high exergy-to-energy ratios of energy sources such as electrical, photo, and chemical energy for thermochemical water splitting reactions can reduce the thermal exergy demand for hydrogen production, thus facilitating water-to-hydrogen conversion at lower temperatures. By applying this new insight to coupled photochemical- and thermochemical water splitting reactions, equilibrium conversion rates corresponding to solar spectra with different wavelengths are obtained. The highest water-to-hydrogen conversion rate is achieved by the solar spectrum at a wavelength of about 451nm. The appropriate wavelength region for high water-to-hydrogen conversion is identified. This study also identifies the theoretical conversion limit of photochemical water splitting, providing insights into the potential improvements of current experiments. More importantly, our work offers a unified thermodynamic framework for understanding hydrogen production methods and presents a theoretical basis for reducing reaction temperature and enhancing conversion rate. -
-
REFERENCES
[1] Majumdar, A., Deutch, J.M., Prasher, R.S., et al. (2021). A framework for a hydrogen economy Comment. Joule 5: 1905−1908. DOI: 10.1016/j.joule.2021.07.007. [2] Safari, F., and Dincer, I. (2020). A review and comparative evaluation of thermochemical water splitting cycles for hydrogen production. Energy Convers. Manag. 205: 112182. DOI: 10.1016/j.enconman.2019.112182. [3] Rasul, M.G., Hazrat, M.A., Sattar, M.A., et al. (2022). The future of hydrogen: Challenges on production, storage and applications. Energy Convers. Manag. 272: 116326. DOI: 10.1016/j.enconman.2022.116326. [4] Fletcher, E.A., and Moen, R.L. (1977). HYDROGEN AND OXYGEN FROM WATER. Science 197: 1050−1056. DOI: 10.1126/science.197.4308.1050. [5] Zhang, M., Guan, J., Tu, Y.C., et al. (2021). Highly efficient conversion of surplus electricity to hydrogen energy via polysulfides redox. The Innovation 2: 100144. DOI: 10.1016/j.xinn.2021.100144. [6] Ma, Y., Shi, R., and Zhang, T. (2022). Palladium membrane electro-hydrogenation. The Innovation 3: 100324. DOI: 10.1016/j.xinn.2022.100324. [7] Zhao, D.M., Wang, Y.Q., Dong, C.L., et al. (2021). Boron-doped nitrogen-deficient carbon nitride-based Z-scheme heterostructures for photocatalytic overall water splitting. Nat. Energy 6: 388−397. DOI: 10.1038/s41560-021-00795-9. [8] Bhosale, R.R., Kumar, A., and Sutar, P. (2017). Thermodynamic analysis of solar driven SnO2/SnO based thermochemical water splitting cycle. Energy Convers. Manag. 135: 226−235. DOI: 10.1016/j.enconman.2016.12.067. [9] Bulfin, B., Vieten, J., Agrafiotis, C., et al. (2017). Applications and limitations of two step metal oxide thermochemical redox cycles; a review. J. Mater. Chem. A 5: 18951−18966. DOI: 10.1039/c7ta05025a. [10] Lu, Y.J., Zhu, L.Y., Agrafiotis, C., et al. (2019). Solar fuels production: Two-step thermochemical cycles with cerium-based oxides. Prog. Energy Combust. Sci. 75. 100785. DOI: 10.1016/j.pecs.2019.100785. [11] Rahim, A.H.A., Tijani, A.S., Kamarudin, S.K., et al. (2016). An overview of polymer electrolyte membrane electrolyzer for hydrogen production: Modeling and mass transport. J. Power Sources 309: 56−65. DOI: 10.1016/j.jpowsour.2016.01.012. [12] Zhang, H.B., Zuo, S.W., Qiu, M., et al. (2020). Direct probing of atomically dispersed Ru species over multi-edged TiO2 for highly efficient photocatalytic hydrogen evolution. Sci. Adv. 6: eabb9823. DOI: 10.1126/sciadv.abb9823. [13] Zeng, W.A., Dong, Y.C., Ye, X.Y., et al. (2023). Ultrathin porous carbon nitride with molecular structure regulation for excellent photocatalytic water splitting. Chem. Eng. J. 468: 143604. DOI: 10.1016/j.cej.2023.143604. [14] Lu, B.C., Yan, X.Y., and Liu, Q.B. (2023). Enhanced solar hydrogen generation with the direct coupling of photo and thermal energy-An experimental and mechanism study. Appl. Energy 331: 120468. DOI: 10.1016/j.apenergy.2022.120468. [15] Cheng, W.H., de la Calle, A., Atwater, H.A., et al. (2021). Hydrogen from Sunlight and Water: A Side-by-Side Comparison between Photoelectrochemical and Solar Thermochemical Water-Splitting. Acs Energy Lett. 6: 3096−3113. DOI: 10.1021/acsenergylett.1c00758. [16] Wang, H.S., Hao, Y., and Kong, H. (2015). Thermodynamic study on solar thermochemical fuel production with oxygen permeation membrane reactors. International Journal of Energy Research 39: 1790−1799. DOI: 10.1002/er.3335. [17] Ling, Y.Y., Wang, H.S., Liu, M.K., et al. (2022). Sequential separation-driven solar methane reforming for H2 derivation under mild conditions. Energy & Environmental Science 15: 1861−1871. DOI: 10.1039/d1ee03870b. [18] Zhang, Q.Q., Chang, Z.S., Fu, M.K., et al. (2022). Thermal performance analysis of an integrated solar reactor using solid oxide electrolysis cells (SOEC) for hydrogen production. Energy Conversion and Management 264: 115762. DOI: 10.1016/j.enconman.2022.115762. [19] Holmes-Gentle, I., Tembhurne, S., Suter, C., et al. (2023). Kilowatt-scale solar hydrogen production system using a concentrated integrated photoelectrochemical device. Nature Energy 8: 586−596. DOI: 10.1038/s41560-023-01247-2. [20] Su, B.S., Wang, Y.L., Xu, Z.L., et al. (2022). Novel ways for hydrogen production based on methane steam and dry reforming integrated with carbon capture. Energy Conversion and Management 270: 116199. DOI: 10.1016/j.enconman.2022.116199. [21] Liu, T.X., Bai, Z., Zheng, Z.M., et al. (2019). 100 kWe power generation pilot plant with a solar thermochemical process: design, modeling, construction, and testing. Applied Energy 251: 113217. DOI: 10.1016/j.apenergy.2019.05.020. [22] Wang, Z., Roberts, R.R., Naterer, G.F., et al. (2012). Comparison of thermochemical, electrolytic, photoelectrolytic and photochemical solar-to-hydrogen production technologies. International Journal of Hydrogen Energy 37: 16287−16301. DOI: 10.1016/j.ijhydene.2012.03.057. [23] Kodama, T., and Gokon, N. (2007). Thermochernical cycles for high-temperature solar hydrogen production. Chemical Reviews 107: 4048−4077. DOI: 10.1021/cr050188a. [24] Mao, Y.P., Gao, Y.B., Dong, W., et al. (2020). Hydrogen production via a two-step water splitting thermochemical cycle based on metal oxide - A review. Applied Energy 267: 114860. DOI: 10.1016/j.apenergy.2020.114860. [25] Xue, X.D., Han, W., Liu, C.C., et al. (2023). Proposal and evaluation of a hydrogen and electricity cogeneration system based on thermochemical complementary utilization of coal and solar energy. Energy Conversion and Management 291: 117266. DOI: 10.1016/j.enconman.2023.117266. [26] Bolt, A., Dincer, I., and Agelin-Chaab, M. (2020). Energy and exergy analyses of hydrogen production process with aluminum and water chemical reaction. Energy 205: 117978. DOI: 10.1016/j.energy.2020.117978. [27] Steinfeld, A. (2019). Concentrated solar energy - the path for efficient thermal conversion to power and fuels. Science Bulletin 64: 485−486. DOI: 10.1016/j.scib.2019.04.012. [28] Kumar, A., Sharma, M., Thakur, P., et al. (2020). A review on exergy analysis of solar parabolic collectors. Solar Energy 197: 411−432. DOI: 10.1016/j.solener.2020.01.025. [29] Jiao, F., Lu, B.C., Chen, C., et al. (2021). Exergy transfer and degeneration in thermochemical cycle reactions for hydrogen production: Novel exergy- and energy level-based methods. Energy 219: 119531. DOI: 10.1016/j.energy.2020.119531. [30] Resnick, A. (2021). Thermodynamics: principles characterising physical and chemical processes, 5th edition. Contemporary Physics 62: 185−186. DOI: 10.1080/00107514.2022.2038683. [31] Wang, Q., and Macián-Juan, R. (2022). Thermodynamic analysis of two novel very high temperature gas- cooled reactor-based hydrogen-electricity cogeneration systems using sulfur-iodine cycle and gas-steam combined cycle. Energy 256: 124671. DOI: 10.1016/j.energy.2022.124671. [32] Gharagheizi, F., Ilani-Kashkouli, P., and Hedden, R.C. (2018). Standard molar chemical exergy: A new accurate model. Energy 158: 924−935. DOI: 10.1016/j.energy.2018.05.186. [33] Chu, S.X., and Liu, L.H. (2009). Analysis of terrestrial solar radiation exergy. Solar Energy 83: 1390−1404. DOI: 10.1016/j.solener.2009.03.011. -
ABOUT THIS ARTICLE
Cite this article:
Jiao F., Chen C., Liu T., et al., (2024). Insights of water-to-hydrogen conversion from thermodynamics. The Innovation Energy 1(1): 100004. https://doi.org/10.59717/j.xinn-energy.2024.100004
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(8)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Jiao F., Chen C., Liu T., et al., (2024). Insights of water-to-hydrogen conversion from thermodynamics. The Innovation Energy 1(1): 100004. https://doi.org/10.59717/j.xinn-energy.2024.100004
Format
Content
-
Figure 1.
Energy and exergy increment from reactants to products in an endothermic reaction.
-
Figure 2.

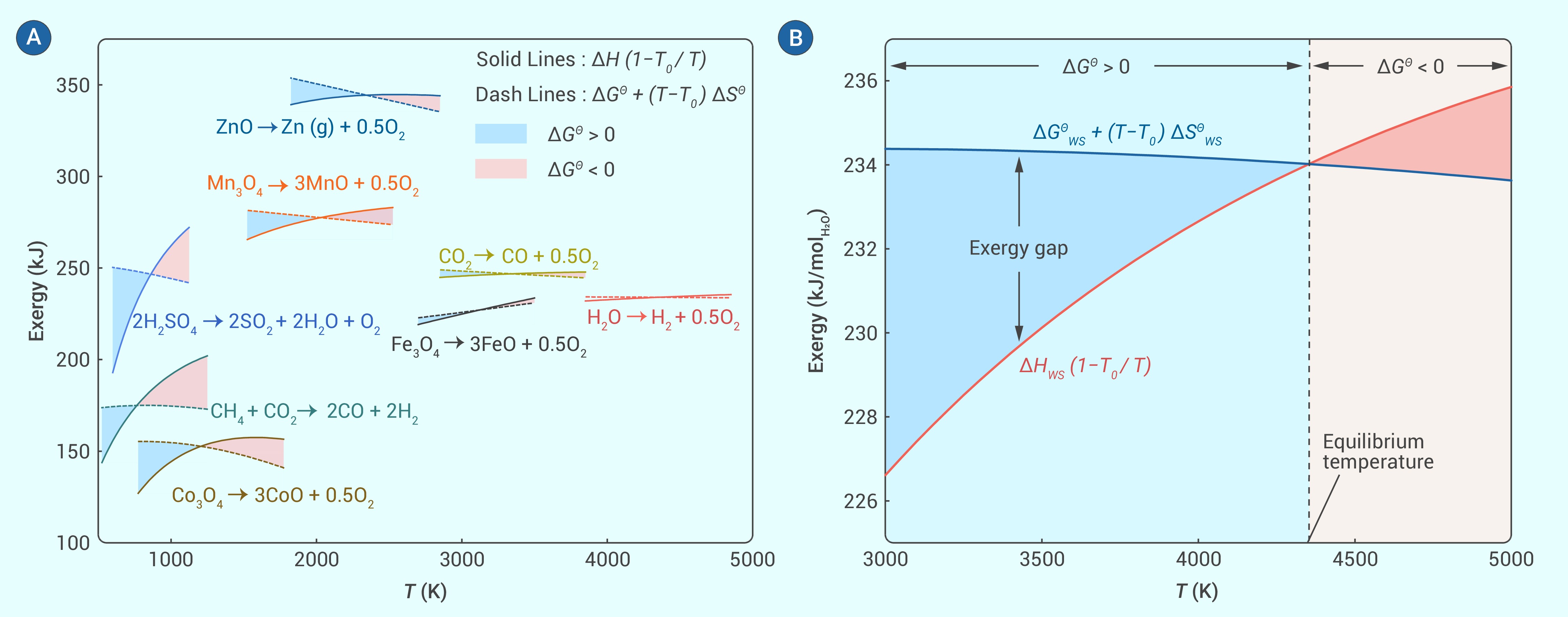

Relationships between thermal exergy input and the reaction exergy requirement
-
Figure 3.
Correlation of exergy input and exergy requirement in water splitting with electrical and thermal energy
-
Figure 4.

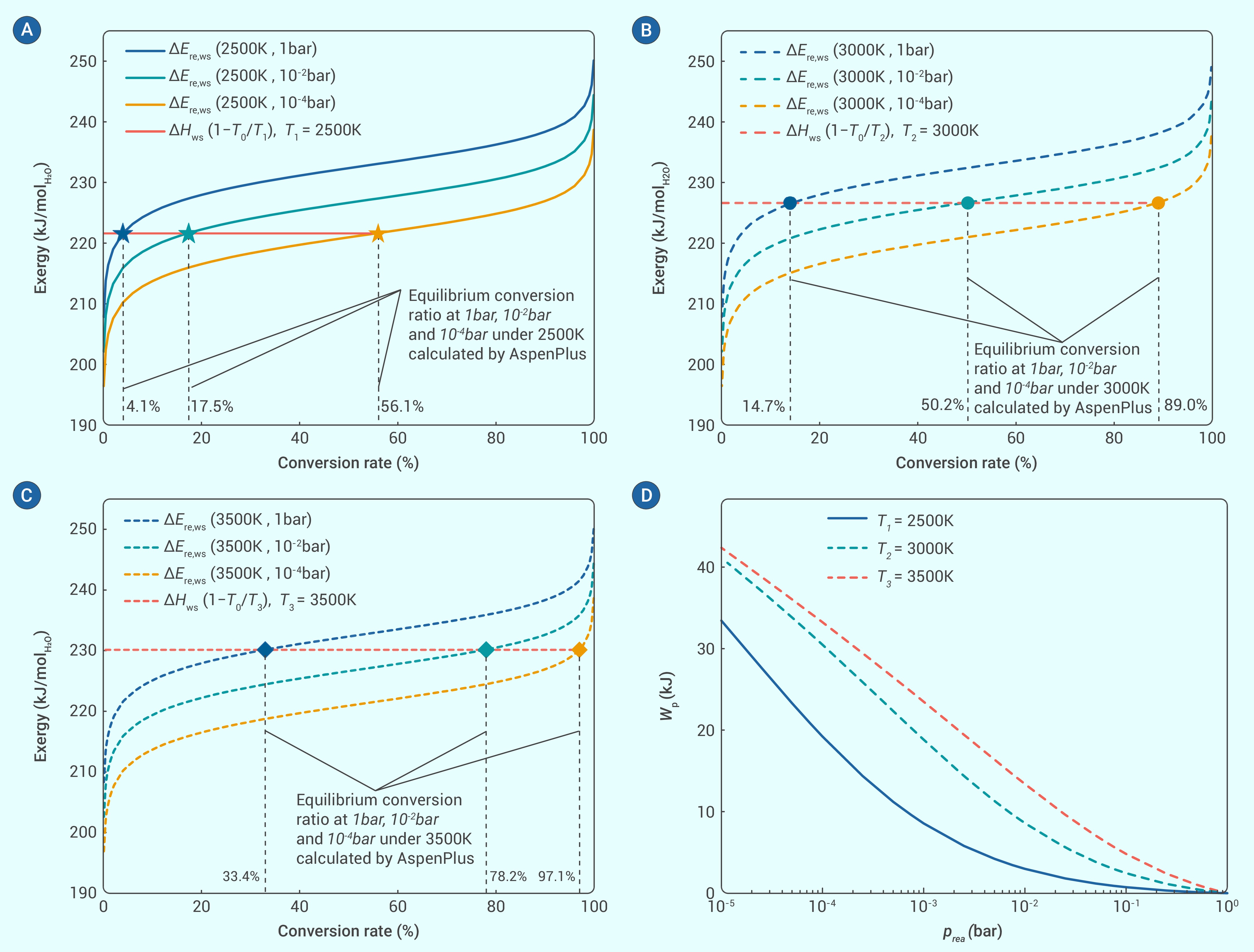

Effect of the conversion rate and reaction pressure on the exergy requirement at the temperatures of
-
Figure 5.
Exergy conversion in a methane steam reforming (MSR) reaction.
-
Figure 6.
Temperature decreasing mechanism of fuel reforming reaction compared with water pyrolysis
-
Figure 7.

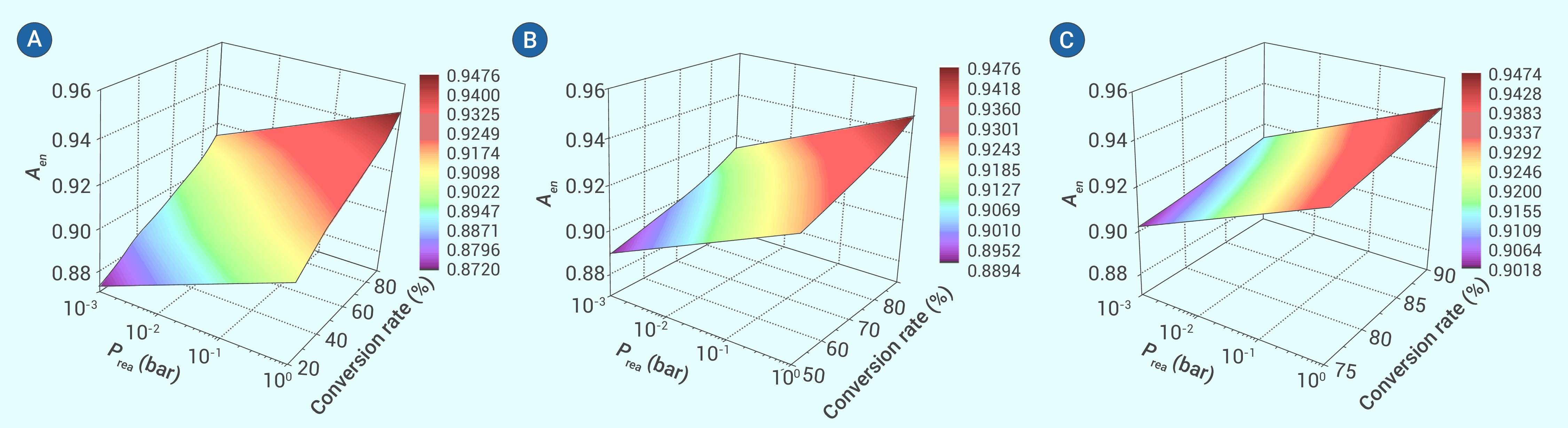

Variations in Aen as a function of reaction pressure prea and conversion rate under different temperature
-
Figure 8.

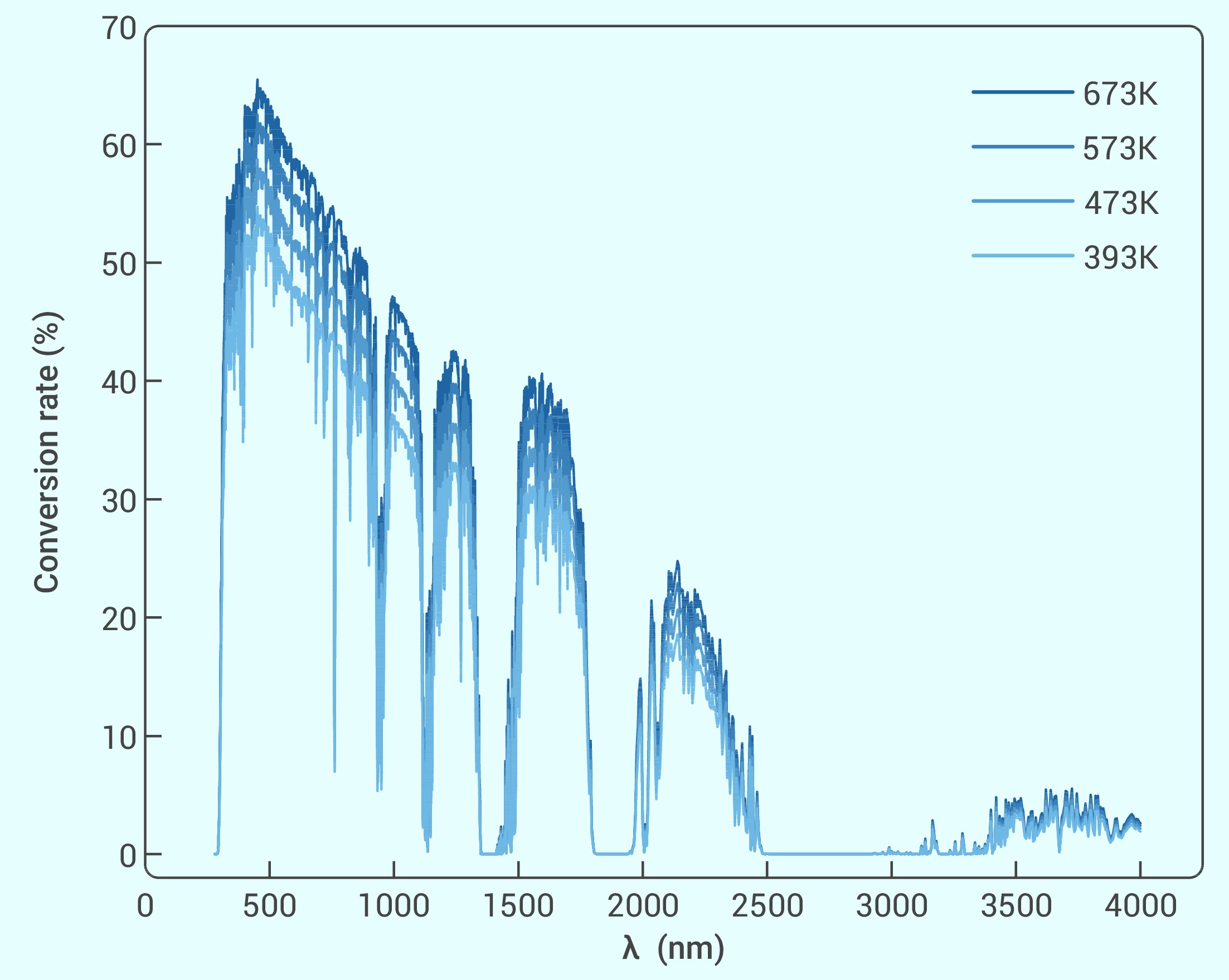

Equilibrium conversion rate of the water splitting as a function of wavelength λ under different reaction temperature at the total pressure of 1 bar.
