Three-dimensional pore-scale study of methane hydrate dissociation mechanisms based on micro-CT images

Junyu Yang; Qianghui Xu; Xuan Kou; Geng Wang; Timan Lei; Yi Wang; Xiaosen Li; Kai H. Luo

doi:10.59717/j.xinn-energy.2024.100015

The Innovation Energy > 2024 Vol. 1 > No. 1 > 100015

Next Article Previous Article

ARTICLE Open Access

Cite PDF

Three-dimensional pore-scale study of methane hydrate dissociation mechanisms based on micro-CT images

1.
Department of Mechanical Engineering, University College London, Torrington Place, London WC1E 7JE, UK
2.
School of Mechanical Engineering, Beijing Institute of Technology, Beijing 100081, China
3.
Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences, Guangzhou 510640, China
4.
Center for Combustion Energy, Tsinghua University, Beijing 100084, China

More Information

Corresponding authors: xuqh12@bit.edu.cn (Q.X.); k.luo@ucl.ac.uk (K.L.)
Received Date: January 27, 2024

Accepted Date: February 19, 2024

Published Online: February 23, 2024

The Innovation Energy 1(1), https://doi.org/10.59717/j.xinn-energy.2024.100015 | Cite this article

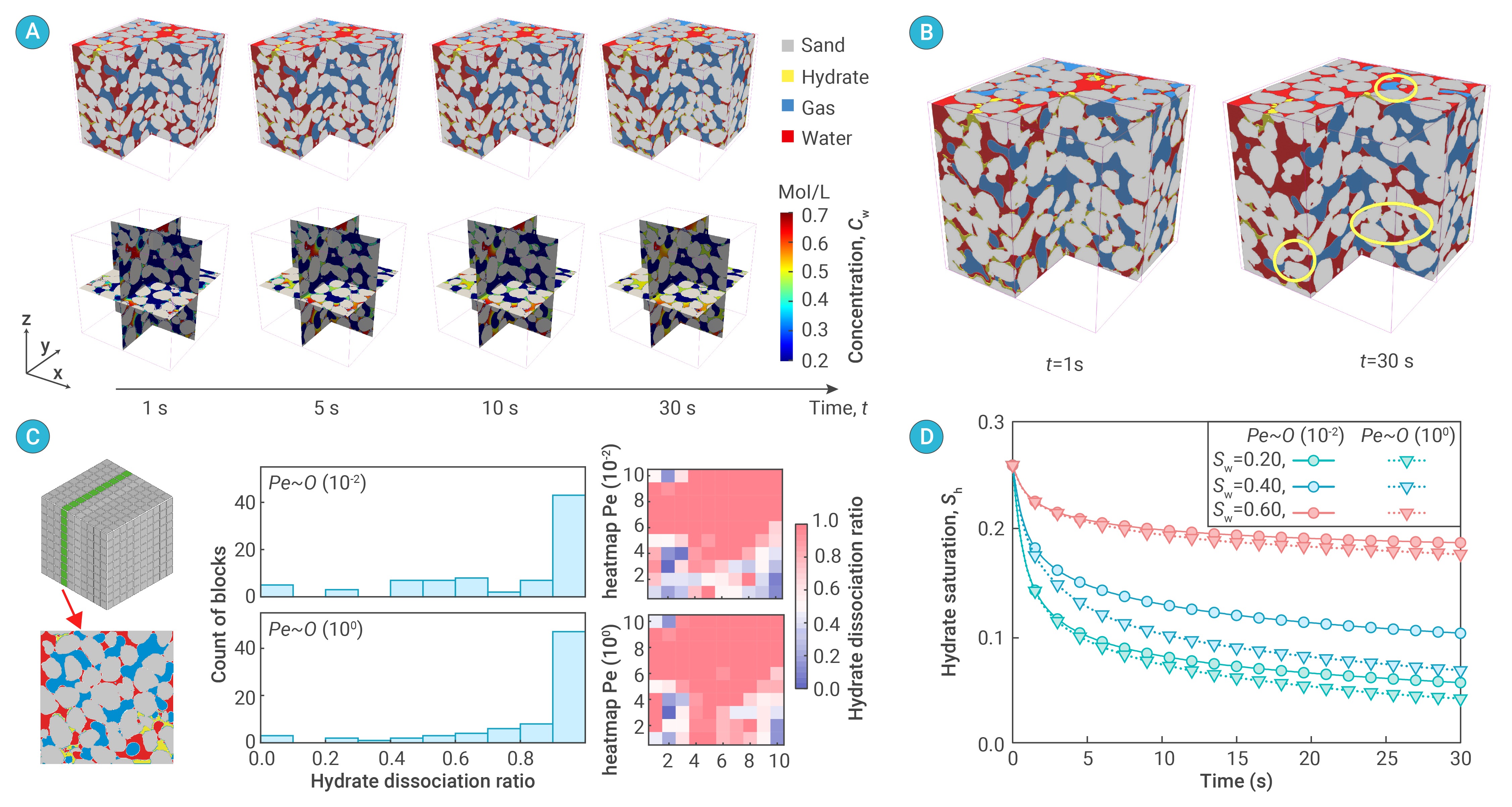

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT

DownLoad: Full size image

PUBLIC SUMMARY

PUBLIC SUMMARY
1. Methane hydrate dissociation mechanisms within actual sediment pore structure are revealed.

  The hydrate pore habits influence the dissociation mechanisms and upscaling models.

  A pore-scale numerical framework for methane hydrate dissociation is established.

  A good agreement between pore-scale experiments and numerical simulations is achieved.

  Upscaling parameters for the methane hydrate production forecast are provided.

ABSTRACT

ABSTRACT

Methane hydrate is a promising source of alternative energy. An in-depth understanding of the hydrate dissociation mechanism is crucial for the efficient extraction. In the present work, a comprehensive set of pore-scale numerical studies of hydrate dissociation mechanisms is presented. Pore-scale lattice Boltzmann (LB) models are proposed to simulate the multiphysics process during methane hydrate dissociation. The numerical simulations employ the actual hydrate sediment pore structure obtained by the micro-CT imaging. Experimental results of xenon hydrate dissociation are compared with the numerical simulations, indicating that the observed hydrate pore habits evolution is accurately captured by the proposed LB models. Furthermore, simulations of methane hydrate dissociation under different sediment water saturations, fluid flow rates and thermal conditions are conducted. Heat and mass transfer limitations both have significant effects on the methane hydrate dissociation rate. The bubble movement can further influence the dissociation process. Dissociation patterns can be divided into three categories, uniform, non-uniform and wormholing. The fluid flow impacts hydrate dissociation rates differently in three-dimensional real structures compared to two-dimensional idealized ones, influenced by variations in hydrate pore habits and flow properties. Finally, upscaling investigations are conducted to provide the permeability and kinetic models for the representative elementary volume (REV)-scale production forecast. Due to the difference in the hydrate pore habits and dissociation mechanisms, the three-dimensional upscaling results contrast with prior findings from two-dimensional studies. The present work provides a paradigm for pore-scale numerical simulation studies on the hydrate dissociation, which can offer theoretical guidance on efficient hydrate extraction.
