PUBLIC SUMMARY
-
The tight arrangement of NiTi wires ensures an enhanced cooling effect.
The cam structure achieves the continuous, alternating phase transformation of NiTi bundles.
Using air as the heat exchange medium aligns better with the application requirements for space cooling.
A rational model shows the optimal direction for the device and its significant cooling capacity.
-
-
ABSTRACT
Elastocaloric cooling has shown significant potential as an alternative to traditional vapor-compression technology because it relies on nonflammable, non-toxic, and zero-global warming potential solid refrigerants (usually NiTi and TiNi-based shape memory alloys). However, the uniaxial loading mode commonly used in existing elastocaloric cooling devices is often accompanied by a lower operating frequency. Additionally, using water as the heat exchange medium presents challenges in further cooling the air with cold water. These issues will hinder the application of this type of refrigerators in space cooling scenarios. Here, we report a continuous operating tension-based elastocaloric air-cooling device that utilizes the bundles of NiTi wires. The driving mode based on the cam structure realizes the alternating loading-unloading cycle of multiple NiTi bundles, facilitating continuous the cooling process. Our air-cooling device achieves a temperature decrease of 4.4 ℃ in continuous air flow and provides a cooling power of 21 W. These results demonstrate the possibility of applying elastocaloric technology in space cooling and provide a technical reference for designing household air conditioners using this technology. -
-
REFERENCES
[1] Moya, X., Defay, E., Heine, V., et al. (2015). Too cool to work. Nat. Phys. 11(3): 202−205. DOI: 10.1038/nphys3271. [2] Abas, N., Kalair, A.R., Khan, N., et al. (2018). Natural and synthetic refrigerants, global warming: A review. Renew. Sust. Energy Rev. 90: 557−569. DOI: 10.1016/j.rser.2018.03.099. [3] Coulomb, D., Dupont, J.-L., and Morlet, V. (2017). The impact of the refrigeration sector on climate change-35. Informatory note on refrigeration technologies. INIS, https://iifiir.org/en/fridoc/the-impact-of-the-refrigeration-sector-on-climate-change-141135. [4] Kitanovski, A. (2020). Energy applications of magnetocaloric materials. Adv. Energy Mater. 10(10): 1903741. DOI: 10.1002/aenm.201903741. [5] Qian, X., Han, D., Zheng, L., et al. (2021). High-entropy polymer produces a giant electrocaloric effect at low fields. Nature 600: 664−669. DOI: 10.1038/s41586-021-04189-5. [6] Tušek, J., Engelbrecht, K., Mikkelsen, L.P., et al. (2015). Elastocaloric effect of Ni-Ti wire for application in a cooling device. J. Appl. Phys. 117(12): 124901. DOI: 10.1063/1.4913878. [7] Cong, D., Xiong, W., Planes, A., et al. (2019). Colossal elastocaloric effect in ferroelastic Ni-Mn-Ti alloys. Phys. Rev. Lett. 122(25): 255703. DOI: 10.1103/PhysRevLett.122.255703. [8] Hou, H., Qian, S., and Takeuchi, I. (2022). Materials, physics and systems for multicaloric cooling. Nat. Rev. Mater. 7: 633−652. DOI: 10.1038/s41578-022-00428-x. [9] Bonnot, E., Romero, R., Mañosa, L., et al. (2008). Elastocaloric effect associated with the martensitic transition in shape-memory alloys. Phys. Rev. Lett. 100: 125901. DOI: 10.1103/PhysRevLett.100.125901. [10] Zhang, G., Wang, H., Li, Z., et al. (2023). Colossal elastocaloric effect in a <001>A oriented Ni49Mn33Ti18 polycrystalline alloy. Scr. Mater. 234: 115584. DOI: 10.1016/j.scriptamat.2023.115584. [11] Schmidt, M., Schütze, A., and Seelecke, S. (2015). Scientific test setup for investigation of shape memory alloy based elastocaloric cooling processes. Int. J. Refrig. 54: 88−97. DOI: 10.1016/j.ijrefrig.2015.03.001. [12] Qian, S., Catalini, D., Muehlbauer, J., et al. (2023). High-performance multimode elastocaloric cooling system. Science 380: 722−727. DOI: 10.1126/science.adg7043. [13] Welsch, F., Kirsch, S.-M., Michaelis, N., et al. (2019). Continuous operating elastocaloric heating and cooling device: Model-based parameter study with airflow losses. ASME 2019 Conference on SMASIS: V001T04A020. DOI: 10.1115/SMASIS2019-5636. [14] Kirsch, S.-M., Welsch, F., Ehl, L., et al. (2019). Continuous operating elastocaloric heating and cooling device: Air flow investigation and experimental parameter study. ASME 2019 Conference on SMASIS: V001T04A018. DOI: 10.1115/SMASIS2019-5633. [15] Chen, Y., Wang, Y., Sun, W., et al. (2022). A compact elastocaloric refrigerator. The Innovation 3: 100205. DOI: 10.1016/j.xinn.2022.100205. [16] Tušek, J., Engelbrecht, K., Eriksen, D., et al. (2016). A regenerative elastocaloric heat pump. Nat. Energy 1: 16134. DOI: 10.1038/nenergy.2016.134. [17] Qian, S., Geng, Y., Wang, Y., et al. (2016). Design of a hydraulically driven compressive elastocaloric cooling system. Sci. Technol. Built. Environ. 22: 500−506. DOI: 10.1080/23744731.2016.1171630. [18] Greco, A., Aprea, C., Maiorino, A., et al. (2019). A review of the state of the art of solid-state caloric cooling processes at room-temperature before 2019. Int. J. Refrig. 106: 66−88. DOI: 10.1016/j.ijrefrig.2019.06.034. [19] Snodgrass, R., and Erickson, D. (2019). A multistage elastocaloric refrigerator and heat pump with 28 K temperature span. Sci. Rep. 9: 18532. DOI: 10.1038/s41598-019-54411-8. [20] Zhou, G., Zhu, Y., Yao, S., et al. (2023). Giant temperature span and cooling power in elastocaloric regenerator. Joule 7: 2003−2015. DOI: 10.1016/j.joule.2023.07.004. [21] Kirsch, S.-M., Welsch, F., Michaelis, N., et al. (2018). NiTi-based elastocaloric cooling on the macroscale: From basic concepts to realization. Energy Technol. 6(8): 1567−1587. DOI: 10.1002/ente.201800152. [22] Chen, H., Xiao, F., Li, Z., et al. (2021). Elastocaloric effect with a broad temperature window and low energy loss in a nanograin Ti-44Ni-5Cu-1Al shape memory alloy. Phys. Rev. Mater. 5: 015201. DOI: 10.1103/PhysRevMaterials.5.015201. [23] Chluba, C., Ossmer, H., Zamponi, C., et al. (2016). Ultra-low fatigue quaternary TiNi-based films for elastocaloric cooling. Shape. Mem. Supere. 2(1): 95−103. DOI: 10.1007/s40830-016-0054-3. [24] Wu, Y., Ertekin, E., and Sehitoglu, H. (2017). Elastocaloric cooling capacity of shape memory alloys - Role of deformation temperatures, mechanical cycling, stress hysteresis and inhomogeneity of transformation. Acta Mater. 135: 158−176. DOI: 10.1016/j.actamat.2017.06.012. [25] Tušek, J., Žerovnik, A., Čebron, M., et al. (2018). Elastocaloric effect vs fatigue life: Exploring the durability limits of Ni-Ti plates under pre-strain conditions for elastocaloric cooling. Acta Mater. 150: 295−307. DOI: 10.1016/j.actamat.2018.03.032. [26] Zhu, X., Zhang, X., Qian, M., et al. (2019). Elastocaloric effects related to B2 <-> R and B2 <-> B19 ' martensite transformations in nanocrystalline Ni50.5Ti49.5 microwires. J. Alloys Compd. 792: 780-788. DOI: 10.1016/j.jallcom.2019.04.087. [27] Cui, J., Wu, Y., Muehlbauer, J., et al. (2012). Demonstration of high efficiency elastocaloric cooling with large ΔT using NiTi wires. Appl. Phys. Lett. 101: 073904. DOI: 10.1063/1.4746257. -
ABOUT THIS ARTICLE
Cite this article:
Hou R., Xiao F., Wu S., et al., (2024). Continuous operating elastocaloric air-cooling device. The Innovation Energy 1(2): 100026. https://doi.org/10.59717/j.xinn-energy.2024.100026
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(4)
Supplementary Information
-
download_supplementary
video1-2
Article Metrics
Relative Articles
Cited by
Export File
Citation
Hou R., Xiao F., Wu S., et al., (2024). Continuous operating elastocaloric air-cooling device. The Innovation Energy 1(2): 100026. https://doi.org/10.59717/j.xinn-energy.2024.100026
Format
Content
-

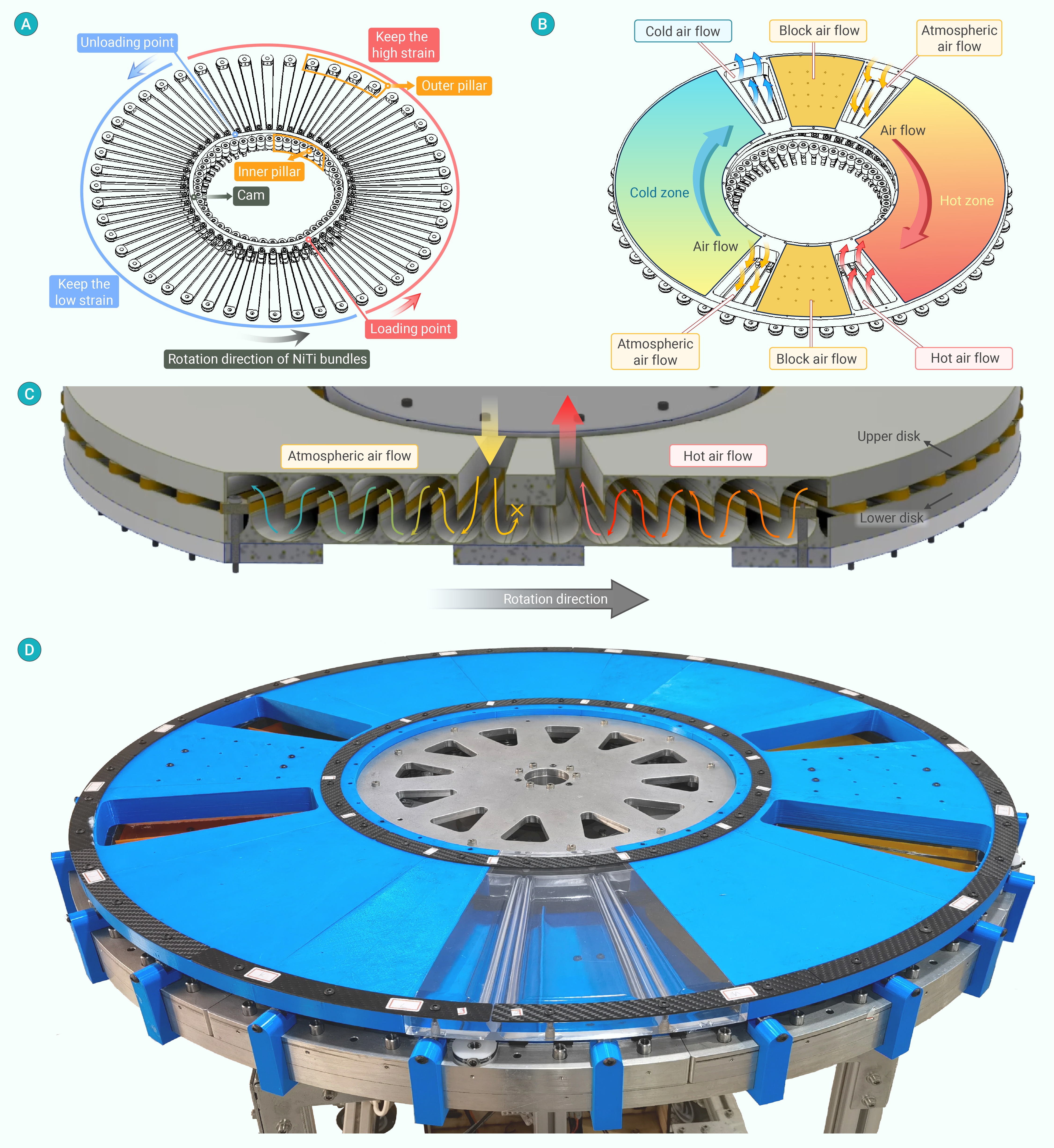

Figure 1.
Structural design schematics and working principle of the air-cooling device
-
Figure 2.
Elastocaloric effect of a NiTi bundle installed on the elastocaloric cooling device
-
Figure 3.
Measured refrigeration performance of the device
-
Figure 4.
Simulated results of the model based on the convective heat transfer
