Sustainable heat-driven sound cooler with super-high efficiency
-
GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
Desiging a super-efficient heat-driven thermaocosutic refrigerator.
Achieving an unprecedented coefficient of performance of 1.34.
The system exhibits bright prospect in heat-driven room-temperature refrigeration.
-
-
ABSTRACT
Sustainable cooling technologies with high efficiency are increasingly vital in modern life. Characterized by eco-friendly working substances and no mechanical moving components, the heat-driven thermoacoustic refrigerator (HDTR) makes it a really sustainable choice. However, its practical application has been hindered by its relatively low efficiency. This work reports a breakthrough in thermally-powered sound cooling technology: a super-efficient HDTR. The system incorporates an innovative configuration, ensuring efficient acoustic power matching between the engine and cooler units at high heating temperatures, thereby significantly boosting efficiency. Our experimental findings are exhilarating: the HDTR achieves an unprecedented coefficient of performance (COP) of 1.34 at heating, ambient, and cooling temperatures of 550 °C, 35 °C, and 7 °C, respectively, along with a cooling power of 2.37 kW. To the best of our knowledge, under approximate temperature spans, this COP surprisingly increases by 240% compared to the best result previously reported for HDTRs without using the novel configuration. These results represent a significant advancement in HDTR technology, showing a tremendous potential of the HDTR as an emerging, sustainable cooling technology, particularly for heat-driven room-temperature refrigeration applications. -
-
REFERENCES
[1] Wang, Y., Han, Y., Shen, J., et al. (2024). Data center integrated energy system for sustainability: Generalization, approaches, methods, techniques, and future perspectives. The Innovation Energy 1: 100014. DOI: 10.59717/j.xinn-energy.2024.100014. [2] Jiao, F., Chen, C., Liu, T., et al. (2024). Insights of water-to-hydrogen conversion from thermodynamics. The Innovation Energy 1: 100004. DOI: 10.59717/j.xinn-energy.2024.100004. [3] Wang, H.Z., Zhang, L.M., Yu, G.Y., et al. (2019). A looped heat-driven thermoacoustic refrigeration system with direct-coupling configuration for room temperature cooling. Sci. Bull. 64: 8−10. DOI: 10.1016/j.scib.2018.12.007. [4] Chen, G., Tang, L. , Mace, B., et al. (2021). Multi-physics coupling in thermoacoustic devices: A review. Renew. Sustain. Energy Rev. 146: 111170. DOI: 10.1016/j.rser.2021.111170. [5] Zolpakar, N.A., Mohd-Ghazali, N., and El-Fawal, M.H. (2016) Performance analysis of the standing wave thermoacoustic refrigerator: A review. Renew. Sustain. Energy Rev. 54: 626-634. DOI: 10.1016/j.rser.2015.10.018. [6] Hofler, T.J., and Adeff, J.A. (1997). Improvements in an experimental thermoacoustically driven thermoacoustic refrigerator. J. Acoust. Soc. Am. 102(5_Supplement): 3071. DOI: 10.1121/1.420123. [7] Adeff, J.A., and Hofler, T.J. (2000). Design and construction of a solar-powered, thermoacoustically driven, thermoacoustic refrigerator. J. Acoust. Soc. Am. 107: L37−L42. DOI: 10.1121/1.429324. [8] Backhaus, S., and Swift, G.W. (1999). A thermoacoustic Stirling heat engine. Nature 399: 335−338. DOI: 10.1038/20624. [9] Kang, H.F., Zhou, G., and Li, Q. (2010). Heat driven thermoacoustic cooler based on traveling–standing wave. Energy Convers. Manage. 51: 2103−2108. DOI: 10.1016/j.enconman.2010.03.002. [10] Luo, E.C., Dai, W., Zhang, Y., et al. (2006). Experimental investigation of a thermoacoustic-Stirling refrigerator driven by a thermoacoustic-Stirling heat engine. Ultrasonics 44: e1531−e1533. DOI: 10.1016/j.ultras.2006.08.002. [11] Wang, H.Z., Zhang, L.M., Hu, J.Y, et al. (2021). Study on a novel looped heat-driven thermoacoustic refrigerator with direct-coupling configuration for room temperature cooling. Int. J. Refrig. 123: 180−188. DOI: 10.1016/j.ijrefrig.2020.11.019. [12] Chi, J.X., Yang, Y.P., Wu, Z.H., et al. (2023). Numerical and experimental investigation on a novel heat-driven thermoacoustic refrigerator for room-temperature cooling. Appl. Therm. Eng. 218: 119330. DOI: 10.1016/j.applthermaleng.2022.119330. [13] Xu, Z.Y., Wang, R.Z., and Wang, H.B. (2015). Experimental evaluation of a variable effect LiBr–water absorption chiller designed for high-efficient solar cooling system. Int. J. Refrig. 59: 135−143. DOI: 10.1016/j.ijrefrig.2015.07.019. [14] Dadpour, D., Deymi-Dashtebayaz, M., Hoseini-Modaghegh, A., et al. (2022). Proposing a new method for waste heat recovery from the internal combustion engine for the double-effect direct-fired absorption chiller. Appl. Therm. Eng. 216: 119114. DOI: 10.1016/j.applthermaleng.2022.119114. [15] Bi, T.J., Wu, Z., Chen, W., et al. (2022). Numerical and experimental research on a high-power 4-stage looped travelling-wave thermoacoustic electric generator. Energy 239: 122131. DOI: 10.1016/j.energy.2021.122131. [16] Gedeon, D. (1995). Sage: Object-oriented software for cryocooler design. Cryocoolers 8 pp: 281-292. Springer. DOI: 10.1007/978-1-4757-9888-3_28. [17] Gedeon, D. (2014). Sage User’s Guide: Stirling, Pulse-Tube and Low-T Cooler Model Classes. Gedeon Associates. https://www.sageofathens.com/Documents/SageStlxHyperlinked.pdf. [18] Langdon-Arms, S.B. (2017). Feasibility study of a heat-powered liquid piston Stirling cooler, Auckland University of Technology. https://hdl.handle.net/10292/10620. [19] Backhaus, S., and Swift, G.W. (2000). A thermoacoustic-Stirling heat engine: Detailed study. J. Acoust. Soc. Am. 107: 3148−3166. DOI: 10.1121/1.429343. [20] Swift, G.W. (2017). Thermoacoustics: A unifying perspective for some engines and refrigerators. Springer. DOI: 10.1007/978-3-319-66933-5. [21] Xiao, L., Luo, K.Q., Luo, E.C., et al. (2023). A Summary: Dynamic and thermodynamic analysis of thermoacoustic and Stirling systems based on time-domain acoustic-electrical analogy. Appl. Energy 347: 121377. DOI: 10.1016/j.apenergy.2023.121377. [22] Xiao, L., Luo, K.Q., Chi, J.X., et al. (2023). Study on a direct-coupling thermoacoustic refrigerator using time-domain acoustic-electrical analogy method. Appl. Energy 339: 120972. DOI: 10.1016/j.apenergy.2023.120972. [23] Bejan, A. (2016). Advanced engineering thermodynamics. John Wiley & Sons. DOI: 10.1002/9781119245964. [24] Xiao, L., Luo, K.Q., Wu, Z.H., et al. (2024). An efficient and eco-friendly heat-driven thermoacoustic refrigerator with bypass configuration. Appl. Phys. Lett. 124: 023902. DOI: 10.1063/5.0181579. [25] Xiao, L., Chi, J.X., Luo, K.Q., et al. (2024). A highly efficient eco-friendly heat-driven thermoacoustic refrigerator using nitrogen and water. Energy Convers. Manage. 304: 118251. DOI: 10.1016/j.enconman.2024.118251. [26] Xiao, L., Luo, K.Q., Zhao, D., et al. (2024). A highly efficient heat-driven thermoacoustic cooling system: Detailed study. Energy 293: 130610. DOI: 10.1016/j.energy.2024.130610. [27] Gedeon, D. (1997). DC gas flows in Stirling and pulse tube cryocoolers. Cryocoolers 9 pp: 385-392. Springer. DOI: 10.1007/978-1-4615-5869-9_45. [28] Wang, C., Thummes, G., and Heiden, C. (1998). Effects of DC gas flow on performance of two-stage 4 K pulse tube coolers. Cryogenics 38: 689−695. DOI: 10.1016/S0011-2275(98)00044-7. [29] Gusev, V., Job, S., Bailliet, H., et al. (2000). Acoustic streaming in annular thermoacoustic prime-movers. J. Acoust. Soc. Am. 108: 934−945. DOI: 10.1121/1.1287023. [30] Chauhan, P.R., Kaushik, S.C., and Tyagi, S.K. (2022) Current status and technological advancements in adsorption refrigeration systems: A review. Renew. Sustain. Energy Rev. 154: 111808. DOI: 10.1016/j.rser.2021.111808. [31] Sharafian, A., and Bahrami, M. (2014) Assessment of adsorber bed designs in waste-heat driven adsorption cooling systems for vehicle air conditioning and refrigeration. Renew. Sustain. Energy Rev. 30: 440-451. DOI: 10.1016/j.rser.2013.10.031. -
ABOUT THIS ARTICLE
Cite this article:
Xiao L., Luo K., Wu. Z., et al., (2024). Sustainable heat-driven sound cooler with super-high efficiency. The Innovation Energy 1(2): 100027. https://doi.org/10.59717/j.xinn-energy.2024.100027
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(5)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Xiao L., Luo K., Wu. Z., et al., (2024). Sustainable heat-driven sound cooler with super-high efficiency. The Innovation Energy 1(2): 100027. https://doi.org/10.59717/j.xinn-energy.2024.100027
Format
Content
-
Figure 1.
(A) Diagram of the traditional direct-coupling HDTR. (B) Diagram of the novel HDTR with bypass configuration.
-
Figure 2.

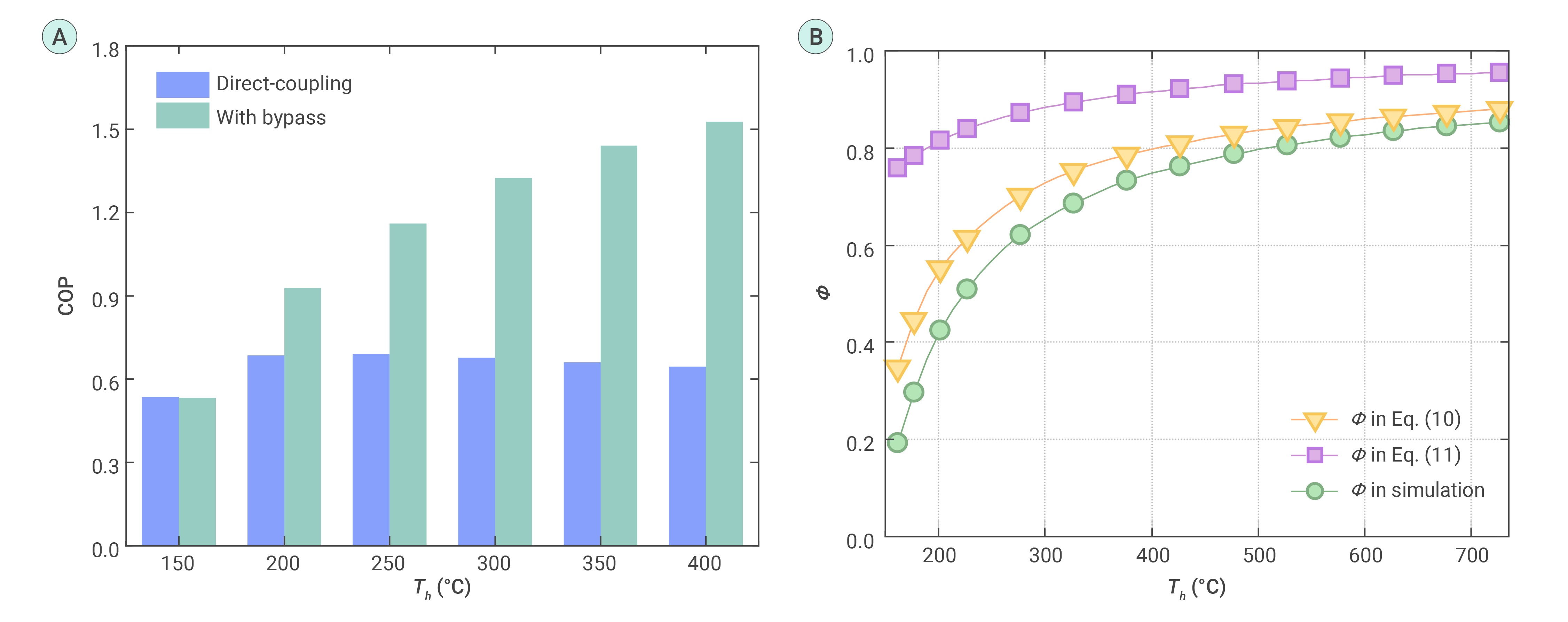

(A) COP comparison between the proposed novel HDTR and the direct-coupling HDTR without bypass (simulation results). (B) Theoretical and simulated results of bypass proportion
