Porosity-tunable composite aerogels enabled by homogeneous phase change coating for photothermal energy conversion and storage
-

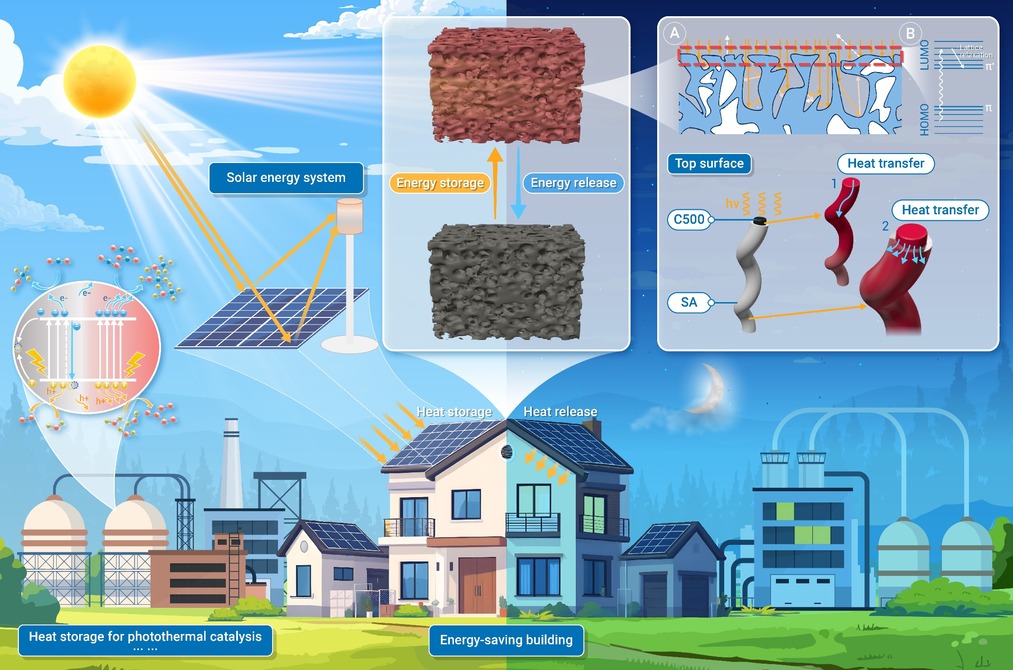

GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
A method was developed to control PCM loading and aerogel porosity for precise coating impregnation.
Aerogel nanopores' nanoconfinement effect stabilizes metastable crystalline phases, resisting thermal fluctuations.
PCCA50 shows excellent photothermal conversion with 90% absorption and 86 °C surface temperature under 1 sun.
PCCA50 achieves optimized photothermal storage with 182.1 J g−1 melting enthalpy and 0.112 W m−1 K−1 thermal conductivity.
-
-
ABSTRACT
Three-dimensional porous matrices loaded with phase change materials (PCMs) offer significant potential for photothermal energy conversion and storage. However, the composite materials prepared via vacuum impregnation suffer from low thermal conductivity. A novel phase change composite aerogel (PCCA) material is designed that simultaneously exhibits excellent thermal insulation and efficient photothermal energy conversion and storage, by leveraging the inherently low thermal conductivity of both porous materials and PCMs. PCCA constructed using biomass-derived templates demonstrates outstanding photothermal performance, achieving surface temperatures as high as 86 °C under 1 sun. A quantitative uniform coating impregnation method is developed based on the unique solid-liquid phase transition of stearic acid/ethanol mixture, which facilitates the quantitative regulation of porosity when loaded with stearic acid. PCCA50 achieves a porosity of 50%, a melting enthalpy of 182.1 J g-1, a crystallization enthalpy of 174.5 J g-1, and a thermal conductivity of 0.112 W m-1 K-1, contributing to remarkable thermal insulation and energy storage capacity. Moreover, the nanoconfined space in PCCA provides kinetic constraints for the loading of stearic acid, leading to the coexistence of sub-stable and bulk-stable polymorphs. This enables PCCA to effectively resist temperature fluctuations across a broader photothermal temperature range. -
-
REFERENCES
[1] Wang Z., Tong Z., Ye Q., et al. (2017). Dynamic tuning of optical absorbers for accelerated solar-thermal energy storage. Nat. Commun. 8:1478. DOI:10.1038/s41467-017-01618-w [2] Dalvi V. H., Panse S. V. and Joshi J. B. (2015). Solar thermal technologies as a bridge from fossil fuels to renewables. Nat. Climate Change 5:1007−1013. DOI:10.1038/nclimate2717 [3] Pornrungroj C., Mohamad Annuar A. B., Wang Q., et al. (2023). Hybrid photothermal–photocatalyst sheets for solar-driven overall water splitting coupled to water purification. Nat. Water 1:952−960. DOI:10.1038/s44221-023-00139-9 [4] Hou M., Jiang Z., Sun W., et al. (2024). Efficient photothermal anti-/deicing enabled by 3D Cu2-xS encapsulated phase change materials mixed superhydrophobic coatings. Adv. Mater. 36:2310312. DOI:https://doi.org/10.1002/adma.202310312. [5] Liu M., Qian R., Yang Y., et al. (2024). Modification of phase change materials for electric-thermal, photo-thermal, and magnetic-thermal conversions: A comprehensive review. Adv. Funct. Mater. 34:2400038. DOI:https://doi.org/10.1002/adfm.202400038. [6] Zhao S., Yuan A., Xu H., et al. (2022). Elevating the photothermal conversion efficiency of phase-change materials simultaneously toward solar energy storage, self-healing, and recyclability. ACS Appl. Mater. Inter. 14:29213−29222. DOI:10.1021/acsami.2c05302 [7] Zhang H., Wang L., Xi S., et al. (2021). 3D porous copper foam-based shape-stabilized composite phase change materials for high photothermal conversion, thermal conductivity and storage. Renew. Energy 175:307-317. DOI:https://doi.org/10.1016/j.renene.2021.05.019. [8] Xu G., Zhang H., Xu F., et al. (2024). Poly-dopamine coated-cellulose/chitosan hybrid carbon aerogel composite phase change materials with efficient photothermal conversion and storage. J. Energy Storage 101:113978. DOI:https://doi.org/10.1016/j.est.2024.113978. [9] Zhang Z., Huang S., Wei P., et al. (2024). Carbon-intercalated halloysite-based aerogel efficiently encapsulating phase change materials with excellent photothermal conversion and energy storage. Chem. Eng. J. 498:155279. DOI:https://doi.org/10.1016/j.cej.2024.155279. [10] Noureen L., Wang Q., Ismail P. M., et al. (2024). Multifunctional aerogel with antibiofouling properties for efficient solar steam generation and seawater desalination. Nano Today 54:102130. DOI:https://doi.org/10.1016/j.nantod.2023.102130. [11] Nong Y., Ren Y., Wang P., et al. (2021). A facile strategy for the preparation of photothermal silk fibroin aerogels with antibacterial and oil-water separation abilities. J. Colloid Inter. Sci. 603:518-529. DOI:https://doi.org/10.1016/j.jcis.2021.06.134. [12] Liu S., Quan B., Yang Y., et al. (2023). Shape stable phase change composites based on MXene/biomass-derived aerogel for solar–thermal energy conversion and storage. J. Energy Storage 67:107592. DOI:https://doi.org/10.1016/j.est.2023.107592. [13] Bai Z., Zhang H., Zhu H., et al. (2023). PVA/sodium alginate multi-network aerogel fibers, incorporated with PEG and ZnO, exhibit enhanced temperature regulation, antibacterial, thermal conductivity, and thermal stability. Carbohydrate Poly. 317:121037. DOI:https://doi.org/10.1016/j.carbpol.2023.121037. [14] Zhang X., Sun K., Liu H., et al. (2024). Flexible insulating phase change composite film with improved thermal conductivity for wearable thermal management. Nano Energy 121:109256. DOI:https://doi.org/10.1016/j.nanoen.2024.109256. [15] Xue F., Jin X.Z., Wang W.Y., et al. (2020). Melamine foam and cellulose nanofiber co-mediated assembly of graphene nanoplatelets to construct three-dimensional networks towards advanced phase change materials. Nanoscale 12:4005−4017. DOI:10.1039/C9NR10696K [16] Wang J., Zhang T., Shen Y., et al. (2022). Polyethylene glycol / nanofibrous kevlar aerogel composite: Fabrication, confinement effect, thermal energy storage and insulation performance. Mater. Today Commun. 32:104011. DOI:https://doi.org/10.1016/j.mtcomm.2022.104011. [17] Guo Z., Lin F., Qiao J., et al. (2023). A modified kapok fiber based phase change composite for highly-efficient solar-thermal conversion. Nano Energy 108:108205. DOI:https://doi.org/10.1016/j.nanoen.2023.108205. [18] Li S., Zhang N., Chen H., et al. (2025). Encapsulating phase change materials into melamine formaldehyde sponge assembled with polypyrrole modified halloysite nanotube for effective solar-thermal energy storage and solar-thermal-electric conversion. J. Colloid Inter. Sci. 682:423-435. DOI:https://doi.org/10.1016/j.jcis.2024.11.226. [19] Wang B., Li G., Xu L., et al. (2020). Nanoporous boron nitride aerogel film and its smart composite with phase change materials. ACS Nano 14:16590−16599. DOI:10.1021/acsnano.0c05931 [20] Wei X., Xue F., Qi X.D., et al. (2019). Photo- and electro-responsive phase change materials based on highly anisotropic microcrystalline cellulose/graphene nanoplatelet structure. Appl. Energy 236:70-80. DOI:https://doi.org/10.1016/j.apenergy.2018.11.091. [21] Wei Y., Li J., Sun F., et al. (2018). Leakage-proof phase change composites supported by biomass carbon aerogels from succulents. Green Chem. 20:1858−1865. DOI:10.1039/C7GC03595K [22] Wang C., Liang W., Yang Y., et al. (2020). Biomass carbon aerogels based shape-stable phase change composites with high light-to-thermal efficiency for energy storage. Renew. Energy 153:182-192. DOI:https://doi.org/10.1016/j.renene.2020.02.008. [23] Zhang Q., Chen B., Wu K., et al. (2021). PEG-filled kapok fiber/sodium alginate aerogel loaded phase change composite material with high thermal conductivity and excellent shape stability. Comp. A Appl. Sci. Manufact. 143:106279. DOI:https://doi.org/10.1016/j.compositesa.2021.106279. [24] Yang J., Qi G.Q., Liu Y., et al. (2016). Hybrid graphene aerogels/phase change material composites: Thermal conductivity, shape-stabilization and light-to-thermal energy storage. Carbon 100:693-702. DOI:https://doi.org/10.1016/j.carbon.2016.01.063. [25] Yang J., Qi G.Q., Bao R.Y., et al. (2018). Hybridizing graphene aerogel into three-dimensional graphene foam for high-performance composite phase change materials. Energy Storage Mater. 13:88-95. DOI:https://doi.org/10.1016/j.ensm.2017.12.028. [26] Wu S., Li T., Tong Z., et al. (2019). High-performance thermally conductive phase change composites by large-size oriented graphite sheets for scalable thermal energy harvesting. Adv. Mater. 31:1905099. DOI:https://doi.org/10.1002/adma.201905099. [27] Li T., Wu M., Wu S., et al. (2021). Highly conductive phase change composites enabled by vertically-aligned reticulated graphite nanoplatelets for high-temperature solar photo/electro-thermal energy conversion, harvesting and storage. Nano Energy 89:106338. DOI:https://doi.org/10.1016/j.nanoen.2021.106338. [28] Wang Y., Cui Y., Shao Z., et al. (2020). Multifunctional polyimide aerogel textile inspired by polar bear hair for thermoregulation in extreme environments. Chem. Eng. J. 390:124623. DOI:https://doi.org/10.1016/j.cej.2020.124623. [29] Hamilton B. D., Ha J.M., Hillmyer M.A., et al. (2012). Manipulating crystal growth and polymorphism by confinement in nanoscale crystallization chambers. Account. Chem. Res. 45:414−423. DOI:10.1021/ar200147v [30] Coasne B., Galarneau A., Pellenq R. J. M., et al. (2013). Adsorption, intrusion and freezing in porous silica: the view from the nanoscale. Chem. Soc. Rev. 42:4141−4171. DOI:10.1039/C2CS35384A [31] Yang Z., Li B., Wang J.J., et al. (2022). Designing conductive-bridge phase-change memory to enable ultralow programming power. Adv. Sci. 9:2103478. DOI:https://doi.org/10.1002/advs.202103478. [32] Yuan P., Zhang P., Liang T., et al. (2019). Effects of surface functionalization on thermal and mechanical properties of graphene/polyethylene glycol composite phase change materials. Appl. Surf. Sci. 485:402-412. DOI:https://doi.org/10.1016/j.apsusc.2019.04.011. [33] Ilie A., Crampin S., Karlsson L., et al. (2012). Repair and stabilization in confined nanoscale systems — inorganic nanowires within single-walled carbon nanotubes. Nano Res. 5:833−844. DOI:10.1007/s12274-012-0267-5 [34] Meldrum F. C. and O'Shaughnessy C. (2020). Crystallization in confinement. Adv. Mater. 32:2001068. DOI:https://doi.org/10.1002/adma.202001068. [35] Yang K., Venkataraman M., Karpiskova J., et al. (2021). Structural analysis of embedding polyethylene glycol in silica aerogel. Micropor. Mesopor. Mater. 310:110636. DOI:https://doi.org/10.1016/j.micromeso.2020.110636. -
ABOUT THIS ARTICLE
Cite this article:
Ding S., Hu H., Zhu L., et al. (2025). Porosity-tunable composite aerogels enabled by homogeneous phase change coating for photothermal energy conversion and storage. The Innovation Energy 2:100109. https://doi.org/10.59717/j.xinn-energy.2025.100109
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(7)
Tables(1)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Ding S., Hu H., Zhu L., et al. (2025). Porosity-tunable composite aerogels enabled by homogeneous phase change coating for photothermal energy conversion and storage. The Innovation Energy 2:100109. https://doi.org/10.59717/j.xinn-energy.2025.100109
Format
Content
-

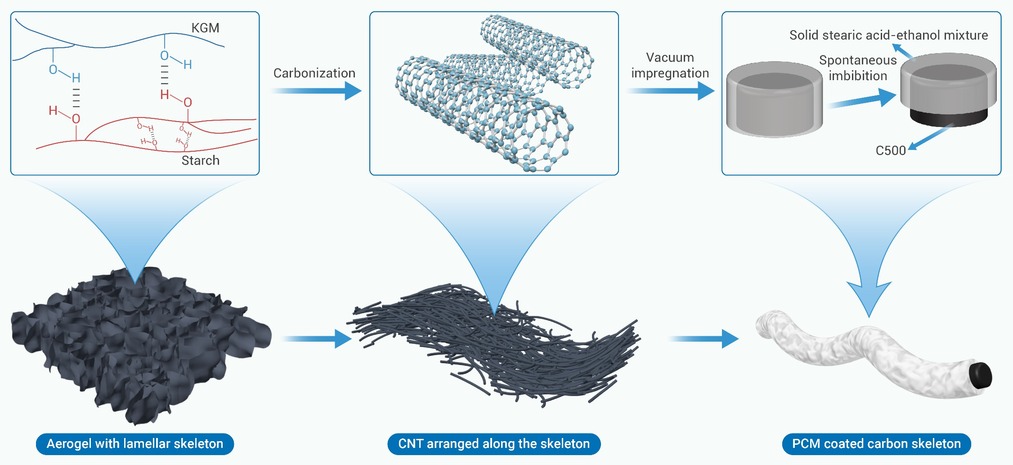

Figure 1.
Schematic illustration of the preparation procedure for PCCA.
-
Figure 2.
(A) Morphological transformations during the preparation of PCCA. (B) SEM micrographs of the solid stearic acid/ethanol complexes coated on C500. (C) X-ray diffraction patterns of C500 before and after impregnation with stearic acid. (D) FTIR spectra of stearic acid in various states. (E) FTIR spectra of C500 before and after impregnation with stearic acid.
-
Figure 3.
SEM images of (A) PCCA10, (B) PCCA30, (C) PCCA50, and (D) PCCA70. (E) EDS maps of PCCA50.
-

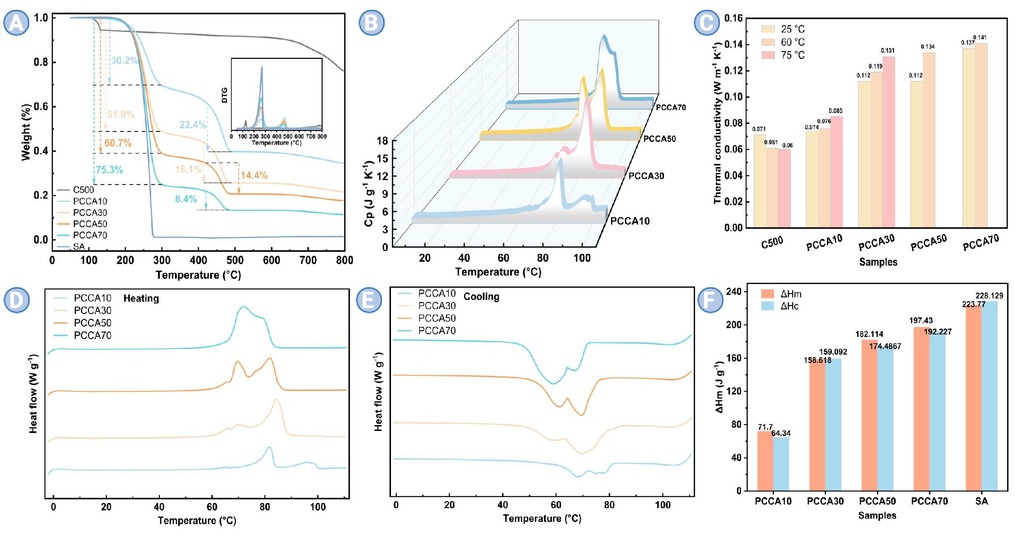

Figure 4.
(A) Thermogravimetric plot. (B) Specific heat capacity of the samples as a function of temperature. (C) Thermal conductivity of the samples at 25, 60 and 75 °C. DSC curves for (D) the heating process and (E) the crystallization process. (F) The enthalpy of melting and the enthalpy of crystallization.
-

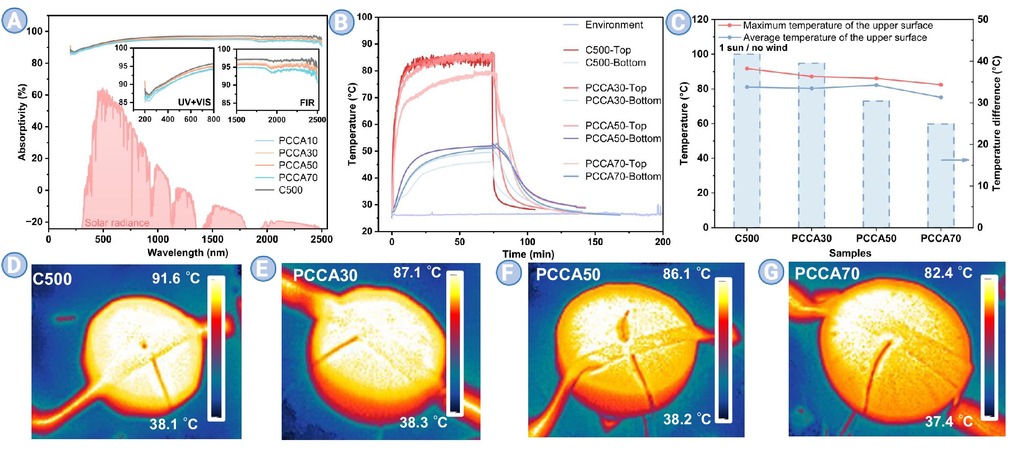

Figure 5.
(A) UV-vis spectra of the samples. (B) Temperature variation curves of the illuminated and the bottom surfaces under 1 sun. (C) The maximum and average temperatures of the illuminated surface, as well as the temperature difference between the top and bottom surfaces. Infrared thermal images of (D) C500, PCCA30, PCCA50, and PCCA70 under 1 sun.
-
Figure 6.
Temperature states of PCCA50 under different illumination conditions.
-
Figure 7.
Temperature profiles of the samples under natural sunlight.
