C-P Diagram: A new thermodynamic analysis tool characterizing thermal cycles through geometric symmetry
-

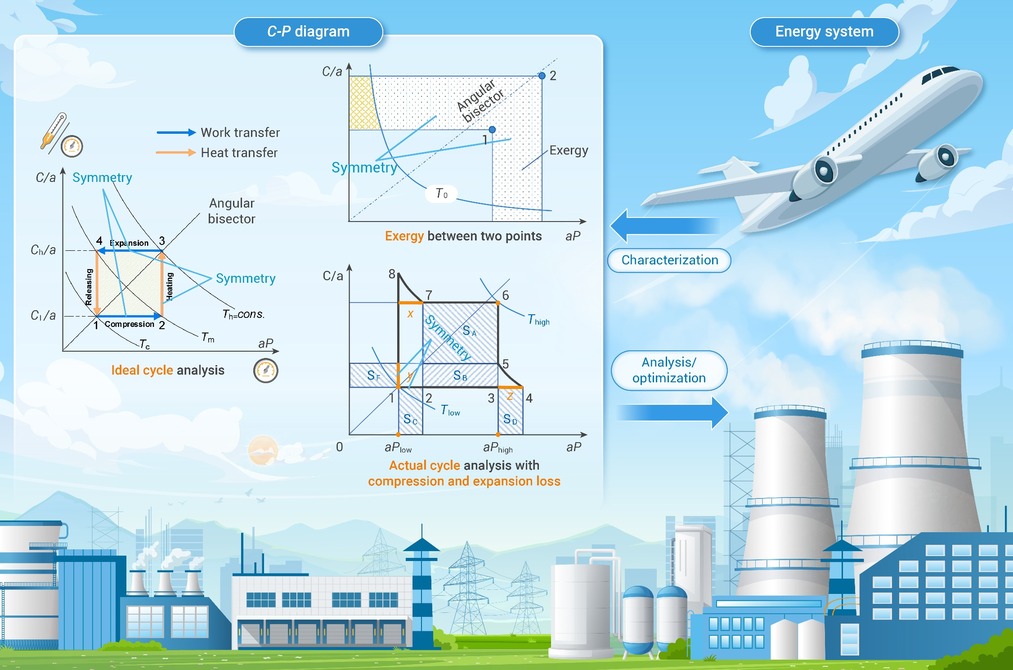

GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
The C-P diagram incorporates symmetry for deeper insights into thermodynamic cycles.
It enhances analysis by using symmetric geometric shapes for intuitive understanding.
The diagram offers a holistic system perspective, unlike traditional isolated component analysis.
The C-P diagram enables quantitative analysis of exergy, efficiency, and power output in thermodynamics.
-
-
ABSTRACT
Traditional thermodynamic cycle analysis diagrams primarily emphasize basic thermodynamic parameters or energy flows, often overlooking the inherent symmetry of these cycles, a fundamental yet underutilized characteristic. This paper introduces a newly proposed C-P diagram, a graphical method that incorporates symmetry into thermodynamic cycle analysis and offers several key advantages. First, it provides a deeper insights into the underlying principles of thermodynamic cycles. Second, the use of symmetric geometric shapes enhances the analytical intuitiveness. Third, it shifts the analytical focus from isolated components to a holistic system-wide perspective. While conceptually akin to entropy-based methods for analyzing heat-to-work conversion cycles, the C-P diagram is broadly applicable, not only to heat transfer processes but also to work-producing cycles. This paper explores a wide range of applications of the C-P diagram, such as the analysis of exergy, irreversible process, finite-time thermodynamics, and multi-process coupling. Unlike traditional diagrams, which are often qualitative, the C-P diagram enables quantitative and concise graphical analysis. By visualizing exergy through symmetrical and simplified forms, it helps clarify complex phenomena such as the asymmetry of the maximum power output of real Brayton cycles. Moreover, the C-P diagram allows for the calculation of maximum power output and efficiency under finite heat transfer conditions using geometric relationships, and reveals interdependencies among component losses in coupled processes. As a supplement to conventional diagrams and also a novel framework rooted in symmetry and geometry, the C-P diagram represents a significant advancement in the analysis and optimization of thermodynamic systems.-
Keywords:
- C-P diagram /
- exergy /
- system analysis and optimization /
- Brayton cycle /
- irreversible factors.
-
-
REFERENCES
[1] Masrur Hossain M., Afnan Ahmed N., Abid Shahriyar M., et al. (2021). Analysis and optimization of a modified Kalina cycle system for low-grade heat utilization. Energy Conver. Manag. X 12:100121. DOI:10.1016/j.ecmx.2021.100121 [2] Bari S. A., Fuad M., Labib K. F., et al. (2024). Enhancement of thermal power plant performance through solar-assisted feed water heaters: An innovative repowering approach. Energy Conver. Manag. X 22:100550. DOI:10.1016/j.ecmx.2024.100550 [3] Monjurul Ehsan M., Duniam S., Li J., et al. (2020). A comprehensive thermal assessment of dry cooled supercritical CO2 power cycles. Appl. Thermal Eng. 166:114645. DOI:10.1016/j.applthermaleng.2019.114645 [4] Fan J., Hong H., Zhu L., et al. (2017). Thermodynamic evaluation of chemical looping combustion for combined cooling heating and power production driven by coal. Energy Conver. Manag. 135:200−211. DOI:10.1016/j.enconman.2016.12.022 [5] Ishida M. and Jin H. (1994). A new advanced power-generation system using chemical-looping combustion. Energy 19:415−422. DOI:10.1016/0360-5442(94)90120-1 [6] Chen R., Deng S., Zhang J., et al. (2023). Exploring a novel route for low-grade heat harvesting: Electrochemical Brayton cycle. Renew. Sustain. Energy Rev. 183:113475. DOI:10.1016/j.rser.2023.113475 [7] Lee S. W., Yang Y., Lee H.-W., et al. (2014). An electrochemical system for efficiently harvesting low-grade heat energy. Nat. Commun. 5:3942. DOI:10.1038/ncomms4942 [8] Guo H., Xu Y., Chen H., et al. (2016). Thermodynamic characteristics of a novel supercritical compressed air energy storage system. Energy Conver. Manag. 115:167−177. DOI:10.1016/j.enconman.2016.01.051 [9] McTigue J. D., White A. J. and Markides C. N. (2015). Parametric studies and optimisation of pumped thermal electricity storage. Appl. Energy 137:800−811. DOI:10.1016/j.apenergy.2014.08.039 [10] Barbour E. and Pottie D. L. (2021). Adiabatic compressed air energy storage technology. Joule 5:1914−1920. DOI:10.1016/j.joule.2021.07.009 [11] Ma Z., Gifford J., Wang X., et al. (2023). Electric-thermal energy storage using solid particles as storage media. Joule 7:843−848. DOI:10.1016/j.joule.2023.03.016 [12] Khan Y., Naqib-Ul-Islam S. M., Faruque M. W., et al. (2024). Advanced Cascaded Recompression Absorption System Equipped with Ejector and Vapor-Injection Enhanced Vapor Compression Refrigeration System: ANN based Multi-Objective Optimization. Thermal Sci. Eng. Progress 49:102485. DOI:10.1016/j.tsep.2024.102485 [13] Khan T. E., Zaman M., Ehsan M., et al. (2025). Thermal analysis of a main compression intercooling supercritical CO2 cycle cascaded with flash tank enhanced compression-absorption refrigeration cycle. Energy Conver. Manag. X 25:100868. DOI:10.1016/j.ecmx.2024.100868 [14] Jin H. and Ishida M. (1993). Graphical exergy analysis of complex cycles. Energy 18:615−625. DOI:10.1016/0360-5442(93)90040-K [15] Ishida M. (2000). Hierarchical structure of thermodynamics. Appl. Energy 67:221−230. DOI:10.1016/S0306-2619(00)00015-5 [16] Xu S. Z., Wang R. Z. and Wang L. W. (2017). Temperature–heat diagram analysis method for heat recovery physical adsorption refrigeration cycle – Taking multi-stage cycle as an example. Int. J. Refrig. 74:254−268. DOI:10.1016/j.ijrefrig.2016.09.021 [17] Sidyganov V. U., Ametistov E. V. and Kupchikhin P. M. (1991). Thermodynamic analysis of processes in refrigerators using superfluid helium (He II) by means of T − q diagram. Cryogenics 31:1038−1043. DOI:10.1016/0011-2275(91)90125-G [18] Chen R., Deng S., Xu W., et al. (2020). A graphic analysis method of electrochemical systems for low-grade heat harvesting from a perspective of thermodynamic cycles. Energy 191:116547. DOI:10.1016/j.energy.2019.116547 [19] Shi Y. (2022). Deconstruction and reconstruction of heat driven absorption refrigeration and absorption power cycle with 3-D methods. Int. J. Hydro. Energy 47:29568-29578. DOI:https://doi.org/10.1016/j.ijhydene.2022.06.270. [20] Nie X., Xue J., Zhao L., et al. (2024). New insight of thermodynamic cycle in thermoelectric power generation analyses: Literature review and perspectives. Energy 292:130553. DOI:10.1016/j.energy.2024.130553 [21] Guo Z., Zhao T., and Xue T. (2019). Entransy analysis of reversible thermodynamic cycles based on the conservation of entransy equation and its application. Chin. Sci. Bull. 64:1200−1210. DOI:10.1360/n972018-00865 [22] Xu S.-Z., Zhao T., Chen Q., et al. (2022). State functions/quantities in thermodynamics and heat transfer. Fund. Res. 2:101−107. DOI:10.1016/j.fmre.2021.07.001 [23] Chen R., Zhao R., Deng S., et al. (2021). A cycle research methodology for thermo-chemical engines: From ideal cycle to case study. Energy 228:120599. DOI:10.1016/j.energy.2021.120599 [24] Feng X. and Zhu X. X. (1997). Combining pinch and exergy analysis for process modifications. Appl. Thermal Eng. 17:249−261. DOI:10.1016/S1359-4311(96)00035-X [25] Boettner D. D., Benson M. J., Bluman J. E., et al. (2012). Explaining Exergy: A Cycle Approach. ASME 2012 Int. Mechan. Eng. Cong. Expos. [26] Costa V. A. F. (2021). ENERGY-EXERGY diagrams for states and energy and exergy balance equations representation. Energy 218:119506. DOI:10.1016/j.energy.2020.119506 [27] Huang K., Chen R., Xu W., et al. (2025). Novel graphical expression method of thermodynamic process parameters: Methodology and case study. Energy 314:134249. DOI:10.1016/j.energy.2024.134249 [28] Huang K., Huang Z., Chen R., et al. (2025). A preliminary study on graphical method of thermodynamic process parameters under dynamic boundary conditions. Innov. Energy 2:100084. DOI:10.59717/j.xinn-energy.2025.100084 [29] Gao L., Cao T., Hwang Y., et al. (2021). Graph-based configuration optimization for S-CO2 power generation systems. Energy Conver. Manag. 244:114448. DOI:10.1016/j.enconman.2021.114448 [30] Dev N., Kumar R., Saha R. K., et al. (2024). Performance evaluation methodology for gas turbine power plants using graph theory and combinatorics. Int. J. Hydro. Energy 57:1286−1301. DOI:10.1016/j.ijhydene.2024.01.064 [31] Zhang F., Zhang J., You J., et al. (2024). Construction of multi-loop thermodynamic cycles: Methodology and case study. Energy 288:129645. DOI:10.1016/j.energy.2023.129645 [32] Yadav N. K., Khan I. A. and Grover S. (2010). Modeling And Analysis of Simple Open Cycle Gas Turbine Using Graph Networks. ZENODO. 4:337−345. DOI:10.5281/zenodo.1327648 [33] Chen M., Zhao D., Zhao L., et al. (2022). An improved method of intelligence construction for subcritical thermodynamic cycle. Energy Conver. Manag. 254:115256. DOI:10.1016/j.enconman.2022.115256 [34] Cui M., Wang B., Wang C., et al. (2023). GraPHsep: An integrated construction method of vapor compression cycle and heat exchanger network. Energy Conver. Manag. 277:116576. DOI:10.1016/j.enconman.2022.116576 [35] Rozhkov A. (2024). Applying graph theory to find key leverage points in the transition toward urban renewable energy systems. Appl. Energy 361:122854. DOI:10.1016/j.apenergy.2024.122854 [36] Guo H., Xu Y., Li Y., et al. (2023). A symmetry analysis methodology for general energy conversion systems. Commun. Eng. 2:49. DOI:10.1038/s44172-023-00096-x [37] Guo H., Li Y., Xu Y., et al. (2024). Symmetry in thermal cycles and processes. iScience 27:110393. DOI:10.1016/j.isci.2024.110393 [38] Entropy Generation, or Exergy Destruction. (2016). Advanced Engineering Thermodynamics. pp:95-139. DOI:10.1002/9781119245964.ch3 [39] Guo H., Xu Y., Zhu Y., et al. (2022). Thermal-mechanical coefficient analysis of adiabatic compressor and expander in compressed air energy storage systems. Energy 244:122993. DOI:10.1016/j.energy.2021.122993 [40] Curzon F. L. and Ahlborn B. (1975). Efficiency of a Carnot engine at maximum power output. Am. J. Phys. 43:22−24. DOI:10.1119/1.10023 -
ABOUT THIS ARTICLE
Cite this article:
Guo H., Wang H., He W., et al. (2025). C-P Diagram: A new thermodynamic analysis tool characterizing thermal cycles through geometric symmetry. The Innovation Energy 2:100117. https://doi.org/10.59717/j.xinn-energy.2025.100117
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(8)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Guo H., Wang H., He W., et al. (2025). C-P Diagram: A new thermodynamic analysis tool characterizing thermal cycles through geometric symmetry. The Innovation Energy 2:100117. https://doi.org/10.59717/j.xinn-energy.2025.100117
Format
Content
-

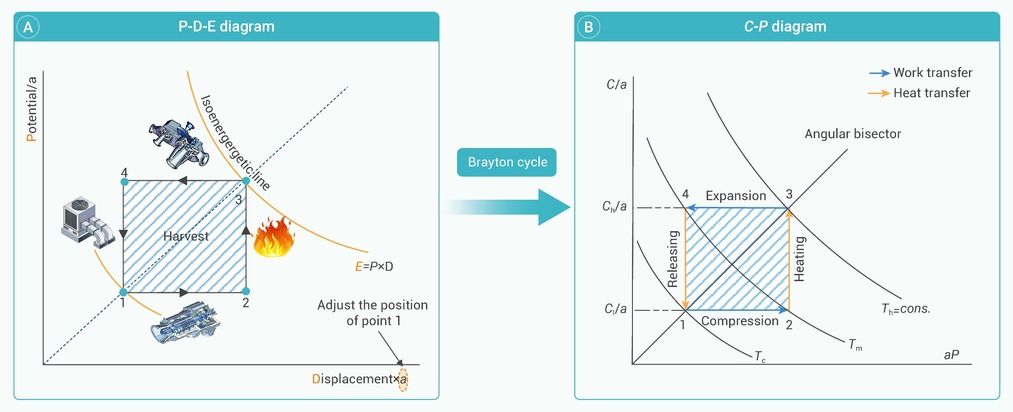

Figure 1.
Potential-displacement-energy (P-D-E) diagram for energy conversion system analysis and C-P diagram.36
-

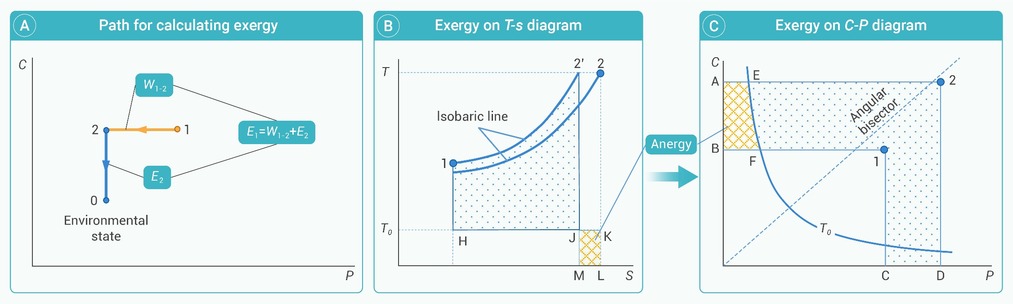

Figure 2.
Presentation of exergy on C-P diagram
-

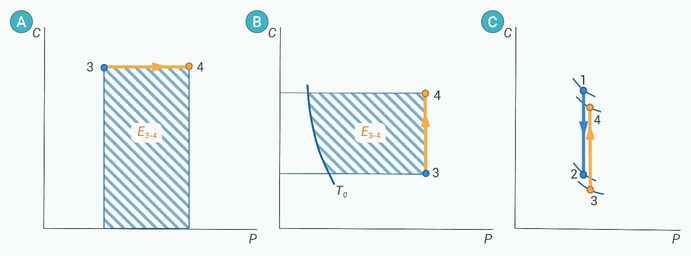

Figure 3.
The exergy change and exchange of typical processes
-

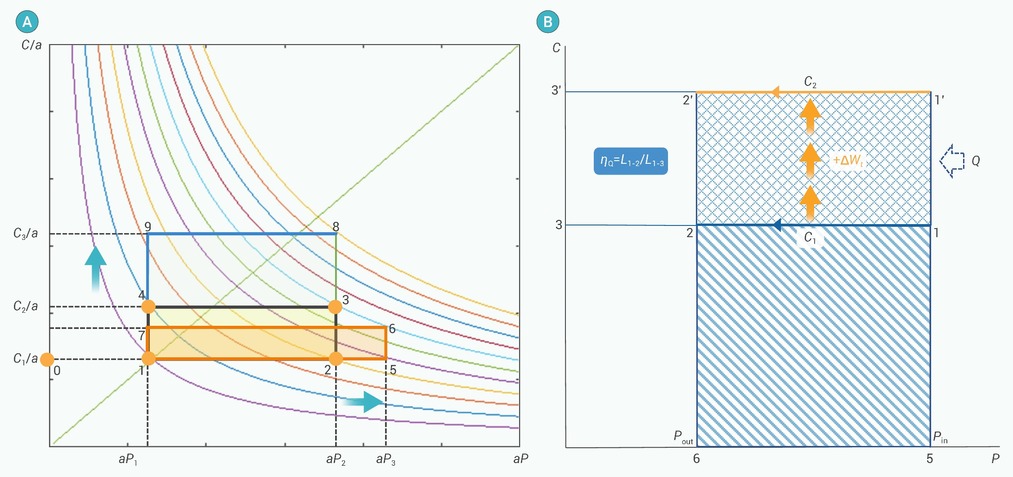

Figure 4.
C-P diagram of Brayton cycles or related processes with different parameters
-

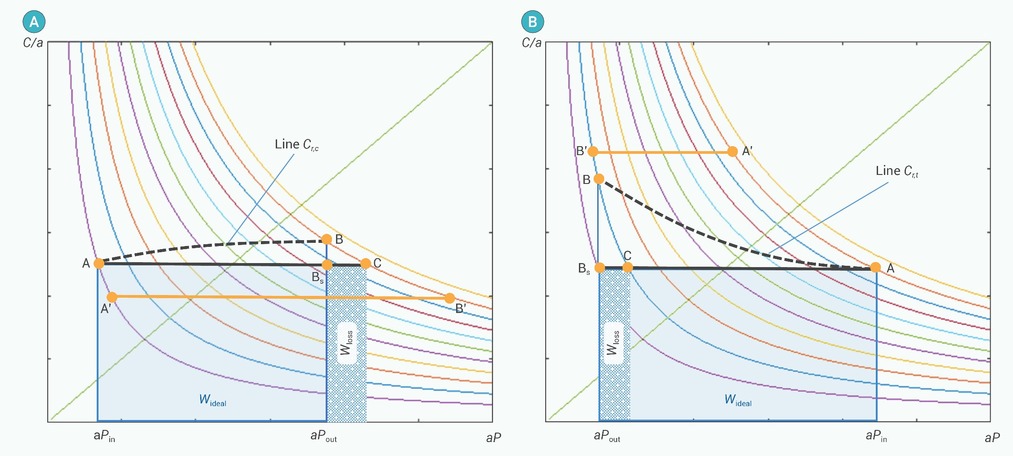

Figure 5.
Analysis of the irreversible compression and expansion processes
-

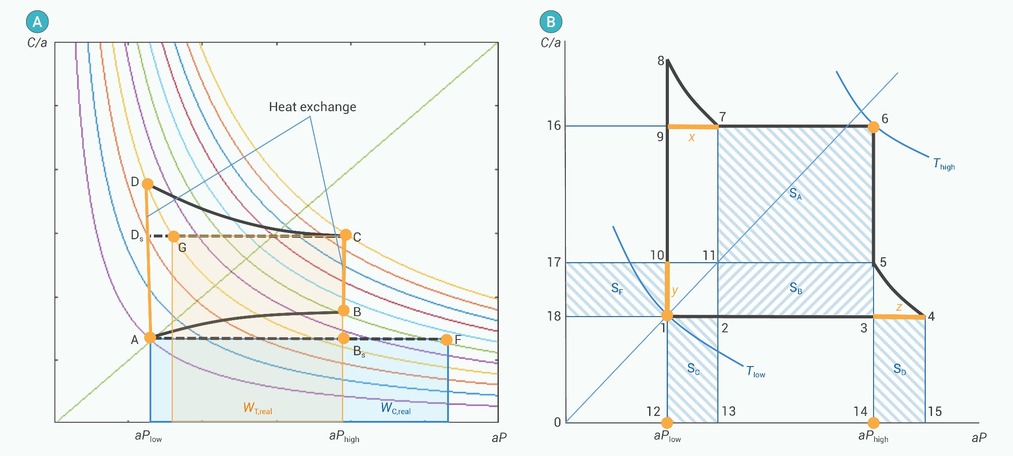

Figure 6.
The analysis of Brayton cycle considering irreversible compression and expansion processes using C-P diagram
-

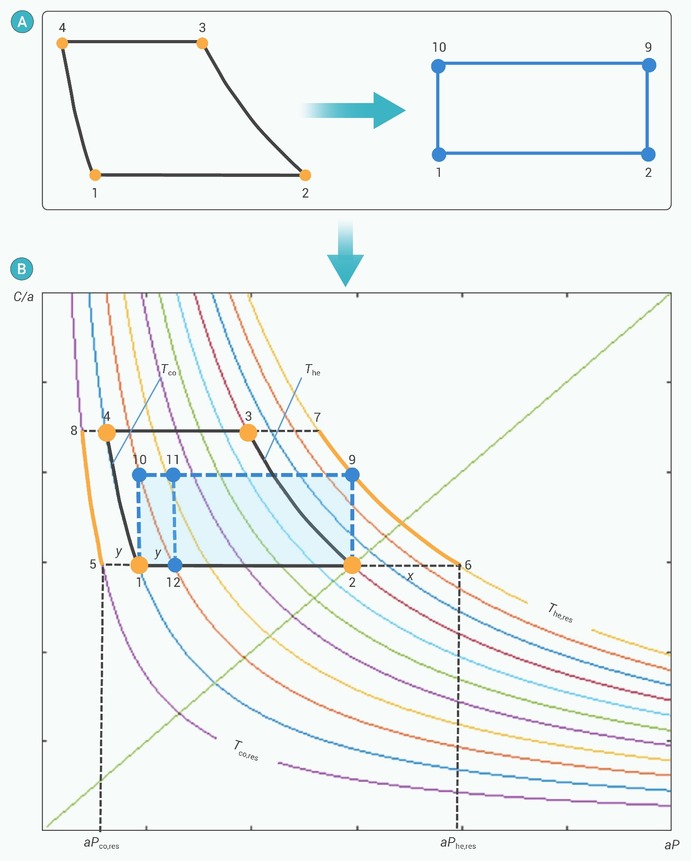

Figure 7.
Analysis of optimal power output of thermal cycle under limited heat transfer rate by C-P diagram
-

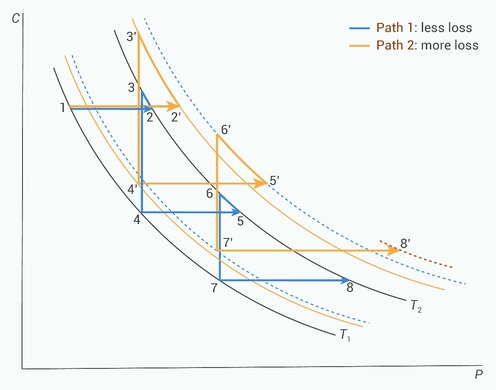

Figure 8.
Multi-stage compression and cooling process with different paths on C-P diagram.
