A sustainable cellulose bioplastic film with extraordinary mechanical performance regenerated by vapor-induced phase separation

Hong Zhao; Gui-Chun Hu; Brett Abraham; Qing Wang; Na Zhong; Fei Shen; Li-Hui Xu; Qun Yang; Piotr Batys; Qing-Shi Tu; Wojciech Płaziński; Xian-wei Cheng; Zai-Sheng Cai; Jin-Guang Hu

doi:10.59717/j.xinn-mater.2025.100133

The Innovation Materials > 2025 Vol. 3 > No. 2 > 100133

Next Article Previous Article

REPORT Open Access

Cite PDF

A sustainable cellulose bioplastic film with extraordinary mechanical performance regenerated by vapor-induced phase separation

1.
Department of Chemical & Petroleum Engineering, University of Calgary Schulich School of Engineering, Calgary, Alberta T2N 1N4, Canada
2.
School of Textiles and Fashion, Shanghai University of Engineering Science, Shanghai, 201620, China
3.
Key Lab of Science & Technology of Eco-textile, Ministry of Education, College of Chemistry and Chemical Engineering, Donghua University, Shanghai 201620, China
4.
Institute of Ecological and Environmental Sciences, Sichuan Agricultural University, Chengdu 611130, China
5.
Jerzy Haber Institute of Catalysis and Surface Chemistry, Polish Academy of Sciences, Niezapominajek 8, PL-30239 Krakow, Poland
6.
Department of Wood Science, Faculty of Forestry, The University of British Columbia, Vancouver, BC V6T 1Z4, Canada
7.
Department of Biopharmacy, Faculty of Pharmacy, Medical University of Lublin, Chodźki 4A, PL-20093 Lublin, Poland
8.
Jiangsu Engineering Research Center of Textile Dyeing and Printing for Energy Conservation, Discharge Reduction and Cleaner Production, Soochow University, Suzhou 215123, China

Show all affliationsShow less

More Information

Corresponding authors: wojtek_plazinski@o2.pl (W.P.); zshcai@dhu.edu.cn (Z.C.); jinguang.hu@ucalgary.ca (J.H.)
Received Date: October 15, 2024

Accepted Date: May 06, 2025

Published Online: May 12, 2025

The Innovation Materials 3(2), https://doi.org/10.59717/j.xinn-mater.2025.100133 | Cite this article

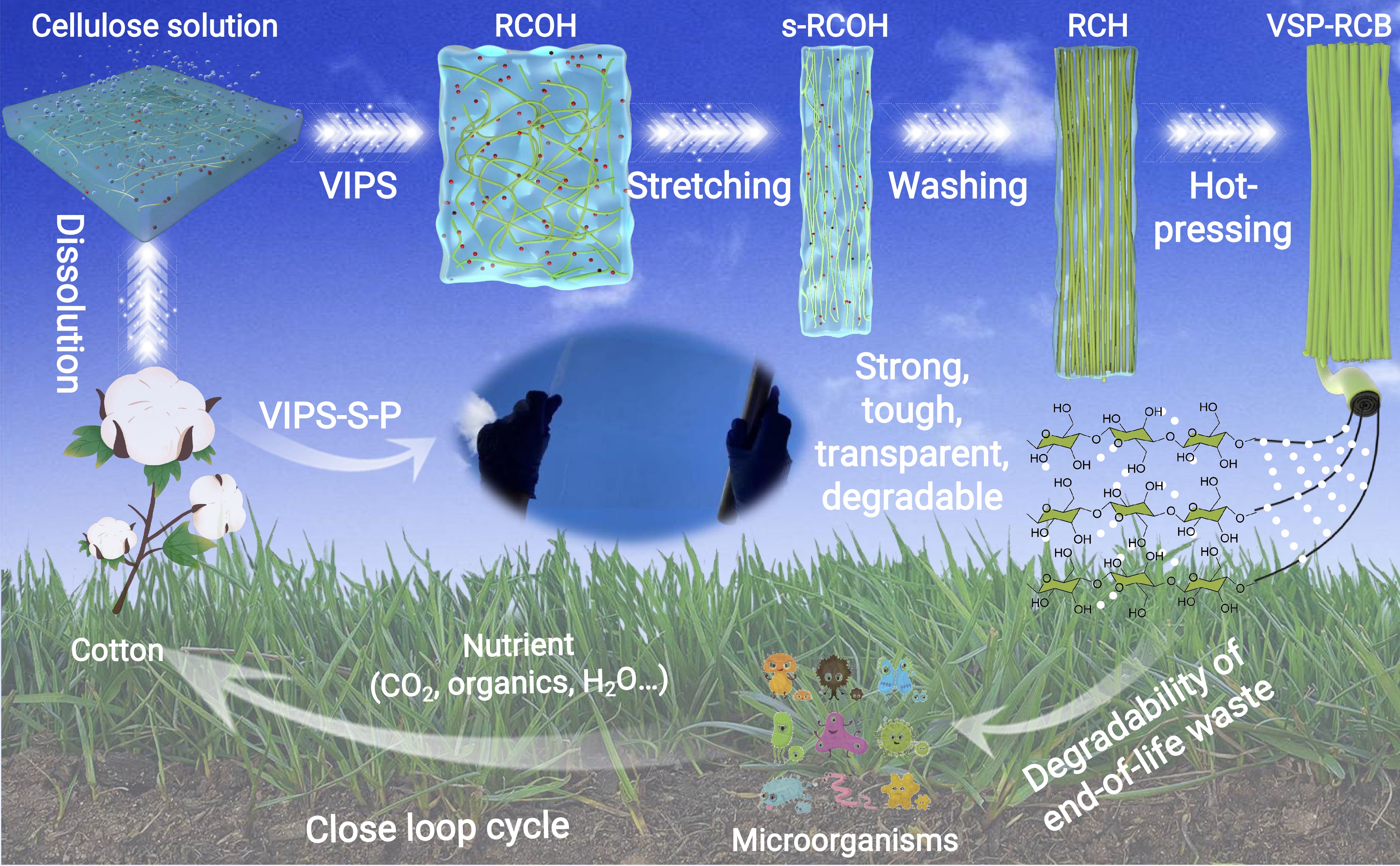

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT

DownLoad: Full size image

PUBLIC SUMMARY

PUBLIC SUMMARY
1. A streamlined Vapor-Induced Phase Separation-stretching-hot-pressing (VIPS-S-P) is firstly proposed.

  A regenerated cellulose bioplastic (VSP-RCB) is produced by VIPS-S-P.

  The supramolecular assembly mechanisms of cellulosic network are revealed.

  This VSP-RCB showcases exceptional mechanical strength in wet and dry conditions.

ABSTRACT

ABSTRACT

We urgently need eco-friendly alternatives to non-biodegradable petrochemical plastics. Our study introduces a streamlined Vapor-Induced Phase Separation (VIPS) process, followed by stretching and hot-pressing (VIPS-S-P), to produce a regenerated cellulose bioplastic (VSP-RCB). This bioplastic showcases exceptional mechanical strength in wet and dry conditions, water stability, transparency, biocompatibility, biodegradability, and thermal stability. The scalable VIPS process involves cellulose dissolved in DMAc-LiCl coagulating with atmospheric water vapor to form a transparent organohydrogel (RCOH). The RCOH is aligned through stretching and densified via hot-pressing, creating a fully recyclable product from diverse cellulose sources. Molecular dynamics simulations and life-cycle assessment (LCA) explain RCOH generation mechanisms and environmental impacts. The VIPS-S-P strategy provides a sustainable approach to producing robust, transparent, water-stable, and biodegradable cellulose-based bioplastics, offering a compelling alternative to petrochemical plastics.

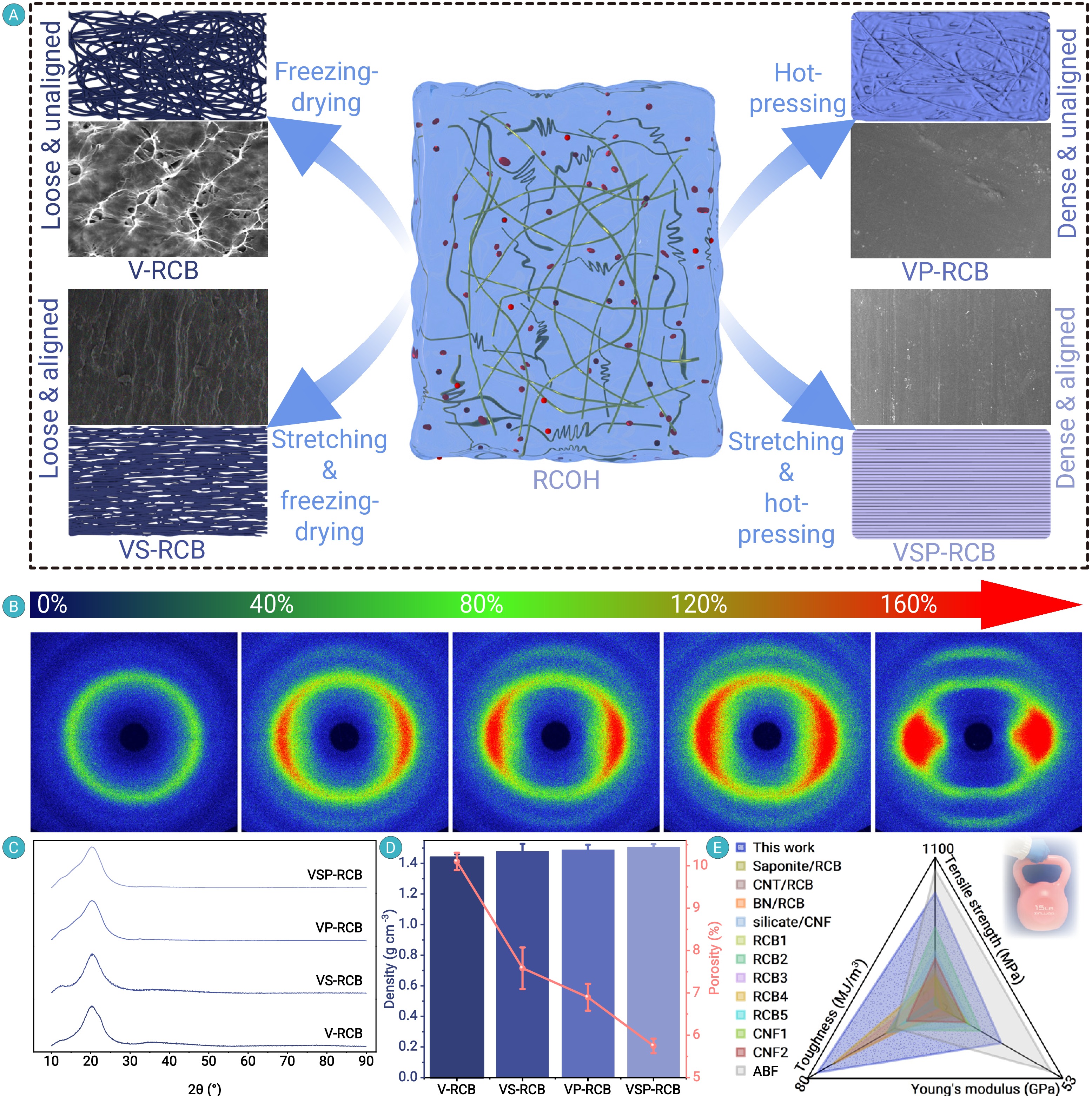

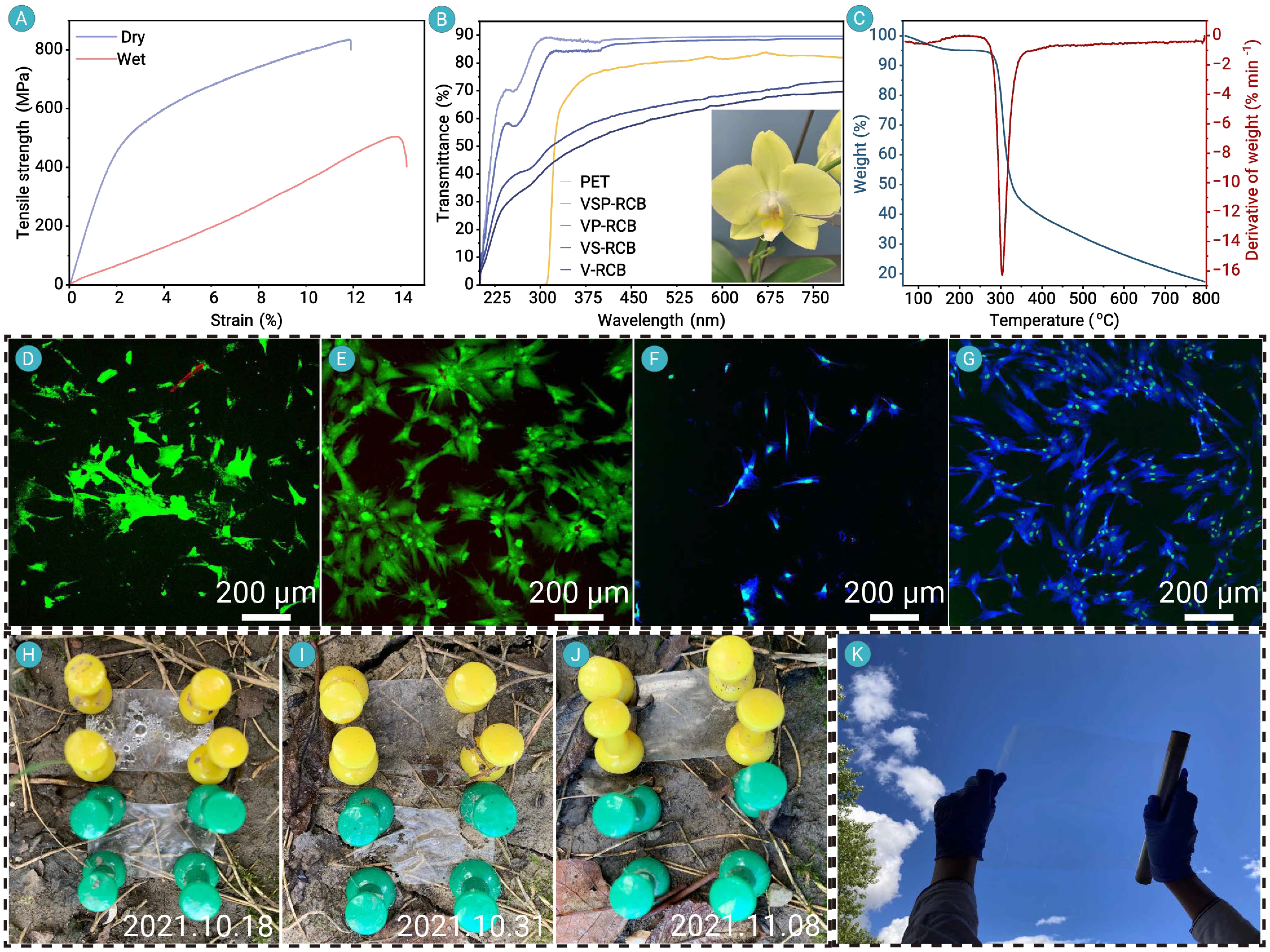

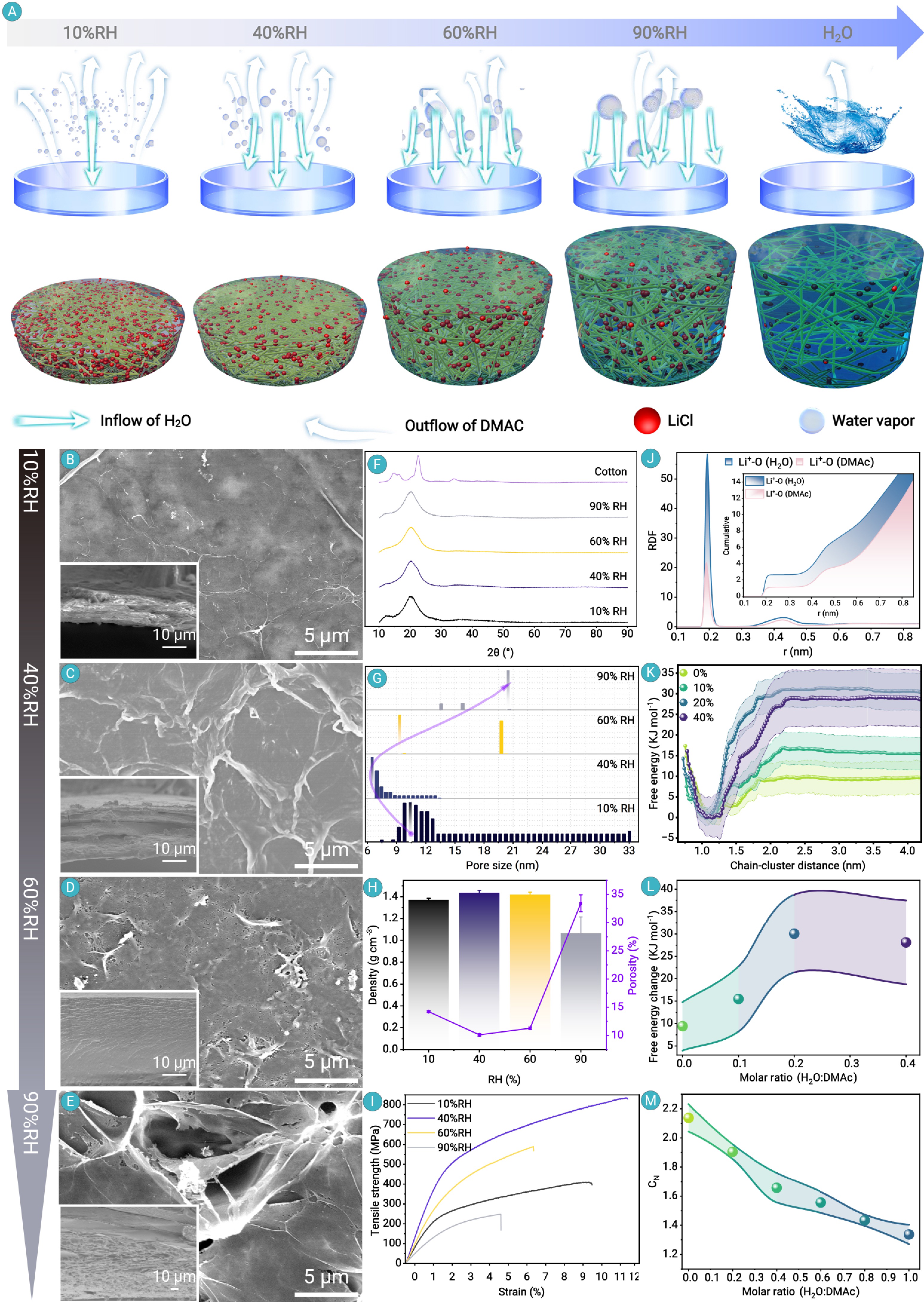

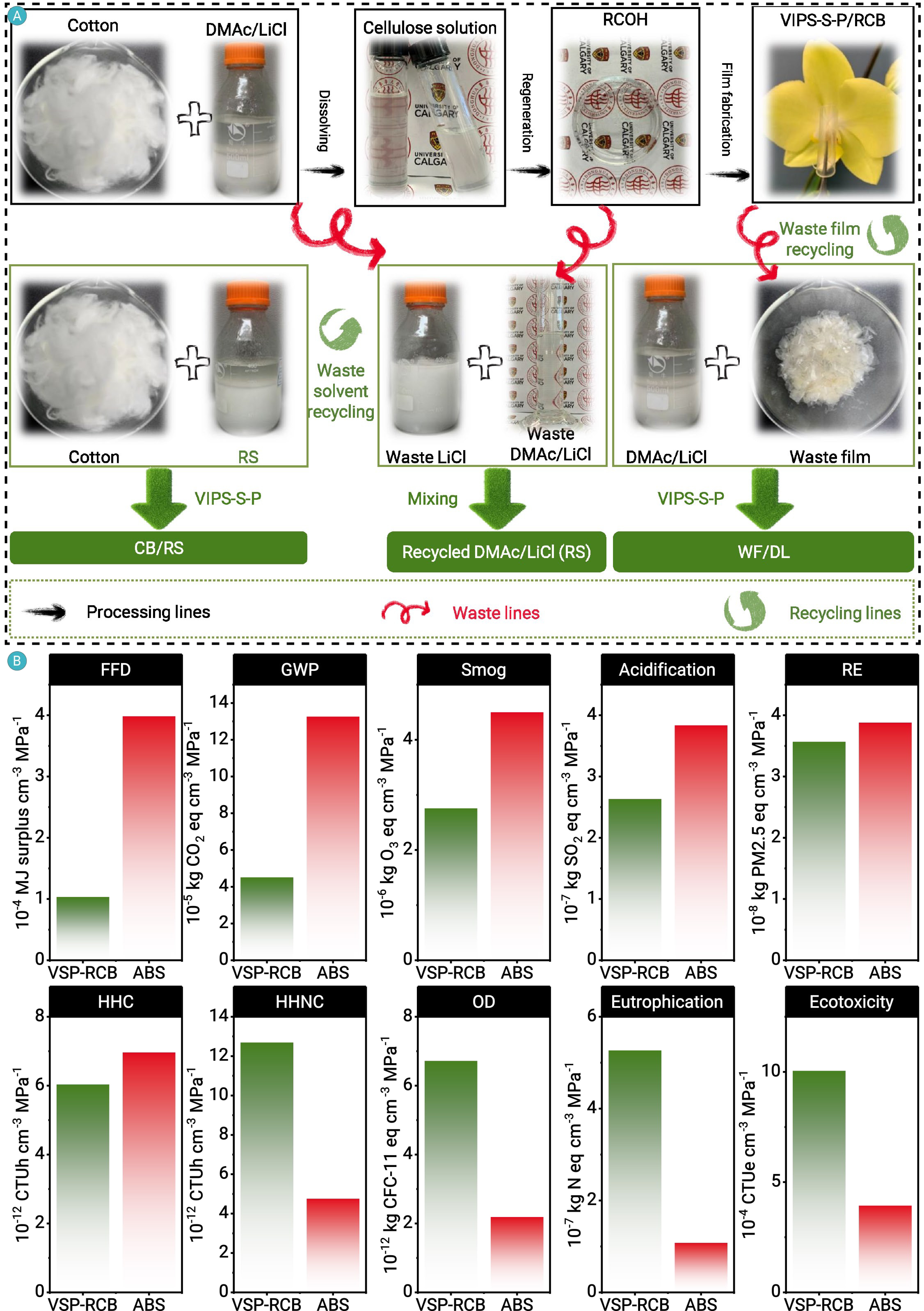

FullText(HTML)

REFERENCES

[1]	Brahney J., Hallerud M., Heim E., et al. (2020). Plastic rain in protected areas of the united states. Science 368:1257−1260. DOI:10.1126/science.aaz5819 View in Article CrossRef Google Scholar
[2]	Li T., Chen C., Brozena A.H., et al. (2021). Developing fibrillated cellulose as a sustainable technological material. Nature 590:47−56. DOI:10.1038/s41586-020-03167-7 View in Article CrossRef Google Scholar
[3]	Wang Z., Xu C., Qi L., et al. (2024). Chemical modification of polysaccharides for sustainable bioplastics. Trends Chem. 6:314−331. DOI:10.1016/j.trechm.2024.04.009 View in Article CrossRef Google Scholar
[4]	Zeng Z., Yu L., Yang S., et al. (2024). Tuning water-cellulose interactions via copper-coordinated mercerization for hydro-actuated, shape-memory cellulosic hydroplastics. Matter 7:3036−3052. DOI:10.1016/j.matt.2024.04.033 View in Article CrossRef Google Scholar
[5]	Zhang L., Chen L., Wang S., et al. (2024). Cellulose nanofiber-mediated manifold dynamic synergy enabling adhesive and photo-detachable hydrogel for self-powered E-skin. Nat. Commun. 15:3859. DOI:10.1038/s41467-024-47986-y View in Article CrossRef Google Scholar
[6]	Habibi Y. (2014). Key advances in the chemical modification of nanocelluloses. Chem. Soc. Rev. 43:1519−1542. DOI:10.1039/C3CS60204D View in Article CrossRef Google Scholar
[7]	Ray U., Zhu S., Pang Z., et al. (2021). Mechanics design in cellulose-enabled high-performance functional materials. Adv. Mater. 33:2002504. DOI:10.1002/adma.202002504 View in Article CrossRef Google Scholar
[8]	Menut P., Pochat-Bohatier C., Deratani A., et al. (2002). Structure formation of poly (ether-imide) films using non-solvent vapor induced phase separation: Relationship between mass transfer and relative humidity. Desalination 145:11−16. DOI:10.1016/S0011-9164(02)00323-5 View in Article CrossRef Google Scholar
[9]	Mittal N., Jansson R., Widhe M., et al. (2017). Ultrastrong and bioactive nanostructured bio-based composites. ACS Nano 11:5148−5159. DOI:10.1021/acsnano.7b02305 View in Article CrossRef Google Scholar
[10]	Li K., Clarkson C.M., Wang L., et al. (2021). Alignment of cellulose nanofibers: Harnessing nanoscale properties to macroscale benefits. ACS Nano 15:3646−3673. DOI:10.1021/acsnano.0c07613 View in Article CrossRef Google Scholar
[11]	Lee K., Jeon Y., Kim D., et al. (2021). Double-crosslinked cellulose nanofiber based bioplastic films for practical applications. Carbohydr. Polym. 260:117817. DOI:10.1016/j.carbpol.2021.117817 View in Article CrossRef Google Scholar
[12]	Wang C., Zhao J., Liu L., et al. (2021). Transformation of fibrous membranes from opaque to transparent under mechanical pressing. Engineering 19:84−92. DOI:10.1016/j.eng.2021.02.018 View in Article CrossRef Google Scholar
[13]	Wang S., Li T., Chen C., et al. (2018). Transparent, anisotropic biofilm with aligned bacterial cellulose nanofibers. Adv. Funct. Mater. 28:1707491. DOI:10.1002/adfm.201707491 View in Article CrossRef Google Scholar
[14]	Benitez A.J., Torres-Rendon J., Poutanen M., et al. (2013). Humidity and multiscale structure govern mechanical properties and deformation modes in films of native cellulose nanofibrils. Biomacromolecules 14:4497−4506. DOI:10.1021/bm401451m View in Article CrossRef Google Scholar
[15]	Yuan H., Wu J., Wang D., et al. (2021). Ultra-high-strength composite films prepared from nmmo solutions of bamboo-derived dissolving pulp and chitosan. Ind. Crops Prod. 170:113747. DOI:10.1016/j.indcrop.2021.113747 View in Article CrossRef Google Scholar
[16]	Su H., Wang B., Sun Z., et al. (2022). High-tensile regenerated cellulose films enabled by unexpected enhancement of cellulose dissolution in cryogenic aqueous phosphoric acid. Carbohydr. Polym. 277:118878. DOI:10.1016/j.carbpol.2021.118878 View in Article CrossRef Google Scholar
[17]	Shu L., Zhang X.F., Wang Z., et al. (2022). Structure reorganization of cellulose hydrogel by green solvent exchange for potential plastic replacement. Carbohydr. Polym. 275:118695. DOI:10.1016/j.carbpol.2021.118695 View in Article CrossRef Google Scholar
[18]	Gao X., Li M., Zhang H., et al. (2021). Fabrication of regenerated cellulose films by dmac dissolution using parenchyma cells via low-temperature pulping from yunnan-endemic bamboos. Ind. Crops Prod. 160:113116. DOI:10.1016/j.indcrop.2020.113116 View in Article CrossRef Google Scholar
[19]	Zhang Q., Chen Y., Wei P., et al. (2021). Extremely strong and tough chitosan films mediated by unique hydrated chitosan crystal structures. Mater. Today 51:27−38. DOI:10.1016/j.mattod.2021.10.030 View in Article CrossRef Google Scholar
[20]	Hu L., Zhong Y., Wu S., et al. (2021). Biocompatible and biodegradable super-toughness regenerated cellulose via water molecule-assisted molding. Chem. Eng. J. 417:129229. DOI:10.1016/j.cej.2021.129229 View in Article CrossRef Google Scholar
[21]	Tu H., Zhu M., Duan B., et al. (2020). Recent progress in high-strength and robust regenerated cellulose materials. Adv. Mater. 33:2000682. DOI:10.1002/adma.202000682 View in Article CrossRef Google Scholar
[22]	Ismail N., Venault A., Mikkola J.P., et al. (2020). Investigating the potential of membranes formed by the vapor induced phase separation process. J. Membr. Sci. 597:117601. DOI:10.1016/j.memsci.2019.117601 View in Article CrossRef Google Scholar
[23]	Zhao Q., Xie R., Luo F., et al. (2018). Preparation of high strength poly(vinylidene fluoride) porous membranes with cellular structure via vapor-induced phase separation. J. Membr. Sci. 549:151−164. DOI:10.1016/j.memsci.2017.10.068 View in Article CrossRef Google Scholar
[24]	Chae Park H., Po Kim Y., Yong Kim H., et al. (1999). Membrane formation by water vapor induced phase inversion. J. Membr. Sci. 156:169−178. DOI:10.1016/S0376-7388(98)00359-7 View in Article CrossRef Google Scholar
[25]	Wang Q., Nnanna P.C., Shen F., et al. (2021). Full utilization of sweet sorghum for bacterial cellulose production: A concept of material crop. Ind. Crops Prod. 162:113256. DOI:10.1016/j.indcrop.2021.113256 View in Article CrossRef Google Scholar
[26]	International A. (2013). Standard test method for intrinsic viscosity of cellulose. View in Article Google Scholar
[27]	Ye D., Lei X., Li T., et al. (2019). Ultrahigh tough, super clear, and highly anisotropic nanofiber-structured regenerated cellulose films. ACS Nano 13:4843−4853. DOI:10.1021/acsnano.9b02081 View in Article CrossRef Google Scholar
[28]	Kotov N., Raus V. and Dybal J. (2018). Intermolecular interactions in N,N-dimethylacetamide without and with LiCl studied by infrared spectroscopy and quantum chemical model calculations. J. Phys. Chem. B. 122:8921−8930. DOI:10.1021/acs.jpcb.8b05569 View in Article CrossRef Google Scholar
[29]	Alexowsky C., Bojarska M. and Ulbricht M. (2019). Porous poly(vinylidene fluoride) membranes with tailored properties by fast and scalable non-solvent vapor induced phase separation. J. Membr. Sci. 577:69−78. DOI:10.1016/j.memsci.2019.01.033 View in Article CrossRef Google Scholar
[30]	Ripoche A., Menut P., Dupuy C., et al. (2002). Poly(ether imide) membrnae formation by water vapour induced phase inversion. Macromol. Symp. 188:37−48. DOI:3.0.CO;2-4">10.1002/1521-3900(200211)188:1<37::AID-MASY37>3.0.CO;2-4 View in Article CrossRef Google Scholar
[31]	Zhang C., Liu R., Xiang J., et al. (2014). Dissolution mechanism of cellulose in N, N-dimethylacetamide/lithium chloride: Revisiting through molecular interactions. J. Phys. Chem. B. 118:9507−9514. DOI:10.1021/jp506013c View in Article CrossRef Google Scholar
[32]	Wang S., Yu L., Jia X., et al. (2024). Cellulose nanofibril-guided orienting response of supramolecular network enables superstretchable, robust, and antifatigue hydrogel. Innov. Mater. 2:100092. DOI:10.59717/j.xinn-mater.2024.100092 View in Article CrossRef Google Scholar
[33]	Moon R.J., Martini A., Nairn J., et al. (2011). Cellulose nanomaterials review: Structure, properties and nanocomposites. Chem. Soc. Rev. 40:3941−3994. DOI:10.1039/C0CS00108B View in Article CrossRef Google Scholar
[34]	Sugiyama J., Vuong R. and Chanzy H. (1991). Electron diffraction study on the two crystalline phases occurring in native cellulose from an algal cell wall. Macromolecules 24:4168−4175. DOI:10.1021/ma00014a033 View in Article CrossRef Google Scholar
[35]	Nogi M., Iwamoto S., Nakagaito A.N., et al. (2009). Optically transparent nanofiber paper. Adv. Mater. 21:1595−1598. DOI:10.1002/adma.200803174 View in Article CrossRef Google Scholar
[36]	Hou Y., Guan Q.F., Xia J., et al. (2021). Strengthening and toughening hierarchical nanocellulose via humidity-mediated interface. ACS Nano 15:1310−1320. DOI:10.1021/acsnano.0c08574 View in Article CrossRef Google Scholar
[37]	Ritchie R.O. (2011). The conflicts between strength and toughness. Nat. Mater. 10:817−822. DOI:10.1038/nmat3115 View in Article CrossRef Google Scholar
[38]	Evans A.G. (1990). Perspective on the development of high-toughness ceramics. J. Am. Ceram. Soc. 73:187−206. DOI:10.1111/j.1151-2916.1990.tb06493.x View in Article CrossRef Google Scholar
[39]	Launey M.E. and Ritchie R.O. (2009). On the fracture toughness of advanced materials. Adv. Mater. 21:2103−2110. DOI:10.1002/adma.200803322 View in Article CrossRef Google Scholar
[40]	Cheng J., Chen Z., Zhou J., et al. (2018). Influences of layer thickness on the compatibility and physical properties of polycarbonate/polystyrene multilayered film via nanolayer coextrusion. Appl. Surf. Sci. 440:946−954. DOI:10.1016/j.apsusc.2018.01.254 View in Article CrossRef Google Scholar
[41]	Zhang X., Liu W., Liu W., et al. (2020). High performance pva/lignin nanocomposite films with excellent water vapor barrier and UV-shielding properties. Int. J. Biol. Macromol. 142:551−558. DOI:10.1016/j.ijbiomac.2019.09.129 View in Article CrossRef Google Scholar
[42]	Ku H., Wang H., Pattarachaiyakoop N., et al. (2011). A review on the tensile properties of natural fiber reinforced polymer composites. Compos. Part B: Eng. 42:856−873. DOI:10.1016/j.compositesb.2011.01.010 View in Article CrossRef Google Scholar
[43]	Yamane C., Aoyagi T., Ago M., et al. (2006). Two different surface properties of regenerated cellulose due to structural anisotropy. Polym. J. (Tokyo, Jpn.) 38:819−826. DOI:10.1295/polymj.PJ2005187 View in Article CrossRef Google Scholar
[44]	Ma Q., Wang K., Mohawk D., et al. (2021). Strong, ductile, transparent, water-resistant cellulose nanofibril composite films via UV-induced inter-cross-linked networks. ACS Sustainable Chem. Eng. 9:10749−10760. DOI:10.1021/acssuschemeng.1c01222 View in Article CrossRef Google Scholar
[45]	Wei P., Huang J., Lu Y., et al. (2019). Unique stress whitening and high-toughness double-cross-linked cellulose films. ACS Sustainable Chem. Eng. 7:1707−1717. DOI:10.1021/acssuschemeng.8b05485 View in Article CrossRef Google Scholar
[46]	Liu S., Zeng J., Tao D., et al. (2010). Microfiltration performance of regenerated cellulose membrane prepared at low temperature for wastewater treatment. Cellulose 17:1159−1169. DOI:10.1007/s10570-010-9450-6 View in Article CrossRef Google Scholar
[47]	Martins R., Barquinha P., Pereira L., et al. (2008). Write-erase and read paper memory transistor. Appl. Phys. Lett. 93:203501. DOI:10.1063/1.3030873 View in Article CrossRef Google Scholar
[48]	Zhu H., Xiao Z., Liu D., et al. (2013). Biodegradable transparent substrates for flexible organic-light-emitting diodes. Energy Environ. Sci. 6:2105−2111. DOI:10.1039/C3EE40492G View in Article CrossRef Google Scholar
[49]	Nogi M., Komoda N., Otsuka K., et al. (2013). Foldable nanopaper antennas for origami electronics. Nanoscale 5:4395−4399. DOI:10.1039/C3NR00231D View in Article CrossRef Google Scholar
[50]	Zhu H., Fang Z., Preston C., et al. (2014). Transparent paper: Fabrications, properties, and device applications. Energy Environ. Sci. 7:269−287. DOI:10.1039/C3EE43024C View in Article CrossRef Google Scholar

Cited by

ABOUT THIS ARTICLE

Cite this article:

Zhao H., Hu G-C., Abraham B., et al. (2025). A sustainable cellulose bioplastic film with extraordinary mechanical performance regenerated by vapor-induced phase separation. The Innovation Materials 3:100133. https://doi.org/10.59717/j.xinn-mater.2025.100133

Zhao H., Hu G-C., Abraham B., et al. (2025). A sustainable cellulose bioplastic film with extraordinary mechanical performance regenerated by vapor-induced phase separation. The Innovation Materials 3:100133. https://doi.org/10.59717/j.xinn-mater.2025.100133

Welcome!

To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.

Standard PDF

Extended PDF

Figures(4)

Article Metrics

Article views(2837) PDF downloads(860)

A sustainable cellulose bioplastic film with extraordinary mechanical performance regenerated by vapor-induced phase separation

GRAPHICAL ABSTRACT

PUBLIC SUMMARY

ABSTRACT

REFERENCES

ABOUT THIS ARTICLE

Cite this article:

Welcome!

Share

Article Metrics

Relative Articles

Cited by

Catalog

{{newsColumn.name}}

Journal links

{{newsColumn.name}}

Stay connected

A sustainable cellulose bioplastic film with extraordinary mechanical performance regenerated by vapor-induced phase separation

GRAPHICAL ABSTRACT

PUBLIC SUMMARY

ABSTRACT

REFERENCES

ABOUT THIS ARTICLE

Cite this article:

Welcome!

Share

Article Metrics

Relative Articles

Cited by

Catalog

Export File

Citation

Format

Content

{{newsColumn.name}}

Journal links

{{newsColumn.name}}

Stay connected
