A highly-stable multi-responsive bimorph liquid crystal actuator with chemically soldered heterogenous interface

Hong Chen; Xin Yao; Hai-Li Qin; Yu-Jie Cai; Huai-Ping Cong; Shu-Hong Yu

doi:10.59717/j.xinn-mater.2025.100144

The Innovation Materials > 2025 Vol. 3 > No. 3 > 100144

Next Article Previous Article

REPORT Open Access

Cite PDF

A highly-stable multi-responsive bimorph liquid crystal actuator with chemically soldered heterogenous interface

1.
School of Chemistry and Chemical Engineering, Hefei University of Technology, Hefei 230009, China
2.
Department of Chemistry, College of Science, Southern University of Science and Technology, Shenzhen 518055, China
3.
Department of Chemistry, University of Science and Technology of China, Hefei 230009, China

More Information

Corresponding authors: hpcong@hfut.edu.cn (H.C.); yush@sustech.edu.cn (S.Y.)
Received Date: December 30, 2024

Accepted Date: May 29, 2025

Published Online: June 13, 2025

The Innovation Materials 3(3), https://doi.org/10.59717/j.xinn-mater.2025.100144 | Cite this article

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT

DownLoad: Full size image

PUBLIC SUMMARY

PUBLIC SUMMARY

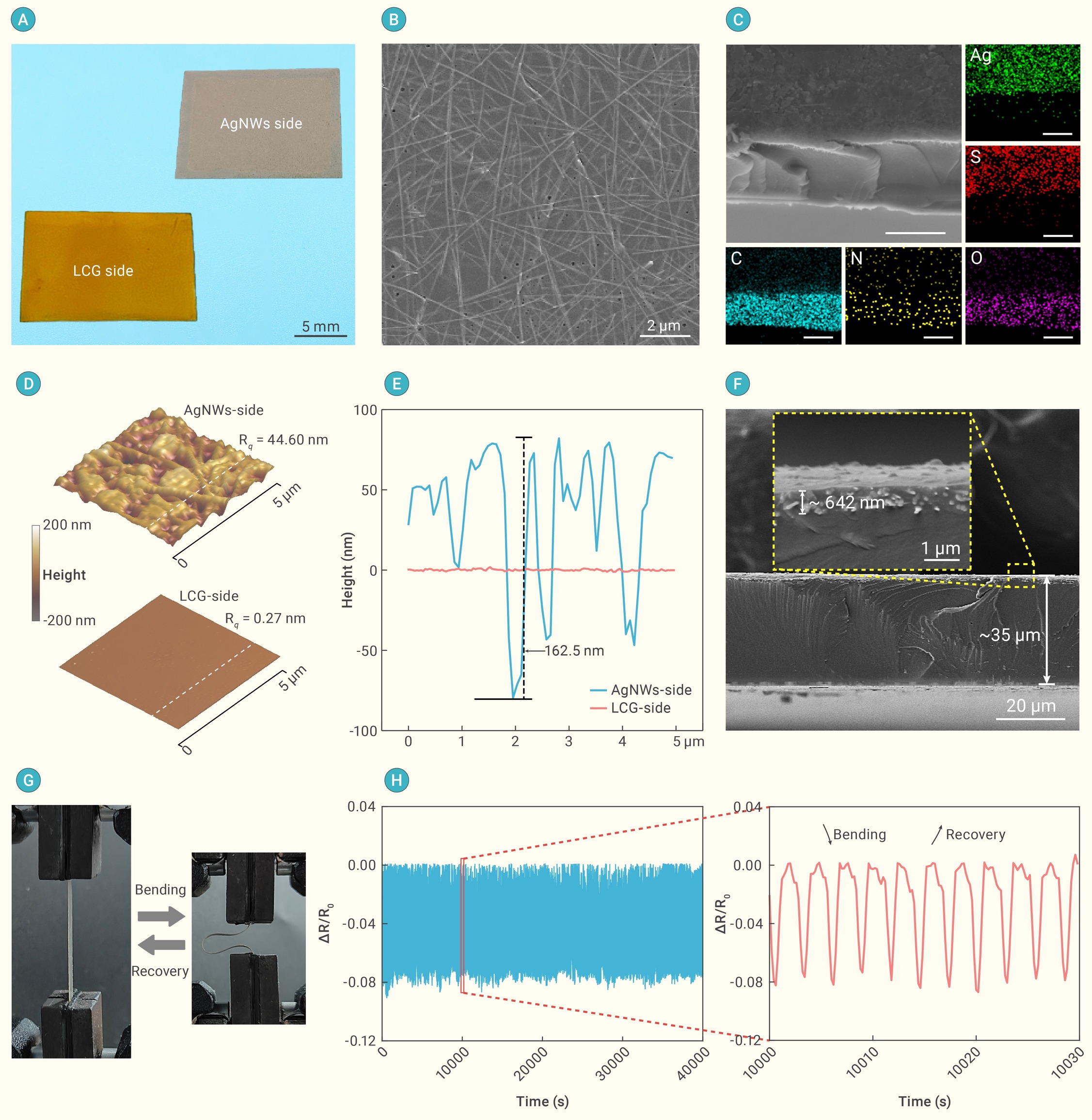

1. The high-performance bimorph actuator is fabricated by an interfacial polymerization strengthening strategy.

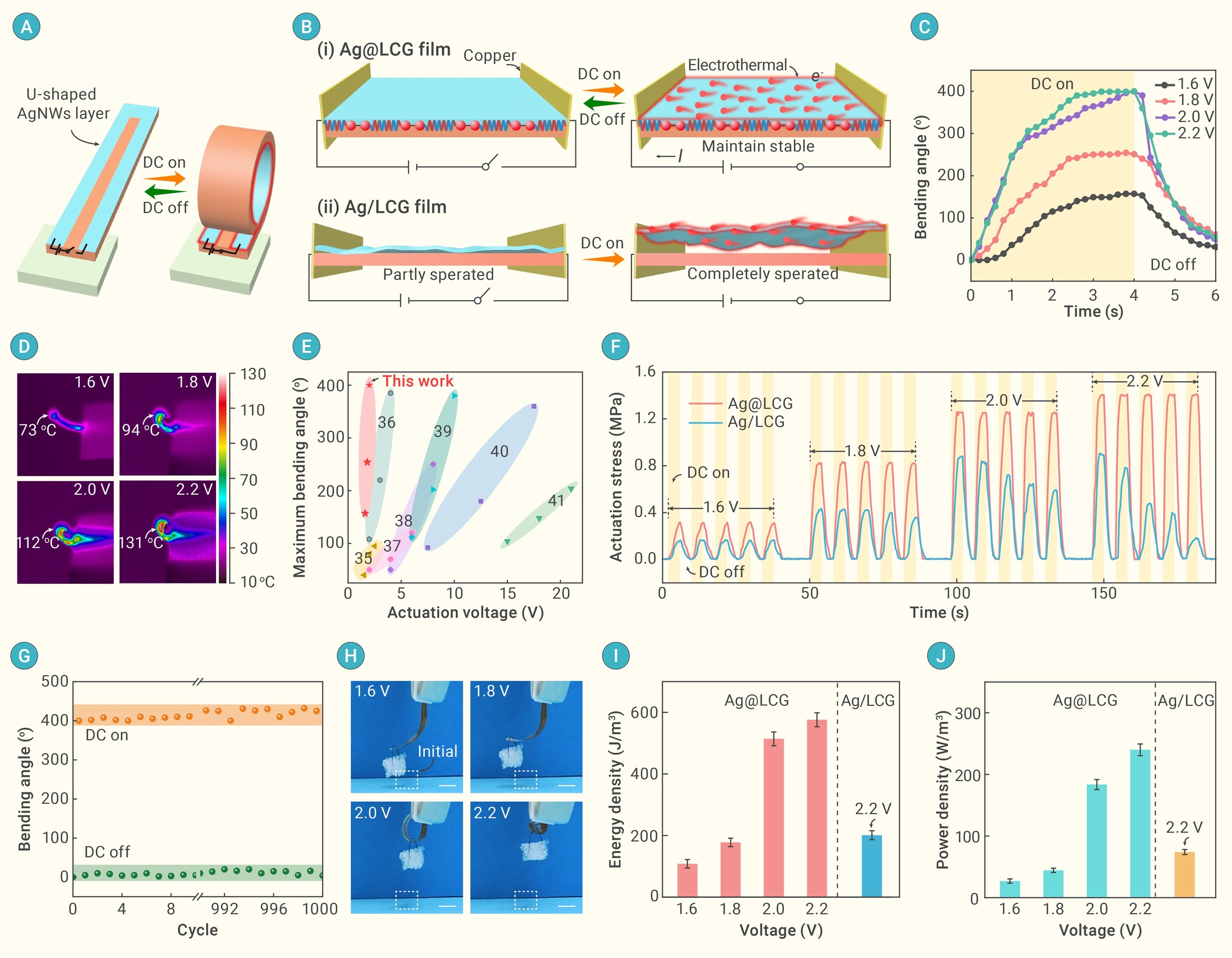

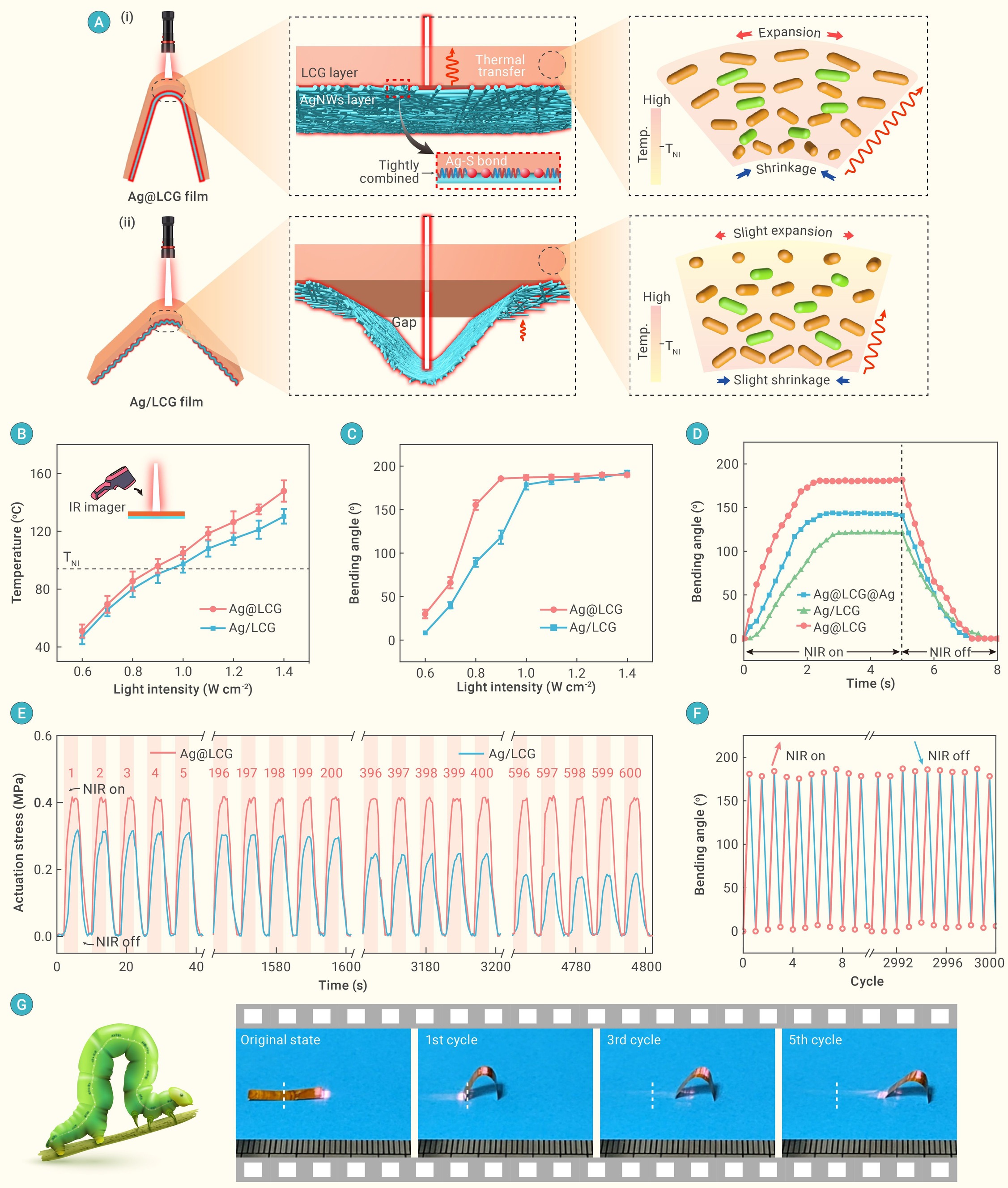

  The tightly-combined heterogeneous interface leads to the promoted photo- and electric-driven properties.

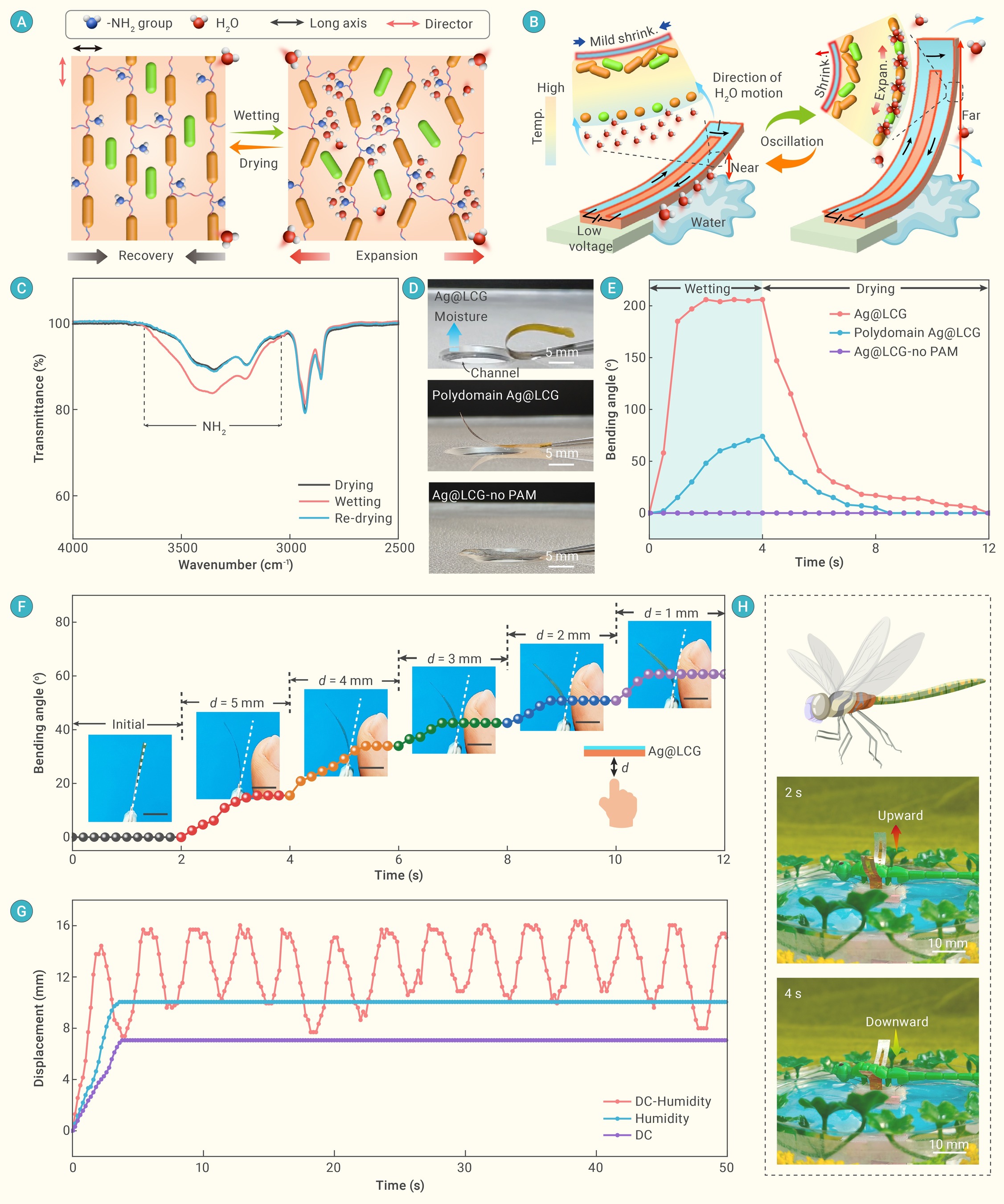

  The actuator exhibits highly-stable multi-responsiveness to light, electricity, and humidity.

  The actuator showcases great potential for intelligent soft robots.

ABSTRACT

ABSTRACT

Stimuli-responsive liquid crystal (LC) actuators are in high demand in bioinspired robotics and tissue engineering. However, multiple stimuli-responsiveness with low actuation threshold and high long-term stability is still suspected, because it remains challenging to seamlessly integrate multifunctional elements into LC polymer matrix while maintaining ordered mesogenic alignments. Here, we demonstrate a metal coordination-assisted interfacial polymerization strengthening strategy for the fabrication of a stable and multi-responsive LC actuator with an integrated bilayer architecture through a surface modification combining with two-stage polymerization. Thanks to high heat conduction of the tightly-combined heterogeneous interface and notable photo- and electro-thermal performances of silver nanowires, the resulting actuator can achieve fast light-driven upward arching shape-morphing to 181^o in 2.4 s at a low near-infrared intensity of 0.9 W cm^-2 and strong voltage-tolerant rolled deformation at a bending angle of 400^o over 1000 cycles at 2.2 V. With the copolymerization of hydrophilic chains in LC matrix, the hydrophilic disturbance-triggered anisotropic expansion drives a humidity-responsive actuation. As a top-performing actuator among the previously reported multi-stimuli responsive actuators, diverse smart robots of photo-actuated crawler, electric-powered gripper and electro-humidity driven oscillator are realized. This work promises an opportunity for intelligent soft robotics.
- liquid crystal gels /
- heterogenous interface /
- multi-stimuli responsiveness /
- long-term stability /
- soft robots

FullText(HTML)

REFERENCES

[1]	Cheng Y., Chan K. H., Wang X. Q., et al. (2019). Direct-ink-write 3D printing of hydrogels into biomimetic soft robots. ACS Nano 13:13176−13184. DOI:10.1021/acsnano.9b06144 View in Article CrossRef Google Scholar
[2]	Hu W. Q., Lum G. Z., Mastrangeli M., et al. (2018). Small-scale soft-bodied robot with multimodal locomotion. Nature 554:81−85. DOI:10.1038/nature25443 View in Article CrossRef Google Scholar
[3]	Ren Z. Y., Zhang R. J., Soon R. H., et al. (2021). Soft-bodied adaptive multimodal locomotion strategies in fluid-filled confined spaces. Sci. Adv. 7:eabh2022. DOI:10.1126/sciadv.abh2022 View in Article CrossRef Google Scholar
[4]	Xiao Y. Y., Jiang Z. C., Tong X., et al. (2019). Biomimetic locomotion of electrically powered "Janus" soft robots using a liquid crystal polymer. Adv. Mater. 31:1903452. DOI:10.1002/adma.201903452 View in Article CrossRef Google Scholar
[5]	Wei X. S., Chen L., Wang Y. F., et al. (2022). An electrospinning anisotropic hydrogel with remotely-controlled photo-responsive deformation and long-range navigation for synergist actuation. Chem. Eng. J. 433:134258. DOI:10.1016/j.cej.2021.134258 View in Article CrossRef Google Scholar
[6]	Wang X. Q., Tan C. F., Chan K. H., et al. (2018). In-built thermo-mechanical cooperative feedback mechanism for self-propelled multimodal locomotion and electricity generation. Nat. Commun. 9:3438. DOI:10.1038/s41467-018-06011-9 View in Article CrossRef Google Scholar
[7]	Yang L. L., Chong L. F., Hu Y., et al. (2020). An autonomous soft actuator with light-driven self-sustained wavelike oscillation for phototactic self-locomotion and power generation. Adv. Funct. Mater. 30:1908842. DOI:10.1002/adfm.201908842 View in Article CrossRef Google Scholar
[8]	Li J. J., Mou L. L., Liu Z. F., et al. (2022). Oscillating light engine realized by photothermal solvent evaporation. Nat. Commun. 13:5621. DOI:10.1038/s41467-022-33374-x View in Article CrossRef Google Scholar
[9]	Zhang J. C., Guo Y. B., Hu W. Q., et al. (2021). Liquid crystal elastomer-based magnetic composite films for reconfigurable shape-morphing soft miniature machines. Adv. Mater. 33:2006191. DOI:10.1002/adma.202006191 View in Article CrossRef Google Scholar
[10]	Maurin V., Chang Y. L., Ze Q. J., et al. (2024). Liquid crystal elastomer-liquid metal composite: Ultrafast, untethered, and programmable actuation by induction heating. Adv. Mater. 36:2302765. DOI:10.1002/adma.202302765 View in Article CrossRef Google Scholar
[11]	Kularatne R. S., Kim H., Boothby J. M., et al. (2017). Liquid crystal elastomer actuators: Synthesis, alignment, and applications. J. Polym. Sci. Pol. Phys. 55:395−411. DOI:10.1002/polb.24287 View in Article CrossRef Google Scholar
[12]	Zhang J. Z., Sun D. D., Zhang B., et al. (2022). Intrinsic carbon nanotube liquid crystalline elastomer photoactuators for high-definition biomechanics. Mater. Horiz. 9:1045−1056. DOI:10.1039/d1mh01810h View in Article CrossRef Google Scholar
[13]	Yang Y. K., Zhan W. J., Peng R. G., et al. (2015). Graphene-enabled superior and tunable photomechanical actuation in liquid crystalline elastomer nanocomposites. Adv. Mater. 27:6376−6381. DOI:10.1002/adma.201503680 View in Article CrossRef Google Scholar
[14]	Li C. S., Liu Y., Huang X. Z., et al. (2015). Light actuation of graphene-oxide incorporated liquid crystalline elastomer nanocomposites. Mol. Cryst. Liq. Cryst. 616:83−92. DOI:10.1080/15421406.2014.990256 View in Article CrossRef Google Scholar
[15]	Yang M. Y., Xu Y. Y., Zhang X., et al. (2022). Bioinspired phototropic MXene-reinforced soft tubular actuators for omnidirectional light-tracking and adaptive photovoltaics. Adv. Funct. Mater. 32:2201884. DOI:10.1002/adfm.202201884 View in Article CrossRef Google Scholar
[16]	Cho W. B., Kang D. J., Hahm M. J., et al. (2023). Multi-functional locomotion of collectively assembled shape-reconfigurable electronics. Nano Energy 118:108953. DOI:10.1016/j.nanoen.2023.108953 View in Article CrossRef Google Scholar
[17]	Chen C., Liu Y. Y. C., He X. M., et al. (2021). Multiresponse shape-memory nanocomposite with a reversible cycle for powerful artificial muscles. Chem. Mater. 33:987−997. DOI:10.1021/acs.chemmater.0c04170 View in Article CrossRef Google Scholar
[18]	Lu X. L., Zhang H., Fei G. X., et al. (2018). Liquid-crystalline dynamic networks doped with gold nanorods showing enhanced photocontrol of actuation. Adv. Mater. 30:1706597. DOI:10.1002/adma.201706597 View in Article CrossRef Google Scholar
[19]	Guin T., Kowalski B. A., Rao R., et al. (2018). Electrical control of shape in voxelated liquid crystalline polymer nanocomposites. ACS Appl. Mater. Interfaces 10:1187−1194. DOI:10.1021/acsami.7b13814 View in Article CrossRef Google Scholar
[20]	Wang C. J., Sim K., Chen J., et al. (2018). Soft ultrathin electronics innervated adaptive fully soft robots. Adv. Mater. 30:1706695. DOI:10.1002/adma.201706695 View in Article CrossRef Google Scholar
[21]	He Q. G., Wang Z. J., Wang Y., et al. (2019). Electrically controlled liquid crystal elastomer-based soft tubular actuator with multimodal actuation. Sci. Adv. 5:eaax5746. DOI:10.1126/sciadv.aax5746 View in Article CrossRef Google Scholar
[22]	Zadan M., Patel D. K., Sabelhaus A. P., et al. (2022). Liquid crystal elastomer with integrated soft thermoelectrics for shape memory actuation and energy harvesting. Adv. Mater. 34:2200857. DOI:10.1002/adma.202200857 View in Article CrossRef Google Scholar
[23]	Wang Y. C., Liu J. Q. and Yang S. (2022). Multi-functional liquid crystal elastomer composites. Appl. Phys. Rev. 9:011301. DOI:10.1063/5.0075471 View in Article CrossRef Google Scholar
[24]	Li M. T., Wang X., Dong B., et al. (2020). In-air fast response and high speed jumping and rolling of a light-driven hydrogel actuator. Nat. Commun. 11:3988. DOI:10.1038/s41467-020-17775-4 View in Article CrossRef Google Scholar
[25]	Wang Y. C., Dang A. L., Zhang Z. F., et al. (2020). Repeatable and reprogrammable shape morphing from photoresponsive gold nanorod/liquid crystal elastomers. Adv. Mater. 32:2004270. DOI:10.1002/adma.202004270 View in Article CrossRef Google Scholar
[26]	Qin H. L., Liu P., Chen C. R., et al. (2021). A multi-responsive healable supercapacitor. Nat. Commun. 12:4297. DOI:10.1038/s41467-021-24568-w View in Article CrossRef Google Scholar
[27]	Dai J., Qin H. L., Dong W. X., et al. (2022). Autonomous self-healing of highly stretchable supercapacitors at all climates. Nano Lett. 22:6444−6453. DOI:10.1021/acs.nanolett.2c01635 View in Article CrossRef Google Scholar
[28]	Song P., Qin H. L., Gao H. L., et al. (2018). Self-healing and superstretchable conductors from hierarchical nanowire assemblies. Nat. Commun. 9:2786. DOI:10.1038/s41467-018-05238-w View in Article CrossRef Google Scholar
[29]	Xie A. Q., Zhu L. L., Liang Y. Z., et al. (2022). Fiber-spinning asymmetric assembly for Janus-structured bifunctional nanofiber films towards all-weather smart textile. Angew. Chem. Int. Ed. 61:e202208592. DOI:10.1002/anie.202208592 View in Article CrossRef Google Scholar
[30]	Park J. H., Hwang G. T., Kim S., et al. (2017). Flash-induced self-limited plasmonic welding of silver nanowire network for transparent flexible energy harvester. Adv. Mater. 29:1603473. DOI:10.1002/adma.201603473 View in Article CrossRef Google Scholar
[31]	Ding J., Qiao Z., Zhang Y. S., et al. (2020). NIR-responsive multi-healing HMPAM/dextran/AgNWs hydrogel sensor with recoverable mechanics and conductivity for human-machine interaction. Carbohyd. Polym. 247:116686. DOI:10.1016/j.carbpol.2020.116686 View in Article CrossRef Google Scholar
[32]	Yu H., Tian Y., Dirican M., et al. (2021). Flexible, transparent and tough silver nanowire/nanocellulose electrodes for flexible touch screen panels. Carbohyd. Polym. 273:118539. DOI:10.1016/j.carbpol.2021.118539 View in Article CrossRef Google Scholar
[33]	Wang W., Sun X. M., Wu W., et al. (2012). Photoinduced deformation of crosslinked liquid-crystalline polymer film oriented by a highly aligned carbon nanotube sheet. Angew. Chem. Int. Ed. 51:4644−4647. DOI:10.1002/anie.201200723 View in Article CrossRef Google Scholar
[34]	Weng M. C., Duan Y. M., Zhou P. D., et al. (2020). Electric-fish-inspired actuator with integrated energy-storage function. Nano Energy 68:104365. DOI:10.1016/j.nanoen.2019.104365 View in Article CrossRef Google Scholar
[35]	Tang Z. H., Zhu W. B., Mao Y. Q., et al. (2022). Multiresponsive Ti3C2Tx MXene-based actuators enabled by dual-mechanism synergism for soft robotics. ACS Appl. Mater. Interfaces 14:21474−21485. DOI:10.1021/acsami.2c03157 View in Article CrossRef Google Scholar
[36]	Sang M., Liu G. H., Liu S., et al. (2021). Flexible PTFE/MXene/PI soft electrothermal actuator with electromagnetic-interference shielding property. Chem. Eng. J. 414:128883. DOI:10.1016/j.cej.2021.128883 View in Article CrossRef Google Scholar
[37]	Zhang X. H., Tian M. W., Raza T., et al. (2021). Soft robotic reinforced by carbon fiber skeleton with large deformation and enhanced blocking forces. Compos. B. Eng. 223:109099. DOI:10.1016/j.compositesb.2021.109099 View in Article CrossRef Google Scholar
[38]	Chang L. F., Wang D. P., Huang Z. S., et al. (2023). A versatile ionomer-based soft actuator with multi-stimulus responses, self-sustainable locomotion, and photoelectric conversion. Adv. Funct. Mater. 33:2212341. DOI:10.1002/adfm.202212341 View in Article CrossRef Google Scholar
[39]	Ling Y., Pang W. B., Li X. P., et al. (2020). Laser-induced graphene for electrothermally controlled, mechanically guided, 3D assembly and human-soft actuators interaction. Adv. Mater. 32:1908475. DOI:10.1002/adma.201908475 View in Article CrossRef Google Scholar
[40]	Li Q. W., Liu C. H., Lin Y. H., et al. (2015). Large-strain, multiform movements from designable electrothermal actuators based on large highly anisotropic carbon nanotube sheets. ACS Nano 9:409−418. DOI:10.1021/nn505535k View in Article CrossRef Google Scholar
[41]	Wang Q., Li Y. T., Zhang T. Y., et al. (2018). Low-voltage, large-strain soft electrothermal actuators based on laser-reduced graphene oxide/ag particle composites. Appl. Phys. Lett. 112:133902. DOI:10.1063/1.5020918 View in Article CrossRef Google Scholar
[42]	Ahn J., Jeong Y., Zhao Z. J., et al. (2020). Heterogeneous conductance-based locally shape-morphable soft electrothermal actuator. Adv. Mater. Technol. 5:1900997. DOI:10.1002/admt.201900997 View in Article CrossRef Google Scholar
[43]	Veiga J. S., Carneiro M. R., Molter R., et al. (2023). Toward fully printed soft actuators: Uv-assisted printing of liquid crystal elastomers and biphasic liquid metal conductors. Adv. Mater. Technol. 8:2300144. DOI:10.1002/admt.202300144 View in Article CrossRef Google Scholar
[44]	Yao S. S., Cui J. X., Cui Z., et al. (2017). Soft electrothermal actuators using silver nanowire heaters. Nanoscale 9:3797−3805. DOI:10.1039/c6nr09270e View in Article CrossRef Google Scholar
[45]	Liu H. R., Tian H. M., Shao J. Y., et al. (2020). An electrically actuated soft artificial muscle based on a high-performance flexible electrothermal film and liquid-crystal elastomer. ACS Appl. Mater. Interfaces 12:56338−56349. DOI:10.1021/acsami.0c17327 View in Article CrossRef Google Scholar
[46]	Li L. L., Zhao S., Luo X. J., et al. (2021). Smart MXene-based Janus films with multi-responsive actuation capability and high electromagnetic interference shielding performances. Carbon 175:594−602. DOI:10.1016/j.carbon.2020.10.090 View in Article CrossRef Google Scholar
[47]	Ma J. N., Ma B., Wang Z. X., et al. (2023). Multiresponsive MXene actuators with asymmetric quantum-confined superfluidic structures. Adv. Funct. Mater. 34:2308317. DOI:10.1002/adfm.202308317 View in Article CrossRef Google Scholar
[48]	Ma J. N., Mao J. W., Han D. D., et al. (2019). Laser programmable patterning of RGO/GO Janus paper for multiresponsive actuators. Adv. Mater. Technol. 4:1900554. DOI:10.1002/admt.201900554 View in Article CrossRef Google Scholar
[49]	Ma B., Ma J. N., Song P., et al. (2024). Quantum-confined-superfluidics-enabled multiresponsive MXene-based actuators. ACS Appl. Mater. Interfaces 16:15215−15226. DOI:10.1021/acsami.4c00864 View in Article CrossRef Google Scholar
[50]	Luo X. J., Li L. L., Zhang H. B., et al. (2021). Multifunctional Ti₃C₂T_x MXene/low-density polyethylene soft robots with programmable configuration for amphibious motions. ACS Appl. Mater. Interfaces 13:45833−45842. DOI:10.1021/acsami.1c11056 View in Article CrossRef Google Scholar
[51]	Xu L. L., Zheng H. W., Xue F. H., et al. (2023). Bioinspired multi-stimulus responsive MXene-based soft actuator with self-sensing function and various biomimetic locomotion. Chem. Eng. J. 463:142392. DOI:10.1016/j.cej.2023.142392 View in Article CrossRef Google Scholar
[52]	Li X. Y., Li J. N., Zhao Y., et al. (2024). Multi-stimuli-responsive Ti₃C₂T_x MXene-based actuators actualizing intelligent interpretation of traditional shadow play. Carbon 218:118652. DOI:10.1016/j.carbon.2023.118652 View in Article CrossRef Google Scholar
[53]	Wang W., Xiang C. X., Zhu Q., et al. (2018). Multistimulus responsive actuator with GO and carbon nanotube/PDMS bilayer structure for flexible and smart devices. ACS Appl. Mater. Interfaces 10:27215−27223. DOI:10.1021/acsami.8b08554 View in Article CrossRef Google Scholar

Cited by

ABOUT THIS ARTICLE

Cite this article:

Chen H., Yao X., Qin H., et al. (2025). A highly-stable multi-responsive bimorph liquid crystal actuator with chemically soldered heterogenous interface. The Innovation Materials 3:100144. https://doi.org/10.59717/j.xinn-mater.2025.100144

Chen H., Yao X., Qin H., et al. (2025). A highly-stable multi-responsive bimorph liquid crystal actuator with chemically soldered heterogenous interface. The Innovation Materials 3:100144. https://doi.org/10.59717/j.xinn-mater.2025.100144

Welcome!

To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.

Standard PDF

Extended PDF

Figures(5)

Supplementary Information

download_supplementary
Video(S1-S8)

Article Metrics

Article views(4846) PDF downloads(2231)

A highly-stable multi-responsive bimorph liquid crystal actuator with chemically soldered heterogenous interface

GRAPHICAL ABSTRACT

PUBLIC SUMMARY

ABSTRACT
