Spatially resolved multi-omics unravels region-specific responses, microenvironment remodeling and metabolic reprogramming in aristolochic acid nephropathy
-

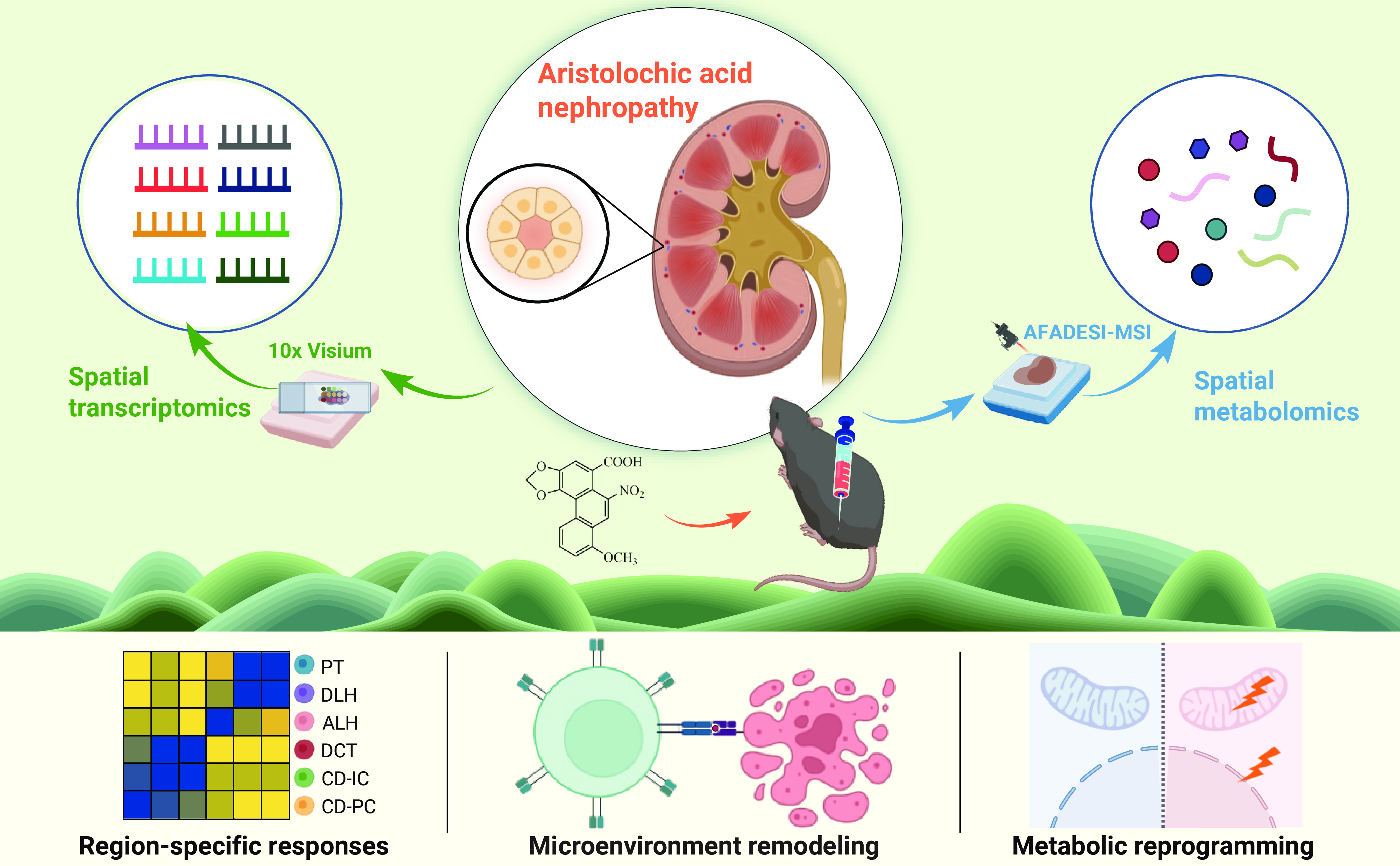

GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
Aristolochic acid I (AAI)-induced renal injury exhibits heterogeneity of response along nephron segment.
AAI extensively remodels cellular crosstalk between proximal tubule (PT) cells and immune cells.
AAI induces metabolic reprogramming in PT cells, especially the up-regulation of purine metabolism.
-
-
ABSTRACT
Aristolochic acid nephropathy (AAN), primarily caused by overexposure to aristolochic acid I (AAI), is characterized by acute renal injury, interstitial nephritis, and metabolic dysfunction. Previous studies have revealed the cell-specific responses to AAI and its role in inducing metabolic dysfunction. However, the lack of structural information in these datasets hinders our full understanding of the spatially specific pathological mechanisms of AAN. To address this limitation, we propose an integration of spatial transcriptomics with spatial metabolomics methods to establish a spatial multi-omics analysis, which allows for deciphering region-specific responses, microenvironmental remodeling, and metabolic reprogramming in situ in AAN. The pathological differences between renal regions indicate that AAI-induced renal injury exhibits spatial heterogeneity. With prolonged AAI treatment, we observed an increased proportion and co-localization of the injured proximal tubule (PT-inj) and immune cells in the cortex region, accompanied by intercellular crosstalk involving the MHC-I and CCL pathways. In addition, we identified a divergent cellular response along nephron segments, with up-regulation of multiple renal stress markers and pathways after AAI treatment. Regional heterogeneity of metabolic activities was also observed, with PT-inj cells exhibiting dysregulation of carbohydrate, lipid, and amino acid metabolic pathways, as well as increased purine and pyrimidine metabolism after AAI treatment. These findings provide a more comprehensive understanding of the cellular and molecular mechanisms of AAN in a spatial context, and suggest potential intervention pathways to alleviate the global burden of AAN. -
-
REFERENCES
[1] Das, S., Thakur, S., Korenjak, M., et al. (2022). Aristolochic acid-associated cancers: A public health risk in need of global action. Nat. Rev. Cancer 22: 576−591. DOI: 10.1038/s41568-022-00494-x. [2] Liu, M.C., Maruyama, S., Mizuno, M., et al. (2003). The nephrotoxicity of Aristolochia manshuriensis in rats is attributable to its aristolochic acids. Clin. Exp. Nephrol. 7: 186−194. DOI: 10.1007/s10157-003-0229-z. [3] Vanherweghem, J.L., Depierreux, M., Tielemans, C., et al. (1993). Rapidly progressive interstitial renal fibrosis in young women: Association with slimming regimen including Chinese herbs. Lancet 341: 387−391. DOI: 10.1016/0140-6736(93)92984-2. [4] Debelle, F.D., Vanherweghem, J.L., and Nortier, J.L. (2008). Aristolochic acid nephropathy: A worldwide problem. Kidney Int. 74: 158−169. DOI: 10.1038/ki.2008.129. [5] Michl, J., Jennings, H.M., Kite, G.C., et al. (2013). Is aristolochic acid nephropathy a widespread problem in developing countries? A case study of Aristolochia indica L. in Bangladesh using an ethnobotanical-phytochemical approach. J. Ethnopharmacol. 149: 235−244. DOI: 10.1016/j.jep.2013.06.028. [6] Baudoux, T., Husson, C., De Prez, E., et al. (2018). CD4(+) and CD8(+) T cells exert regulatory properties during experimental acute aristolochic acid nephropathy. Sci. Rep. 8: 5334. DOI: 10.1038/s41598-018-23565-2. [7] Hsin, Y.H., Cheng, C.H., Tzen, J.T., et al. (2006). Effect of aristolochic acid on intracellular calcium concentration and its links with apoptosis in renal tubular cells. Apoptosis 11: 2167−2177. DOI: 10.1007/s10495-006-0289-0. [8] Li, Y., Xu, H., Cai, D., et al. (2021). Integration of transcriptomic, proteomic and metabolomic data to reveal the biological mechanisms of AAI injury in renal epithelial cells. Toxicol. In Vitro 70: 105054. DOI: 10.1016/j.tiv.2020.105054. [9] Chen, J., Luo, P., Wang, C., et al. (2022). Integrated single-cell transcriptomics and proteomics reveal cellular-specific responses and microenvironment remodeling in aristolochic acid nephropathy. JCI Insight 7 : e157360. DOI: 10.1172/jci.insight.157360. [10] Zhang, Q., Luo, P., Chen, J., et al. (2022). Dissection of targeting molecular mechanisms of aristolochic acid-induced nephrotoxicity via a combined deconvolution strategy of chemoproteomics and metabolomics. Int. J. Biol. Sci. 18: 2003−2017. DOI: 10.7150/ijbs.69618. [11] Nature Methods Editor. (2021). Method of the Year 2020: Spatially resolved transcriptomics. Nat. Methods 18 : 1. DOI: 10.1038/s41592-020-01042-x. [12] The Renal Commission of the International Union of Physiological Sciences (IUPS). (1988). A standard nomenclature for structures of the kidney. The Renal Commission of the International Union of Physiological Sciences (IUPS). Am. J. Physiol. 254 : F1-8. DOI: 10.1152/ajprenal.1988.254.1.F1. [13] Wang, G., Heijs, B., Kostidis, S., et al. (2022). Analyzing cell-type-specific dynamics of metabolism in kidney repair. Nat. Metab. 4: 1109−1118. DOI: 10.1038/s42255-022-00615-8. [14] Ou, Z., Yin, J., Wu, L., et al. (2023). Spatial transcriptomics in cancer research: Opportunities and challenges. The Innovation Life 1: 100006. DOI: 10.59717/j.xinn-life.2023.100006. [15] Melo Ferreira, R., Sabo, A.R., Winfree, S., et al. (2021). Integration of spatial and single-cell transcriptomics localizes epithelial cell-immune cross-talk in kidney injury. JCI Insight 6 : e147703. DOI: 10.1172/jci.insight.147703. [16] Dixon, E.E., Wu, H., Muto, Y., et al. (2022). Spatially resolved transcriptomic analysis of acute kidney injury in a female murine model. J. Am. Soc. Nephrol. 33: 279−289. DOI: 10.1681/ASN.2021081150. [17] Wang, Z., He, B., Liu, Y., et al. (2020). In situ metabolomics in nephrotoxicity of aristolochic acids based on air flow-assisted desorption electrospray ionization mass spectrometry imaging. Acta Pharm. Sin. B 10: 1083−1093. DOI: 10.1016/j.apsb.2019.12.004. [18] Hao, Y., Hao, S., Andersen-Nissen, E., et al. (2021). Integrated analysis of multimodal single-cell data. Cell 184 : 3573-3587 e3529. DOI: 10.1016/j.cell.2021.04.048. [19] Luciano, R.L., and Perazella, M.A. (2015). Aristolochic acid nephropathy: Epidemiology, clinical presentation, and treatment. Drug Saf. 38: 55−64. DOI: 10.1007/s40264-014-0244-x. [20] Janosevic, D., Myslinski, J., McCarthy, T.W., et al. (2021). The orchestrated cellular and molecular responses of the kidney to endotoxin define a precise sepsis timeline. Elife 10 : e62270. DOI: 10.7554/eLife.62270. [21] Rudman-Melnick, V., Adam, M., Potter, A., et al. (2020). Single-cell profiling of AKI in a murine model reveals novel transcriptional signatures, profibrotic phenotype, and epithelial-to-stromal crosstalk. J. Am. Soc. Nephrol. 31: 2793−2814. DOI: 10.1681/asn.2020010052. [22] Jiang, N., Huang, R., Zhang, J., et al. (2022). TIMP2 mediates endoplasmic reticulum stress contributing to sepsis-induced acute kidney injury. FASEB J. 36: e22228. DOI: 10.1096/fj.202101555RR. [23] Grabulosa, C.C., Batista, M.C., Cendoroglo, M., et al. (2014). Frequency of TGF- beta and IFN- gamma genotype as risk factors for acute kidney injury and death in intensive care unit patients. Biomed. Res. Int. 2014: 904730. DOI: 10.1155/2014/904730. [24] Fearn, A., Situmorang, G.R., Fox, C., et al. (2017). The NF-kappaB1 is a key regulator of acute but not chronic renal injury. Cell Death Dis. 8: e2883. DOI: 10.1038/cddis.2017.233. [25] Wang, Z., Fu, W., Huo, M., et al. (2021). Spatial-resolved metabolomics reveals tissue-specific metabolic reprogramming in diabetic nephropathy by using mass spectrometry imaging. Acta Pharm. Sin. B 11: 3665−3677. DOI: 10.1016/j.apsb.2021.05.013. [26] Liu, Y., Chen, Y., and Han, L. (2023). Bioinformatics: Advancing biomedical discovery and innovation in the era of big data and artificial intelligence. The Innovation Medicine 1: 100012. DOI: 10.59717/j.xinn-med.2023.100012. [27] Vandereyken, K., Sifrim, A., Thienpont, B., et al. (2023). Methods and applications for single-cell and spatial multi-omics. Nat. Rev. Genet. 24: 494−515. DOI: 10.1038/s41576-023-00580-2. [28] Wang, G., Heijs, B., Kostidis, S., et al. (2022). Spatial dynamic metabolomics identifies metabolic cell fate trajectories in human kidney differentiation. Cell Stem Cell 29 : 1580-1593 e1587. DOI: 10.1016/j.stem.2022.10.008. [29] Hansen, J., Sealfon, R., Menon, R., et al. (2022). A reference tissue atlas for the human kidney. Sci Adv 8: eabn4965. DOI: 10.1126/sciadv.abn4965. [30] Yoo, K.D., Cha, R.H., Lee, S., et al. (2020). Chemokine receptor 5 blockade modulates macrophage trafficking in renal ischaemic-reperfusion injury. J. Cell Mol. Med. 24: 5515−5527. DOI: 10.1111/jcmm.15207. [31] Lee, C.M., Peng, H.H., Yang, P., et al. (2017). C-C Chemokine Ligand-5 is critical for facilitating macrophage infiltration in the early phase of liver ischemia/reperfusion injury. Sci. Rep. 7: 3698. DOI: 10.1038/s41598-017-03956-7. [32] Honarpisheh, M., Foresto-Neto, O., Steiger, S., et al. (2018). Aristolochic acid I determine the phenotype and activation of macrophages in acute and chronic kidney disease. Sci. Rep. 8: 12169. DOI: 10.1038/s41598-018-30628-x. [33] Li, X.W., Yokota, S., Wang, D., et al. (2014). Localization of aristolochic acid in mouse kidney tissues by immunohistochemistry using an anti-AA-I and AA-II monoclonal antibody. Am. J. Chin. Med. 42: 1453−1469. DOI: 10.1142/S0192415X14500918. [34] Wu, L., Xiong, X., Wu, X., et al. (2020). Targeting oxidative stress and inflammation to prevent ischemia-reperfusion injury. Front. Mol. Neurosci. 13: 28. DOI: 10.3389/fnmol.2020.00028. [35] Luo, P., Chen, J., Zhang, Q., et al. (2022). Dissection of cellular and molecular mechanisms of aristolochic acid-induced hepatotoxicity via single-cell transcriptomics. Precis. Clin. Med. 5: pbac023. DOI: 10.1093/pcmedi/pbac023. [36] Stiborova, M., Frei, E., and Schmeiser, H.H. (2008). Biotransformation enzymes in development of renal injury and urothelial cancer caused by aristolochic acid. Kidney Int. 73: 1209−1211. DOI: 10.1038/ki.2008.125. [37] Yamamoto, S., Yamamoto, M., Nakamura, J., et al. (2020). Spatiotemporal ATP dynamics during AKI predict renal prognosis. J. Am. Soc. Nephrol. 31: 2855−2869. DOI: 10.1681/ASN.2020050580. [38] Lieberthal, W., Menza, S.A., and Levine, J.S. (1998). Graded ATP depletion can cause necrosis or apoptosis of cultured mouse proximal tubular cells. Am. J. Physiol. 274: F315−327. DOI: 10.1152/ajprenal.1998.274.2.F315. [39] Furuhashi, M. (2020). New insights into purine metabolism in metabolic diseases: Role of xanthine oxidoreductase activity. Am. J. Physiol. Endocrinol. Metab. 319: E827−E834. DOI: 10.1152/ajpendo.00378.2020. [40] Johnson, T.A., Jinnah, H.A., and Kamatani, N. (2019). Shortage of cellular ATP as a cause of diseases and strategies to enhance ATP. Front. Pharmacol. 10: 98. DOI: 10.3389/fphar.2019.00098. [41] Gessler, S., Guthmann, C., Schuler, V., et al. (2022). Control of directed cell migration after tubular cell injury by nucleotide signaling. Int. J. Mol. Sci. 23 : 7870. DOI: 10.3390/ijms23147870. -
ABOUT THIS ARTICLE
Cite this article:
Chen J., Li H., Bai Y., et al., (2024). Spatially resolved multi-omics unravels region-specific responses, microenvironment remodeling and metabolic reprogramming in aristolochic acid nephropathy. The Innovation Medicine 2(2): 100066. https://doi.org/10.59717/j.xinn-med.2024.100066
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(8)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Chen J., Li H., Bai Y., et al., (2024). Spatially resolved multi-omics unravels region-specific responses, microenvironment remodeling and metabolic reprogramming in aristolochic acid nephropathy. The Innovation Medicine 2(2): 100066. https://doi.org/10.59717/j.xinn-med.2024.100066
Format
Content
-
Figure 1.
Establishment of an AAN mouse model for spatially resolved multi-omics analysis
-

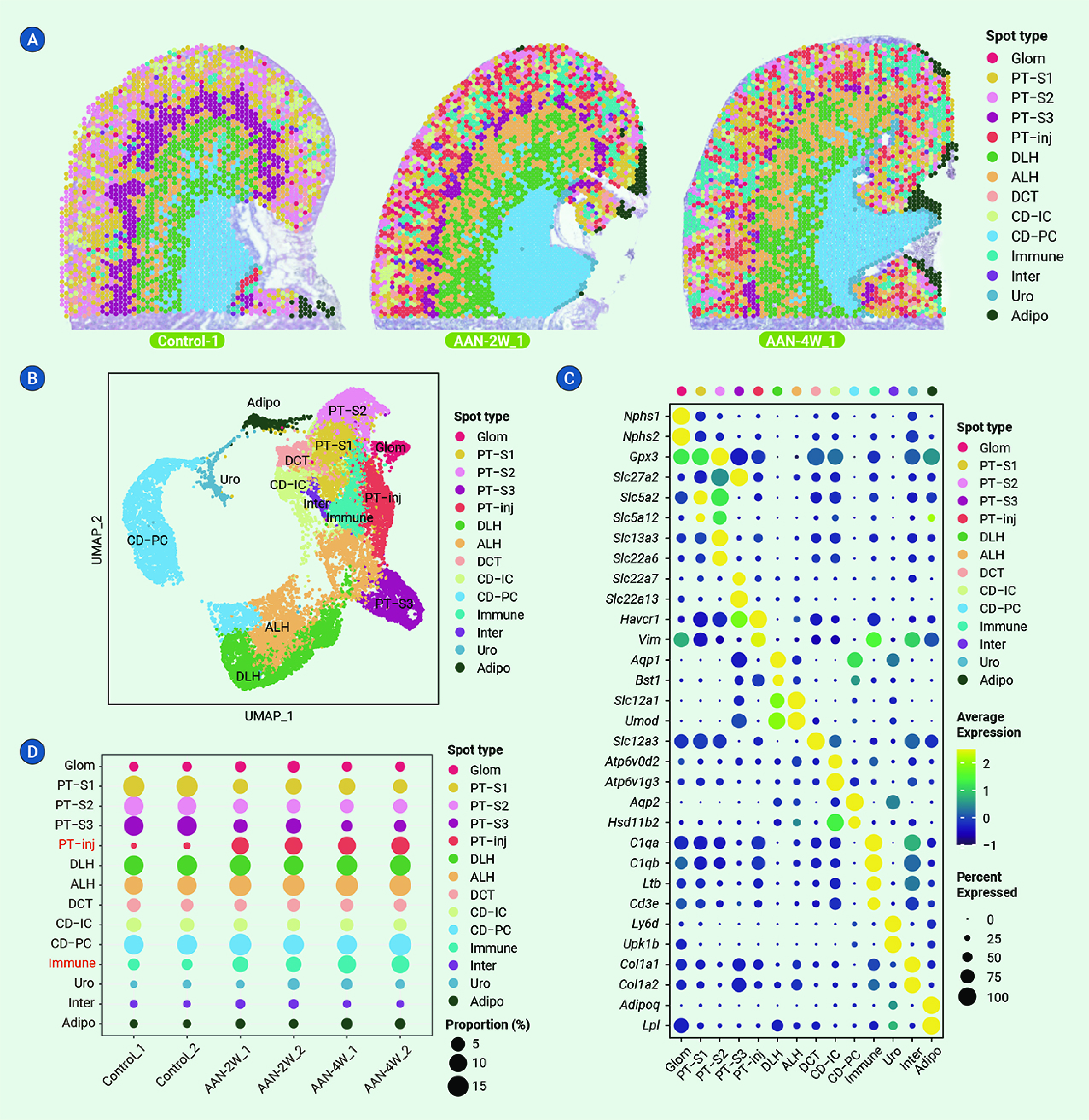

Figure 2.
Spatial transcriptomics of kidney samples from the healthy and AAN mice
-
Figure 3.
Analysis of the spatial cellular interactions in AAI-treated mouse kidney
-

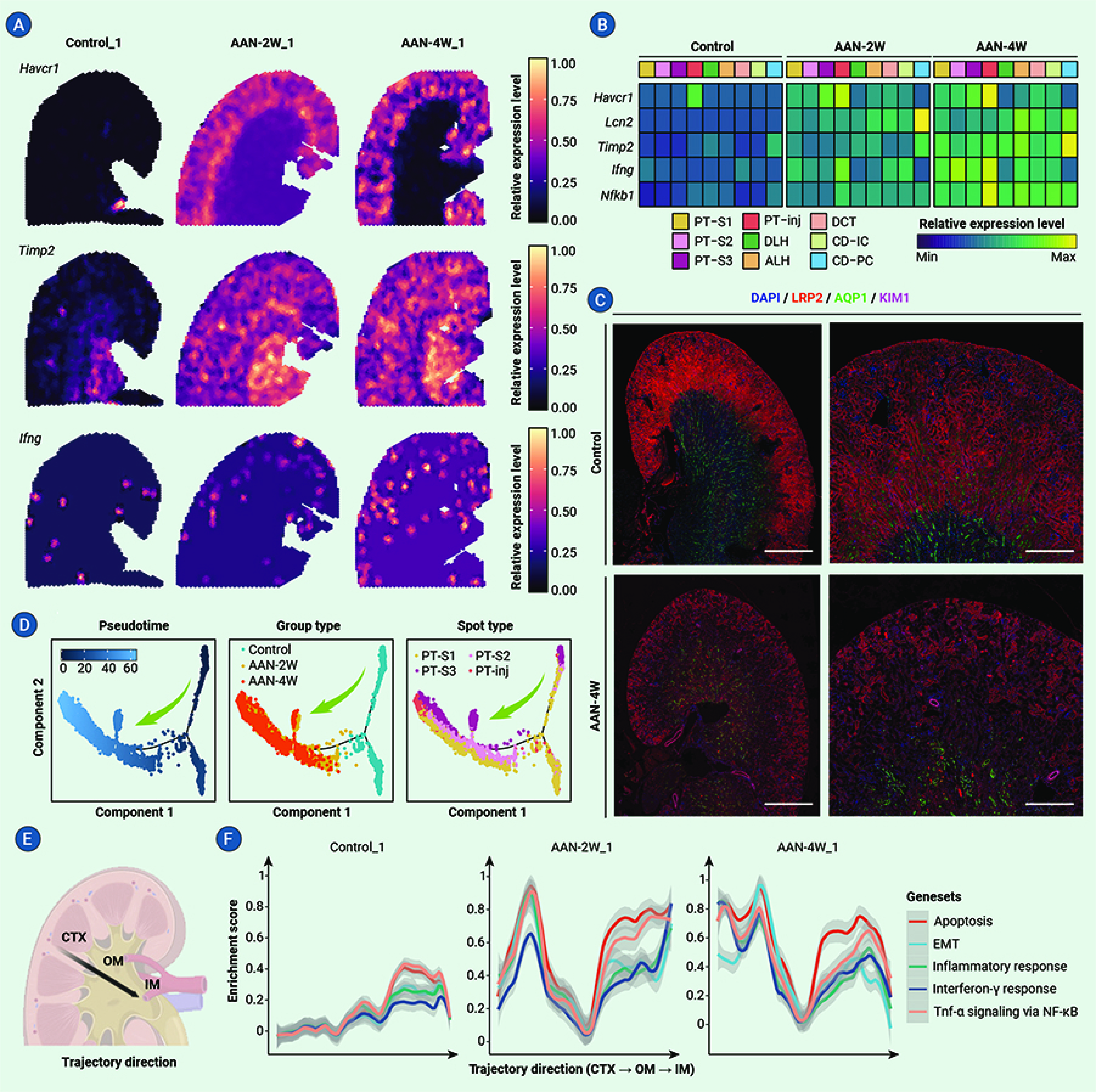

Figure 4.
Regional response to AAI-induced kidney injury
-

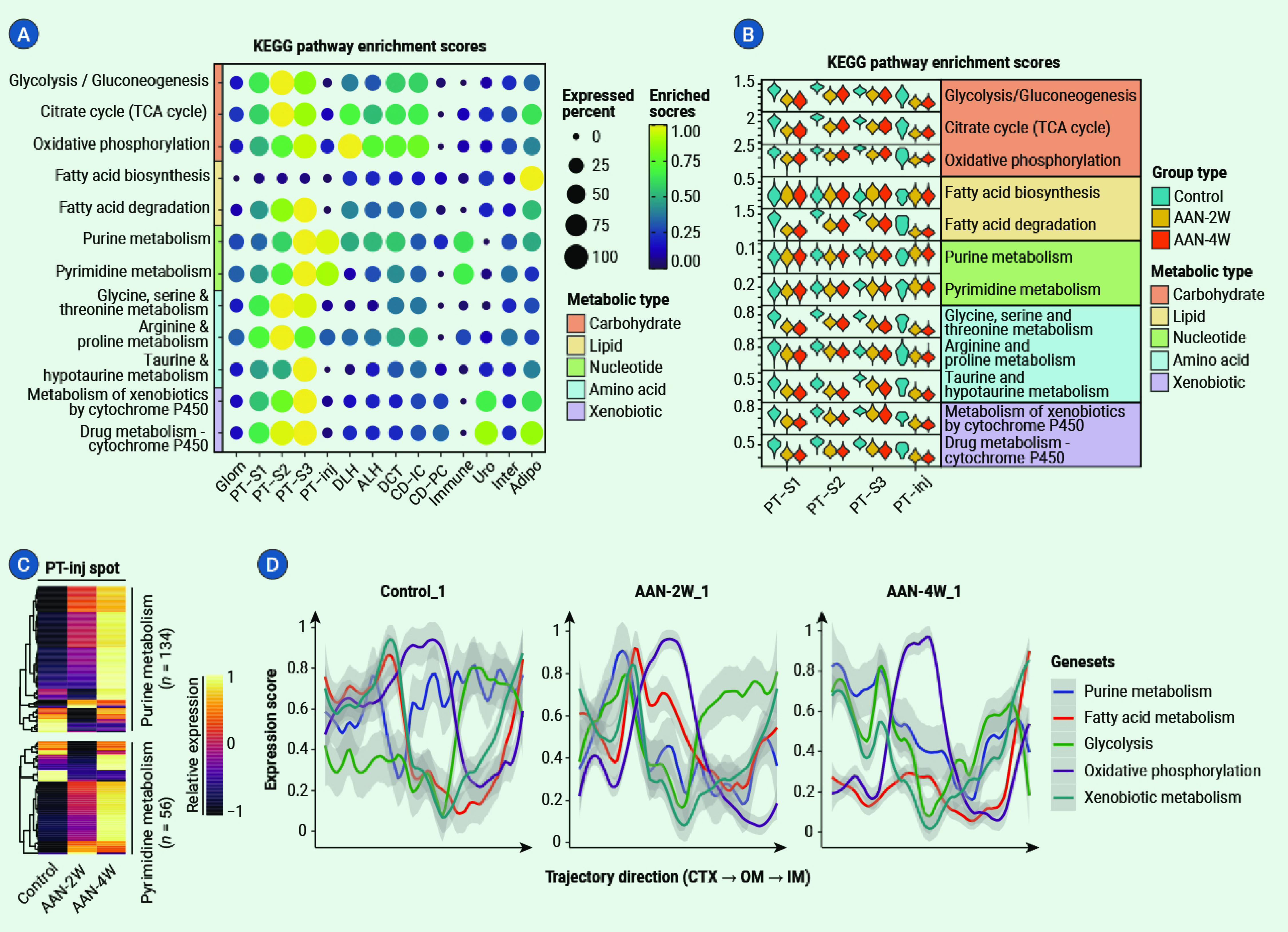

Figure 5.
Metabolic reprogramming of different spot types in the AAN
-

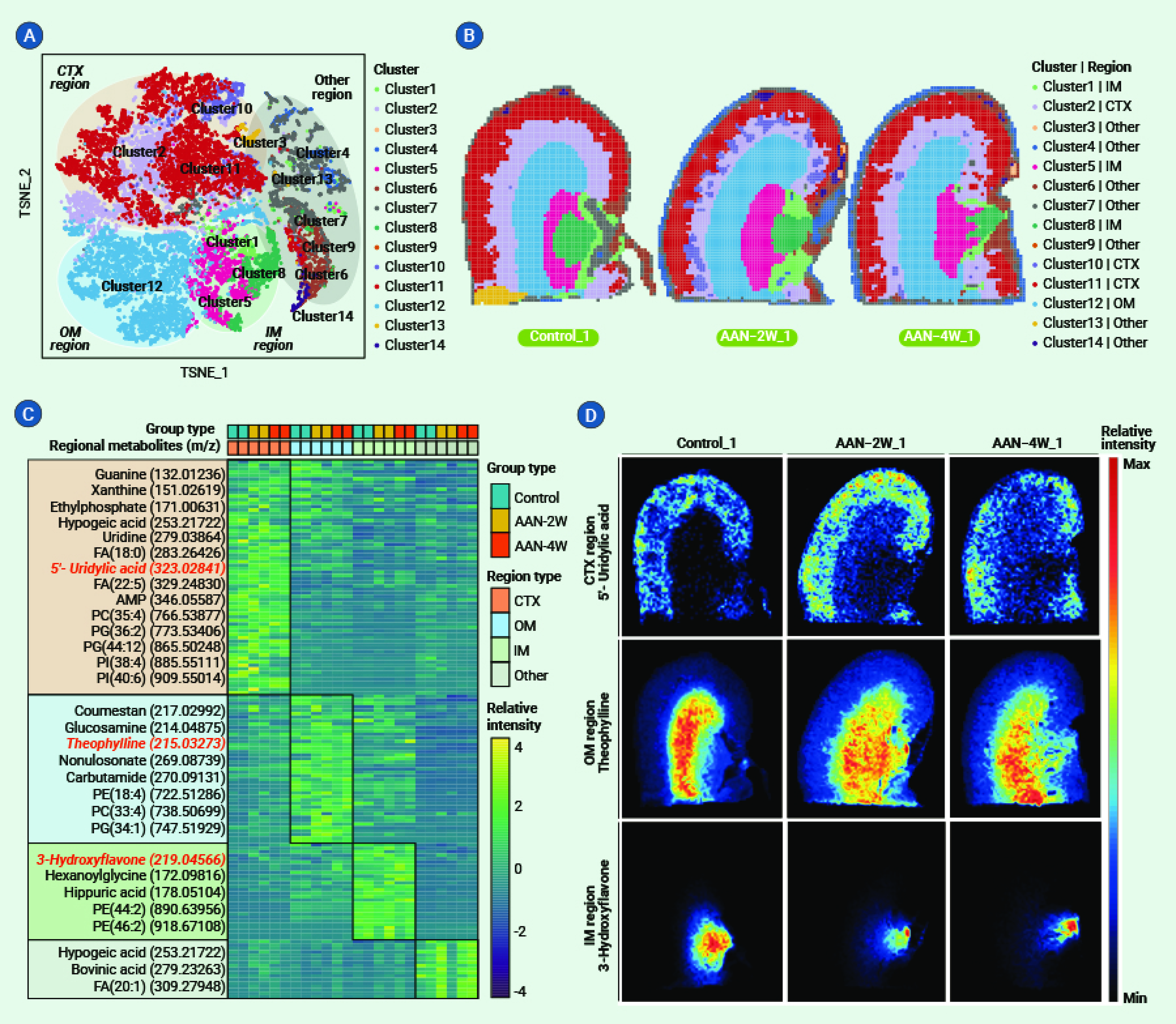

Figure 6.
Spatial metabolomic landscape of the AAN mouse kidney sample
-

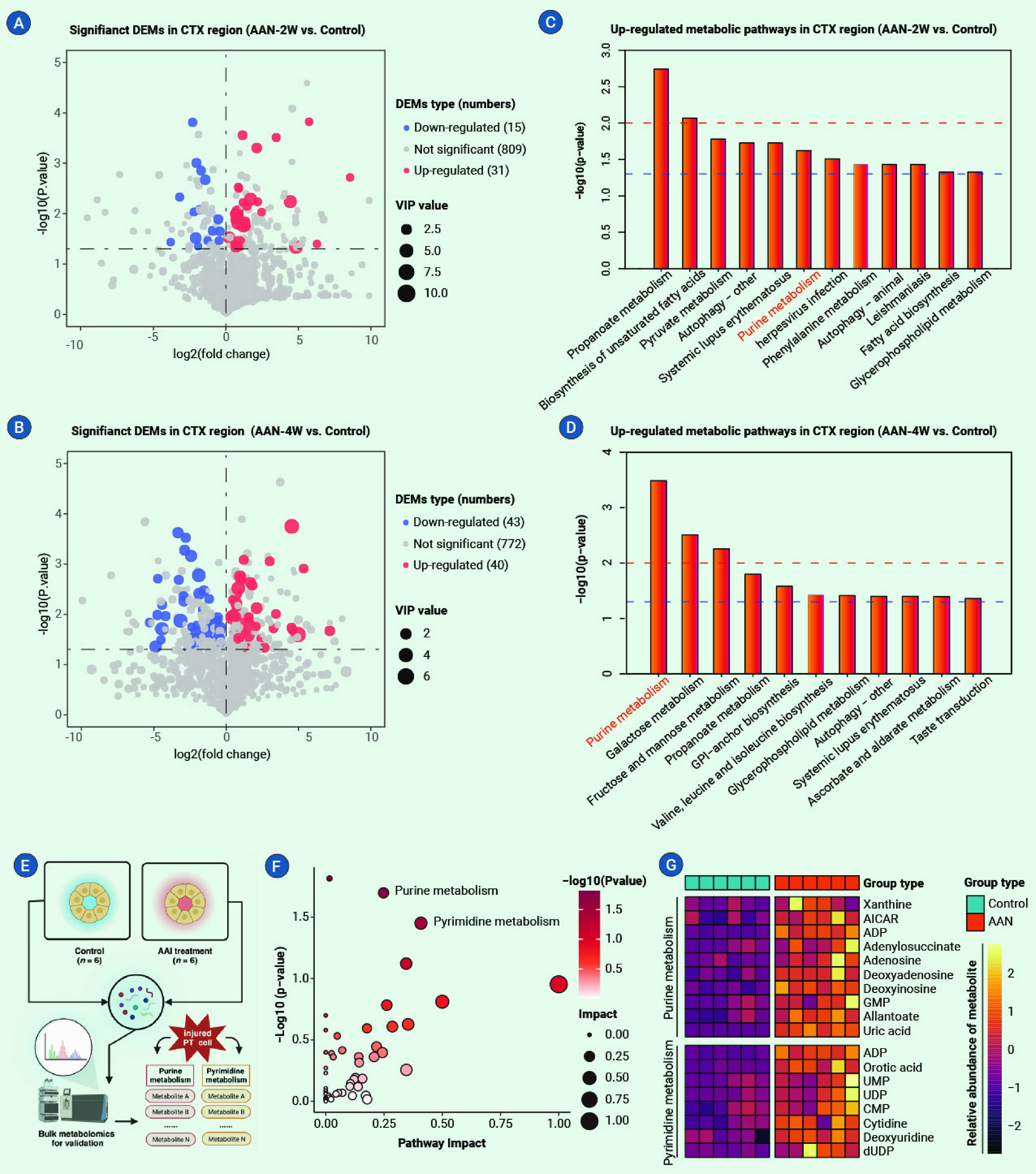

Figure 7.
Differentially expressed metabolites and pathway enrichment at the CTX region
-

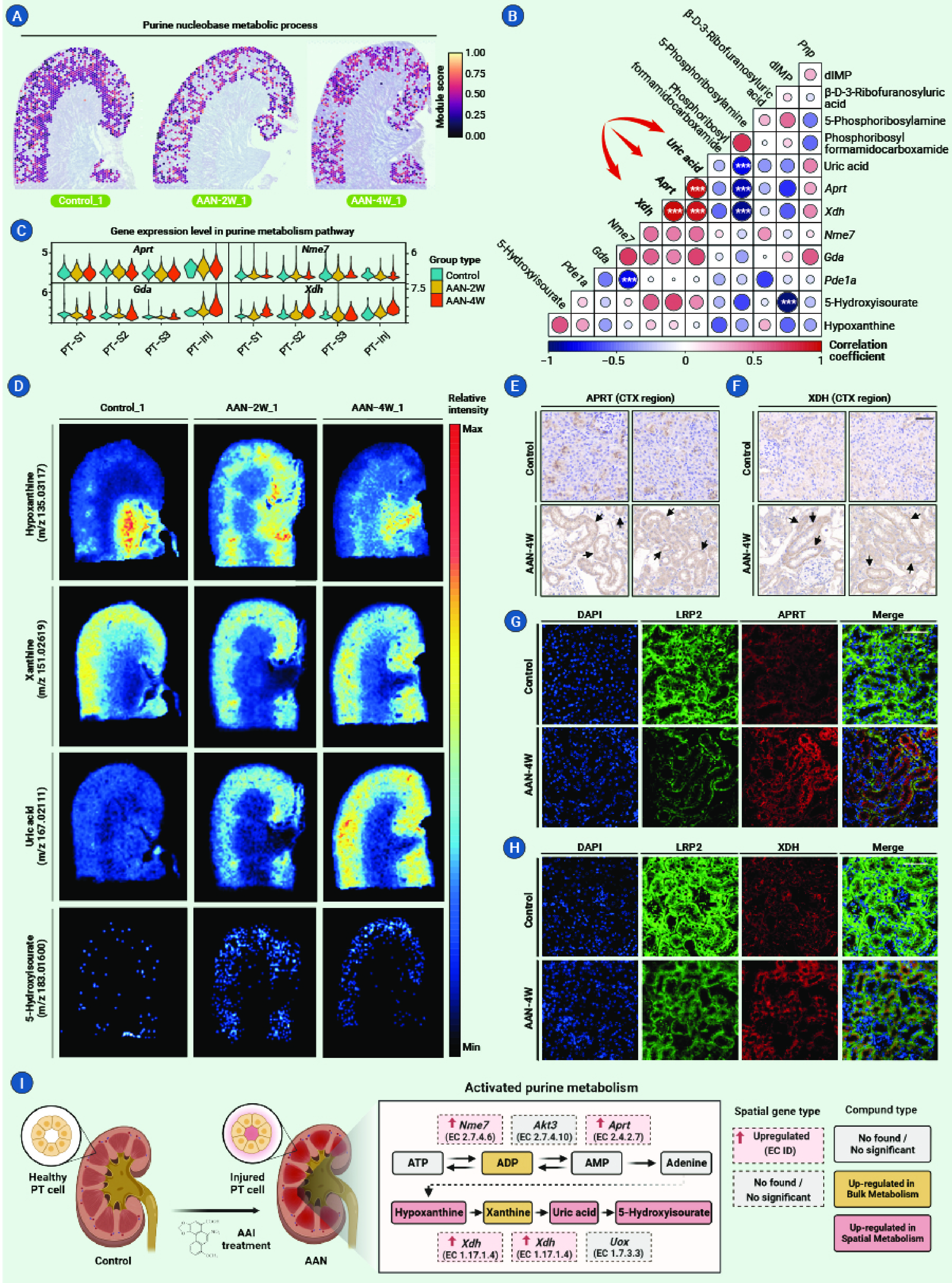

Figure 8.
Activation of the purine metabolic pathway of injured PT cells in the AAN
