Role of heat-pipe thermal spreader on the thermal management of light-weight battery module and suppression of thermal runaway
-

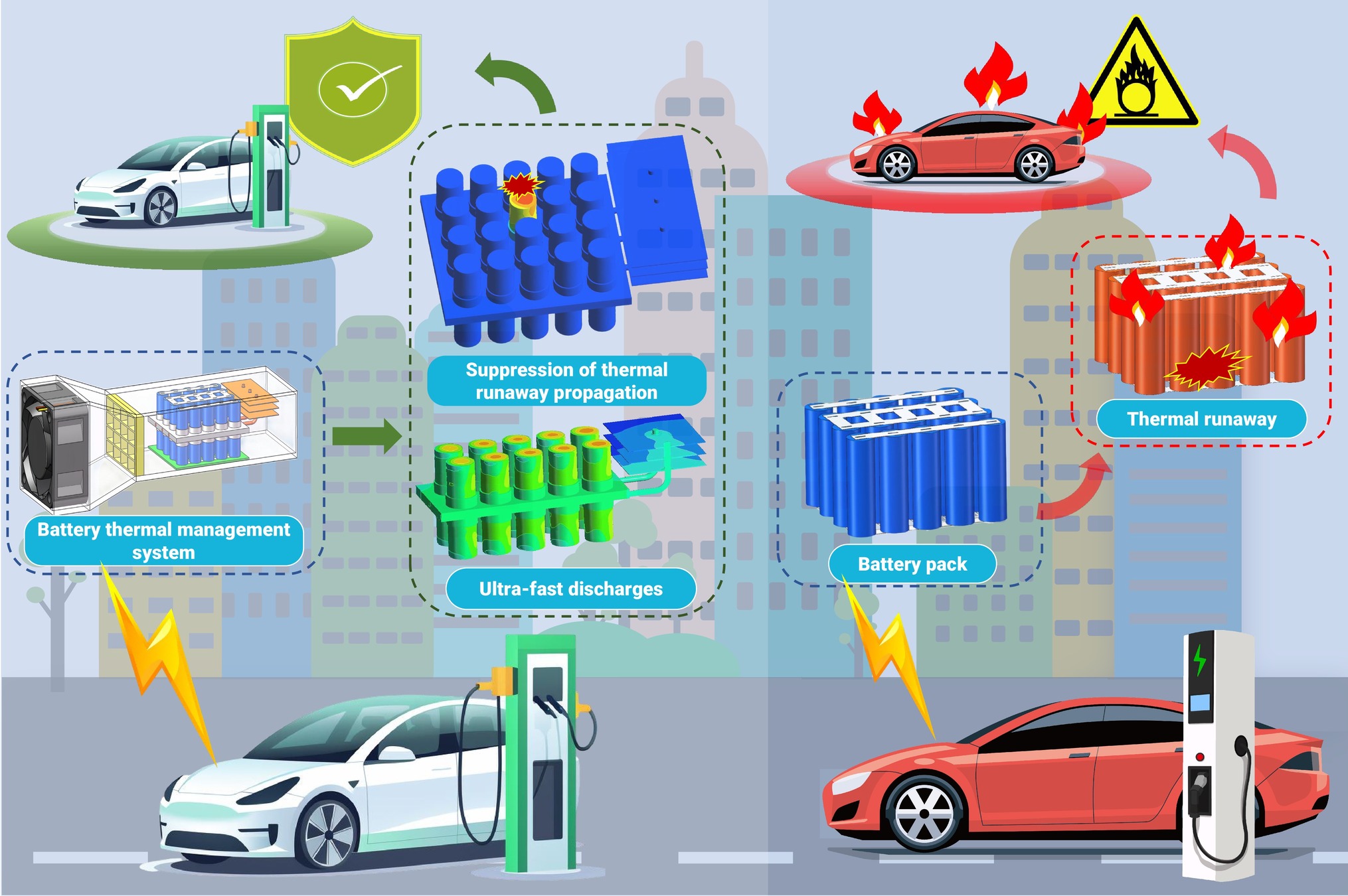

GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
Light-weight battery thermal management system with L-shaped heat-pipe thermal spreader (LHP-TSP) proposed.
Numerical model with measured LHP thermal conductivity established and validated.
Thermal performance with varying velocities and fins investigated.
For 5C discharge battery temperature well maintained with high grouping efficiency.
Propagation of thermal runaway successfully suppressed with LHP-TSP.
-
-
ABSTRACT
A novel air-cooling battery thermal management system integrated with L-shaped heat-pipes and thermal spreader is proposed for both ultra-high C-rate and thermal runaway suppression applications. Cylindrical batteries in 5×4 array are connected structurally with a thermal spreader embedded with finned L-shaped heat-pipes aligned to the air flow direction. The heat-pipes, which enable rapid temperature equalization of the upstream and downstream batteries, are characterized by the specially developed test jig. Both numerical simulation and experimental test are conducted to examine the thermal performances of battery module under varying discharge rates from 1C to 5C and air velocities from 1m/s to 5m/s. An experimental test for the battery module incorporating L-shaped heat-pipes was also conducted to verify the numerical simulation, with excellent agreement achieved. Under ultra-high discharge rates of 5C, the maximum temperature and the maximum temperature difference of the battery module at 5m/s vs 2m/s decrease by 15.92% and 28.79%, respectively, meeting the thermal requirements. Increasing the number of fins can further improve the thermal performance of the battery module. Besides, the battery module also demonstrates effective suppression of thermal runaway propagation. In the event of thermal runaway occurring in a single battery, the surrounding batteries reach 78.69°C maximum, well below the thermal runaway temperature, and thus successfully suppress the thermal propagation. Clearly the present study presents new ways to push the air-cooling limit for high performance light-weight battery packs. -
-
REFERENCES
[1] Global EV Outlook 2024 (2024), International Energy Agency, https://www.iea.org/reports/global-ev-outlook-2024 [2] Li Q., Yu X., Li H., et al. (2024). The road towards high-energy-density batteries. Innov. Energy 1:100005. DOI:10.59717/j.xinn-energy.2024.100005 [3] Feng X., Ren D., He X., et al. (2020). Mitigating thermal runaway of lithium-ion batteries. Joule 4:743−770. DOI:10.1016/j.joule.2020.02.010 [4] Kausthubharam N., Koorata P.K., Panchal S., et al. (2023). Thermal management of large-sized LiFePO4 pouch cell using simplified mini-channel cold plates. Appl. Therm. Eng. 234:121286. DOI:10.1016/j.applthermaleng.2023.121286 [5] Guo Z., Wang Y., Zhao S., et al. (2023). Investigation of battery thermal management system with considering effect of battery aging and nanofluids. Int. J. Heat Mass Transfer 202:123685. DOI:10.1016/j.ijheatmasstransfer.2022.123685 [6] Heenan T.M.M., Mombrini I., Llewellyn A. et al. (2023). Mapping internal temperatures during high-rate battery applications. Nature. 617:507−512. DOI:10.1038/s41586-023-05913-z [7] Lu Z., Yu X., Zhang L., et al. (2018). Numerical investigation for hotspots of stagger-arranged lithium-ion battery stack with air cooling strategy. Journal of Xi'an Jiaotong University 52:25−31. DOI:10.7652/xjtuxb201807004 [8] Lu Z., Yu X., Wei L., et al. (2018). Parametric study of forced air cooling strategy for lithium-ion battery pack with staggered arrangement. Appl. Therm. Eng. 136:28−40. DOI:10.1016/j.applthermaleng.2018.02.080 [9] E J., Han D., Qiu A., et al. (2018). Orthogonal experimental design of liquid-cooling structure on the cooling effect of a liquid-cooled battery thermal management system. Appl. Therm. Eng. 132:508−520. DOI:10.1016/j.applthermaleng.2017.12.115 [10] Tan X., Lyu P., Fan Y., et al. (2021). Numerical investigation of the direct liquid cooling of a fast-charging lithium-ion battery pack in hydrofluoroether. Appl. Therm. Eng. 196:117279. DOI:10.1016/j.applthermaleng.2021.117279 [11] Choi H., Jun Y., Chun H., et al. (2024). Comprehensive feasibility study on metal foam use in single-phase immersion cooling for battery thermal management system. Appl. Energy 375:124083. DOI:10.1016/j.apenergy.2024.124083 [12] Pu J., Li Y., Li R., et al. (2024). Design and performance of a compact lightweight hybrid thermal management system using phase change material and liquid cooling with a honeycomb-like structure for prismatic lithium-ion batteries. J. Power Sources 624:235632. DOI:10.1016/j.jpowsour.2024.235632 [13] Bais A., Subhedar D., and Panchal S. (2024). Experimental investigations of a novel phase change material and nano enhanced phase change material based passive battery thermal management system for Li-ion battery discharged at a high C rate. J. Energy Storage 103:114395. DOI:10.1016/j.est.2024.114395 [14] Yu K., Yang X., Cheng Y., et al. (2014). Thermal analysis and two-directional air flow thermal management for lithium-ion battery pack. J. Power Sources 270:193−200. DOI:10.1016/j.jpowsour.2014.07.086 [15] Jose J., and Hotta, T.K. (2023). A comprehensive review of heat pipe: Its types, incorporation techniques, methods of analysis and applications. Therm. Sci. Eng. Prog. 42:101860. DOI:10.1016/j.tsep.2023.101860 [16] Behi H., Karimi D., Behi M., et al. (2020). A new concept of thermal management system in Li-ion battery using air cooling and heat pipe for electric vehicles. Appl. Therm. Eng. 174:115280. DOI:10.1016/j.applthermaleng.2020.115280 [17] He L., Tang X., Luo Q., et al. (2022). Structure optimization of a heat pipe-cooling battery thermal management system based on fuzzy grey relational analysis. Int. J. Heat Mass Transfer 182:121924. Doi:/10.1016/j.ijheatmasstransfer.2021.121924. DOI:10.1016/j.ijheatmasstransfer.2021.121924 [18] Jiang Z., Li H., Sun Z., et al. (2024). Experimental study on 18650 lithium-ion battery-pack cooling system composed of heat pipe and reciprocating air flow with water mist. Int. J. Heat Mass Trans. 222:125171. DOI:10.1016/j.ijheatmasstransfer.2024.125171 [19] Wang Y., Mu X., Xie Y., et al. (2023). A coupled model and thermo-electrical performance analysis for flat heat pipe-based battery thermal management system. Appl. Therm. Eng. 233:121116. DOI:10.1016/j.applthermaleng.2023.121116 [20] Wang J., Yu Y., Song L., et al. (2024). Thermal management performance and optimization of a novel system combining heat pipe and composite fin for prismatic lithium-ion batteries. Energy Convers. Manage. 302:118106. DOI:10.1016/j.enconman.2024.118106 [21] Abdelkareem M.A., Maghrabie H.M., Abo-Khalil A.G., et al. (2022). Thermal management systems based on heat pipes for batteries in EVs/HEVs. J. Energy Storage 51:104384. DOI:10.1016/j.est.2022.104384 [22] Pawlick M. and Peterson G. (2024). An analytical model of oscillating heat pipe performance. Therm. Sci. Eng. Prog. 50:102517. DOI:10.1016/j.tsep.2024.102517 [23] Zhao Y., Wang H., Diao Y., et al. (2011). Heat transfer characteristics of flat micro-heat pipe array. CIESC Journal 62:336−343. DOI:10.1631/jzus.A1000105 [24] Liang L., Zhao Y., Diao Y., et al. (2021). Inclined U-shaped flat micro heat pipe array configuration for cooling and heating lithium-ion battery modules in electric vehicles. Energy 235:121433. DOI:10.1016/j.energy.2021.121433 [25] Yang L., Xu H., Zhang H., et al. (2022). Numerical and experimental investigation on the performance of battery thermal management system based on micro heat pipe array. J. Therm. Sci. 31:1531−1541. Doi:/10.1007/s11630-022-1604-y. DOI:10.1007/s11630-022-1604-y [26] Chen M. and Li J. (2020). Nanofluid-based pulsating heat pipe for thermal management of lithium-ion batteries for electric vehicles. J. Energy Storage 32:101715. DOI:10.1016/j.est.2020.101715 [27] Zhang W., Qiu J., Yin X., et al. (2020). A novel heat pipe assisted separation type battery thermal management system based on phase change material. Appl. Therm. Eng. 165:114571. DOI:10.1016/j.applthermaleng.2019.114571 [28] Lei S., Shi Y. and Chen G. (2020). Heat-pipe based spray-cooling thermal management system for lithium-ion battery: Experimental study and optimization. Int. J. Heat Mass Transfer 163:120494. DOI:10.1016/j.ijheatmasstransfer.2020.120494 [29] Zhang Z. and Wei K. (2020). Experimental and numerical study of a passive thermal management system using flat heat pipes for lithium-ion batteries. Appl. Therm. Eng. 166:114660. DOI:10.1016/j.applthermaleng.2019.114660 [30] Wu Y., Liu Q., Tian D., et al. (2023). A review of coupling PCM modules with heat pipes for electronic thermal management. CIESC Journal 74:25−31. DOI:10.11949/0438-1157.20230069 [31] Wu Y., Jia J., Tian D., et al. (2020). Heat transfer performance of microgroove back plate heat pipes with working fluid and heating power. J. Therm. Sci. 29:982−991. DOI:10.1007/s11630-020-1336-9 [32] Ye Y., Saw L.H., Shi Y., et al. (2015). Numerical analyses on optimizing a heat pipe thermal management system for lithium-ion batteries during fast charging. Appl. Therm. Eng. 86:281−291. DOI:10.1016/j.applthermaleng.2015.04.066 [33] Gan Y., Wang J., Liang J., et al. (2020). Development of thermal equivalent circuit model of heat pipe-based thermal management system for a battery module with cylindrical cells. Appl. Therm. Eng. 164:114523. DOI:10.1016/j.applthermaleng.2019.114523 [34] Dan D., Li W., Zhang Y. and Xie Y. (2022). A quasi-dynamic model and thermal analysis for vapor chambers with multiple heat sources based on thermal resistance network model. Case Stud. Therm. Eng. 25:102110. DOI:10.1016/j.csite.2022.102110 [35] Sheng L., Su L., Zhang H., et al. (2019). An improved calorimetric method for characterizations of the specific heat and the heat generation rate in a prismatic lithium-ion battery cell. Energy Convers. Manage. 180:724−732. DOI:10.1016/j.enconman.2018.11.030 [36] Zhang H., Che F., Lin T., et al. (2019). Modeling, Analysis, Design, and Tests for Electronics Packaging beyond Moore. Zhang H., Che F., Lin T., and Zhao W. (eds). Thermal modeling, analysis, and design (Woodhead Publishing), pp: 59-129. Doi:10.1016/B978-0-08-102532-1.00003-2. [37] Yu H., Zhang H., Shi J., et al. (2023). Thermal parameters of cylindrical power batteries: Quasi-steady state heat guarding measurement and thermal management strategies. Appl. Therm. Eng. 231:120959. DOI:10.1016/j.applthermaleng.2023.120959 [38] Shi J., Zhang H., Yu H., et al. (2024). Experimental determination of heat generation rates of lithium-ion batteries by thermal protection method. Sci. CHINA Technol. SC 67:3647−3658. DOI:10.1007/s11431-023-2539-x [39] Xu Y., Zhang H., Xu X., et al. (2021). Numerical analysis and surrogate model optimization of air-cooled battery modules using double-layer heat spreading plates. Int. J. Energy Res. 176:121380. DOI:10.1016/j.ijheatmasstransfer.2021.121380 [40] Rivera D.R. and Moraga N.O. (2023). Turbulent mixed convection of air in a cavity with a heat-conducting inner solid: effect of surface radiation and thermal diffusivity on heat transfer and exergy destruction. Int. J. Mech. Sci. 218:107035. DOI:10.1016/j.ijmecsci.2021.107035 [41] Xu K., Zhang H., Zhu J., et al. (2023). Thermal management for battery module with liquid-cooled shell structure under highcharge/discharge rates and thermal runaway conditions. Batteries 9:204. DOI:10.3390/batteries9040204 [42] Zhang J. and Zhang H. (2000). Heat pipe technology and its engineering application (Chemical Industry Press). -
ABOUT THIS ARTICLE
Cite this article:
Zhang J., Zhang H., Xu S., et al. (2025). Role of heat-pipe thermal spreader on the thermal management of light-weight battery module and suppression of thermal runaway. The Innovation Energy 2:100082. https://doi.org/10.59717/j.xinn-energy.2025.100082
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(8)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Zhang J., Zhang H., Xu S., et al. (2025). Role of heat-pipe thermal spreader on the thermal management of light-weight battery module and suppression of thermal runaway. The Innovation Energy 2:100082. https://doi.org/10.59717/j.xinn-energy.2025.100082
Format
Content
-

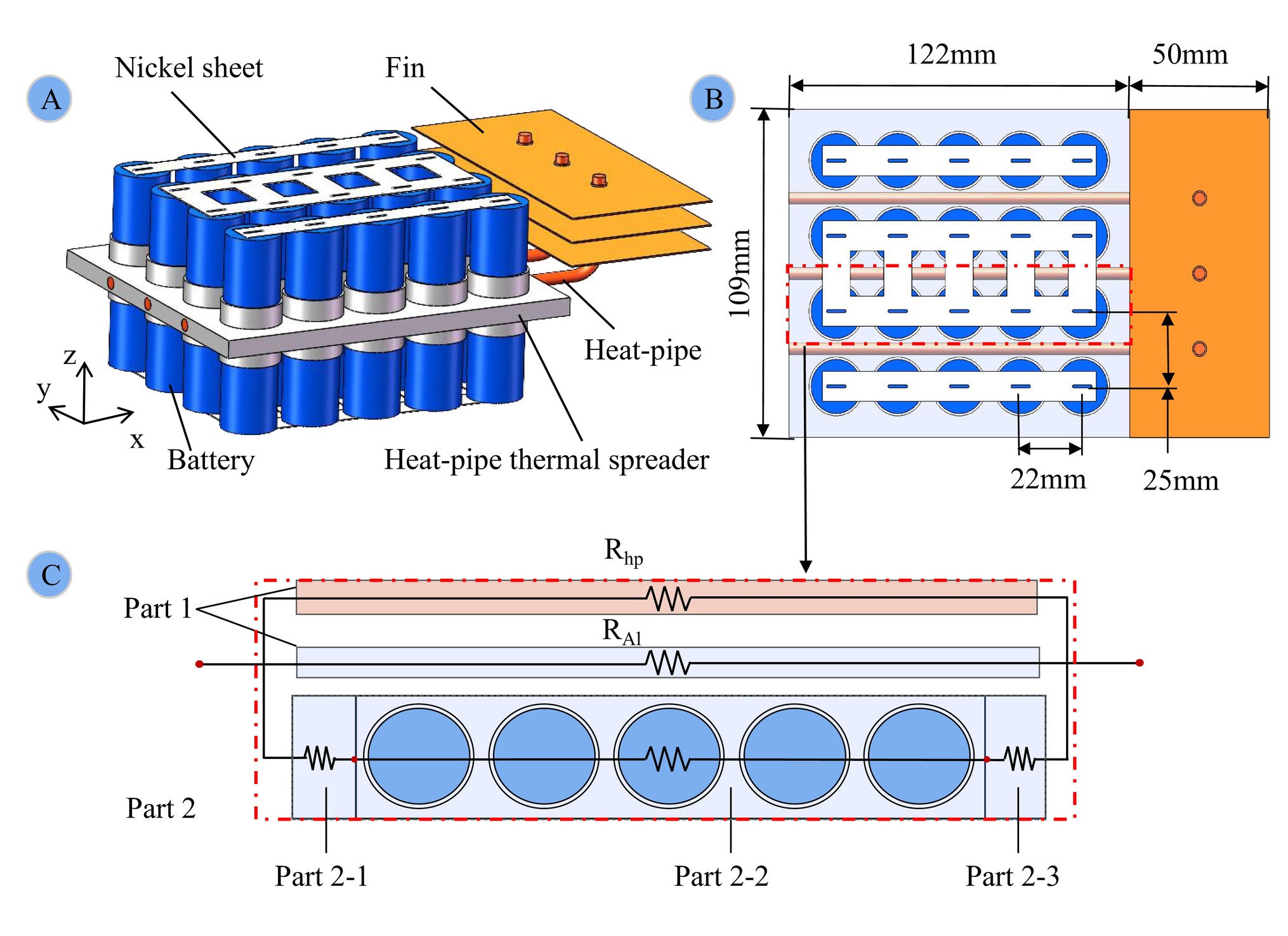

Figure 1.
Schematic diagram of a battery module using embedded L-shaped heat-pipes coupled with air cooling
-

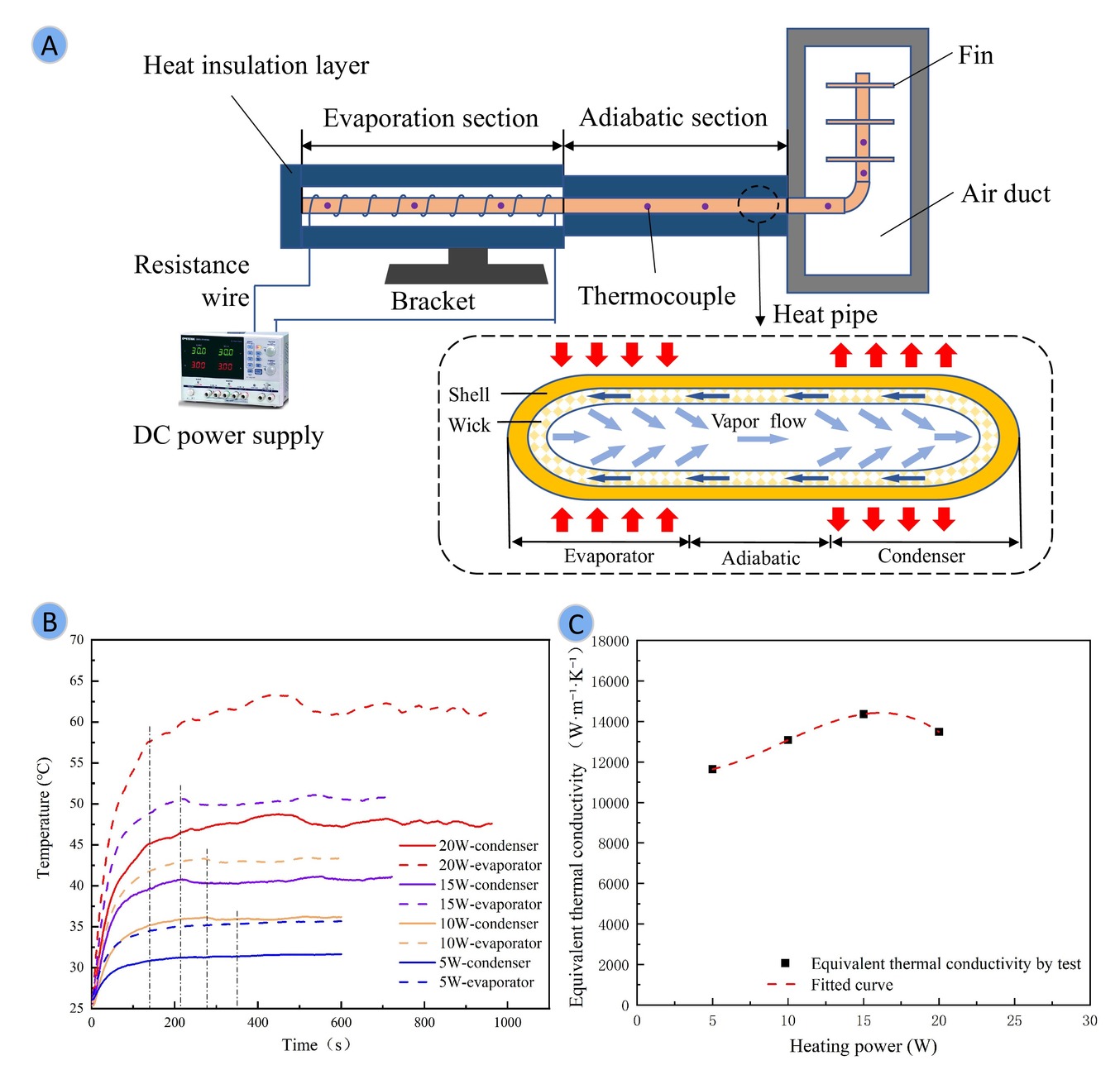

Figure 2.
Schematic diagram of the heat-pipe
-

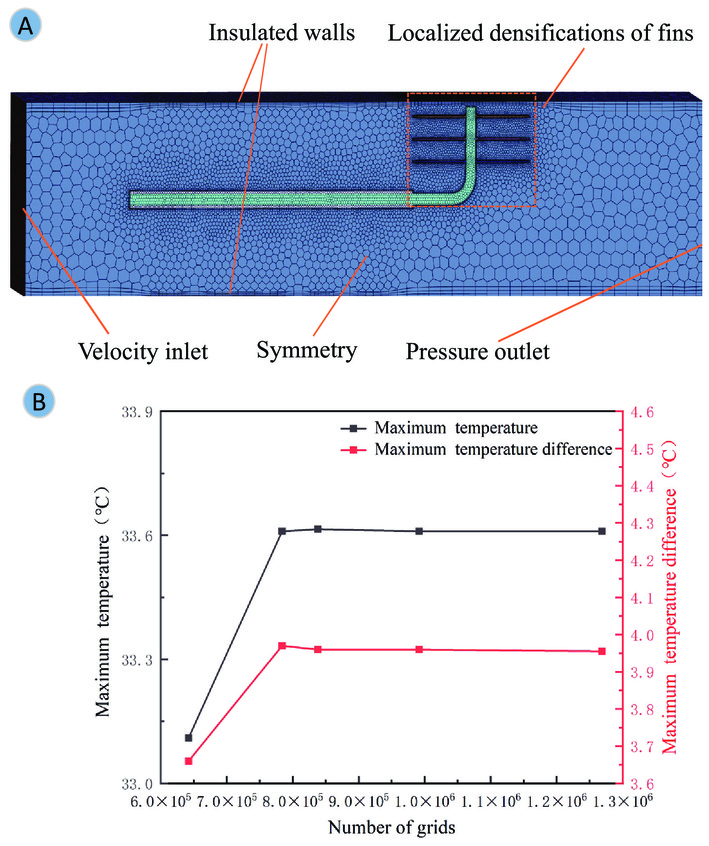

Figure 3.
Grid Independence Verification
-

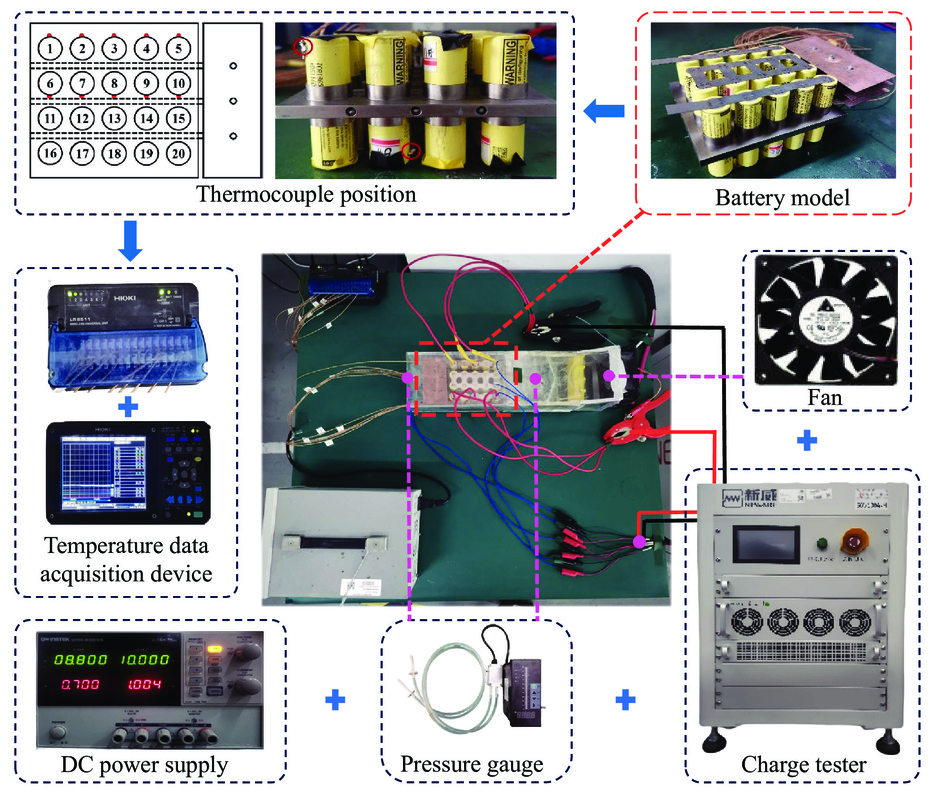

Figure 4.
Test setup diagram of the air-cooling battery module in combination with LHP-TSP
-

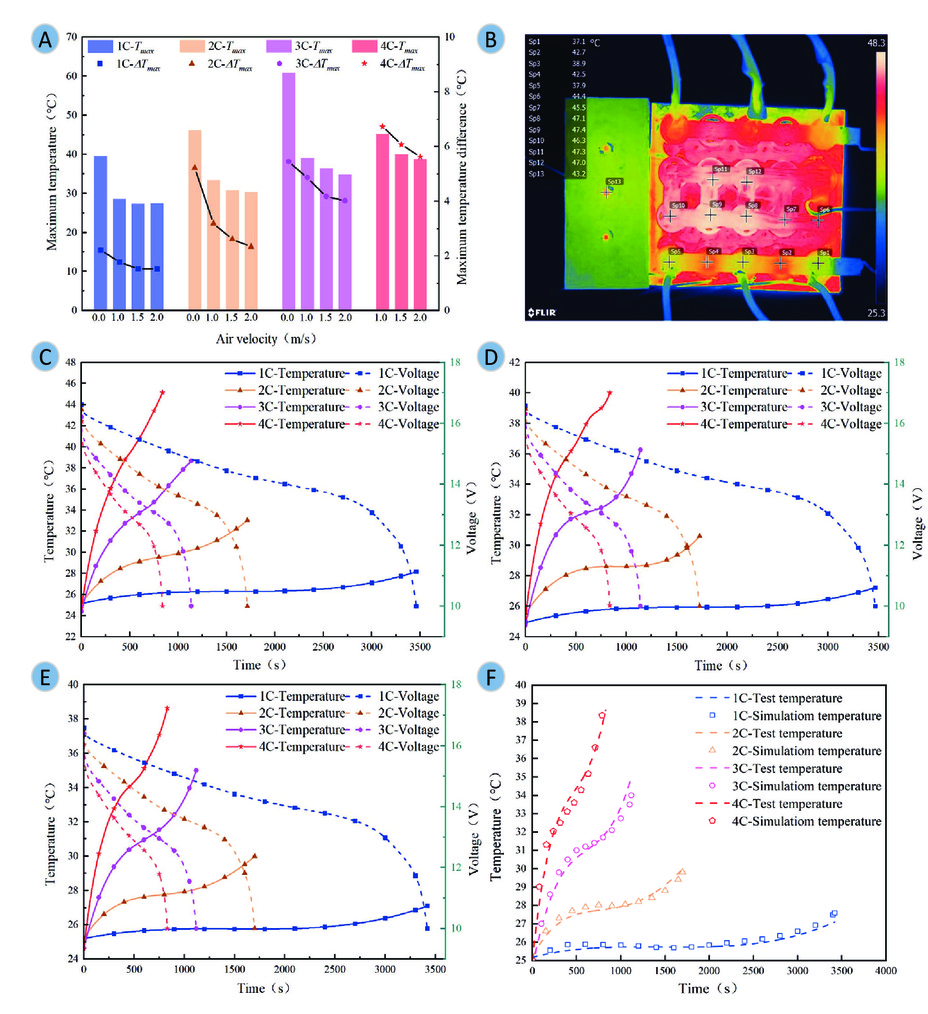

Figure 5.
Measured thermal characteristics
-

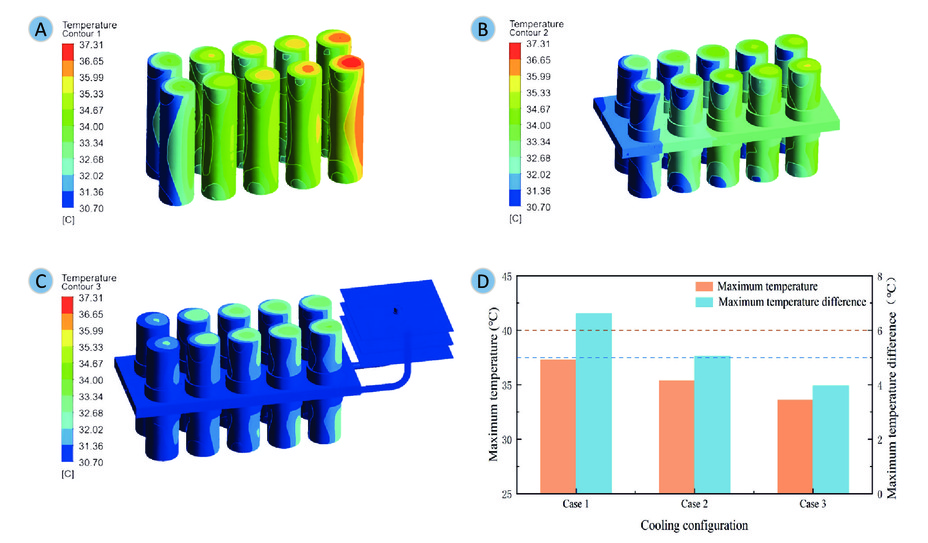

Figure 6.
Battery module temperature result under a discharge rate of 3C and an air velocity of 2m/s
-

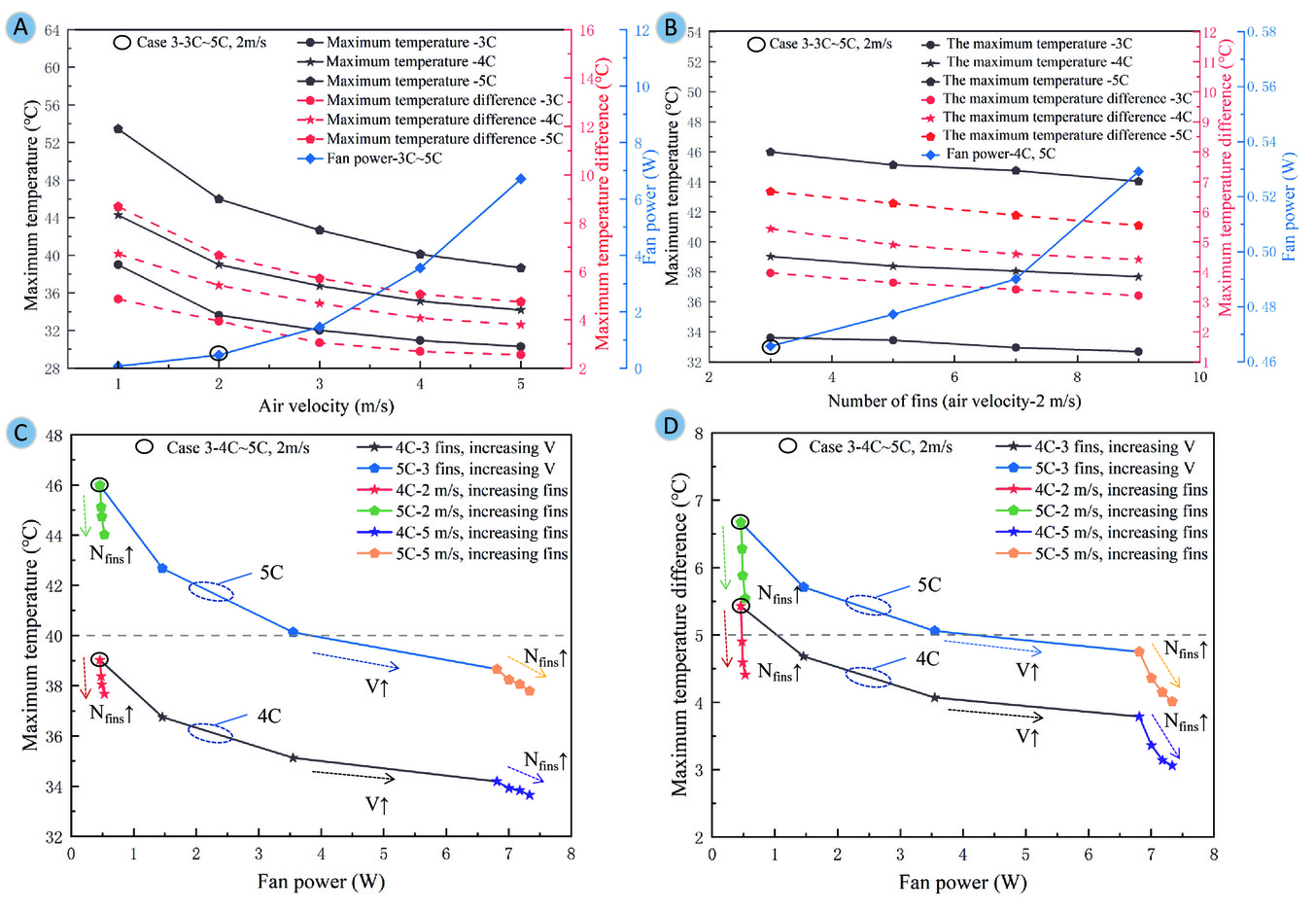

Figure 7.
Effects of air velocity and fin number variation on the thermal performance and fan power of the battery module for high C-rates
-

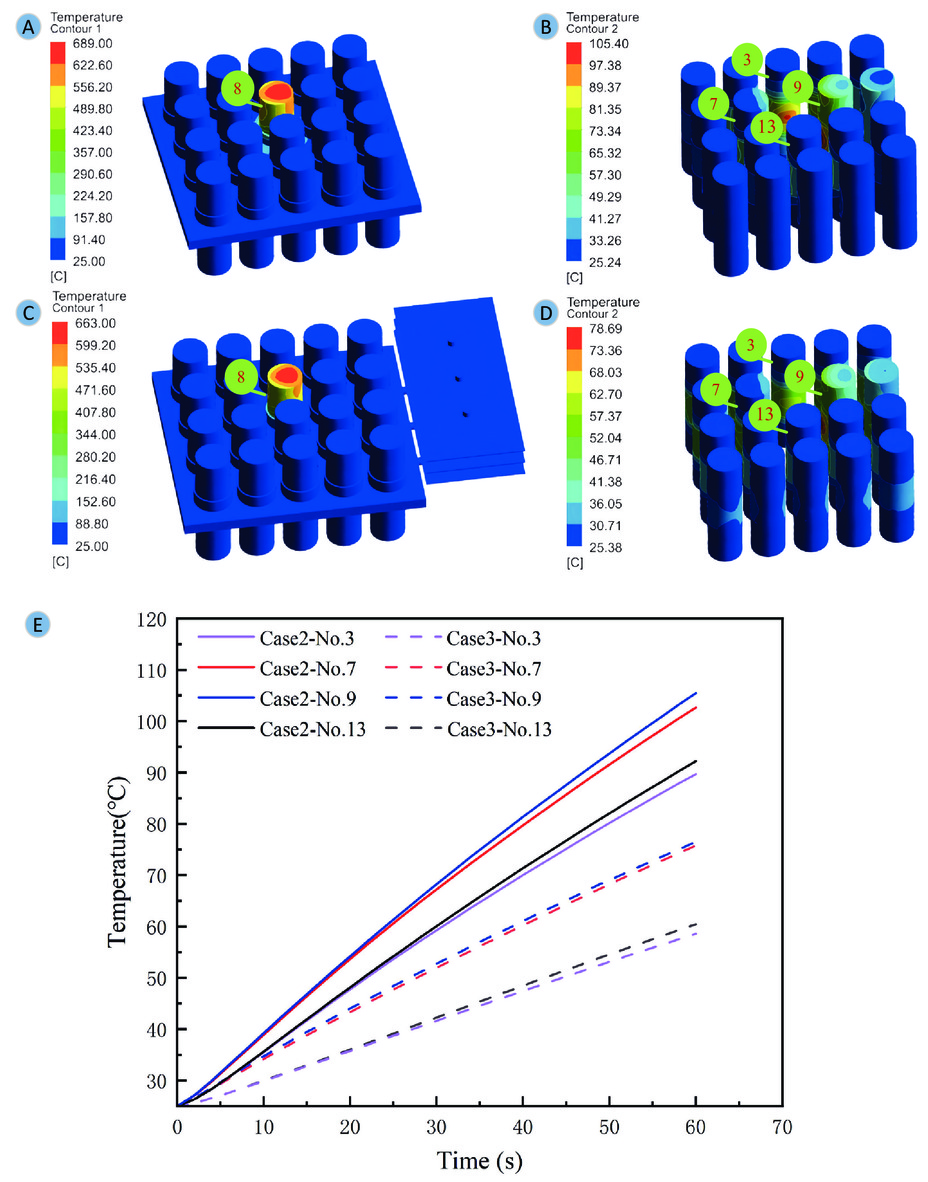

Figure 8.
The temperature profiles under thermal runaway of No.8 battery at 2m/s
