A preliminary study on graphical method of thermodynamic process parameters under dynamic boundary conditions
-

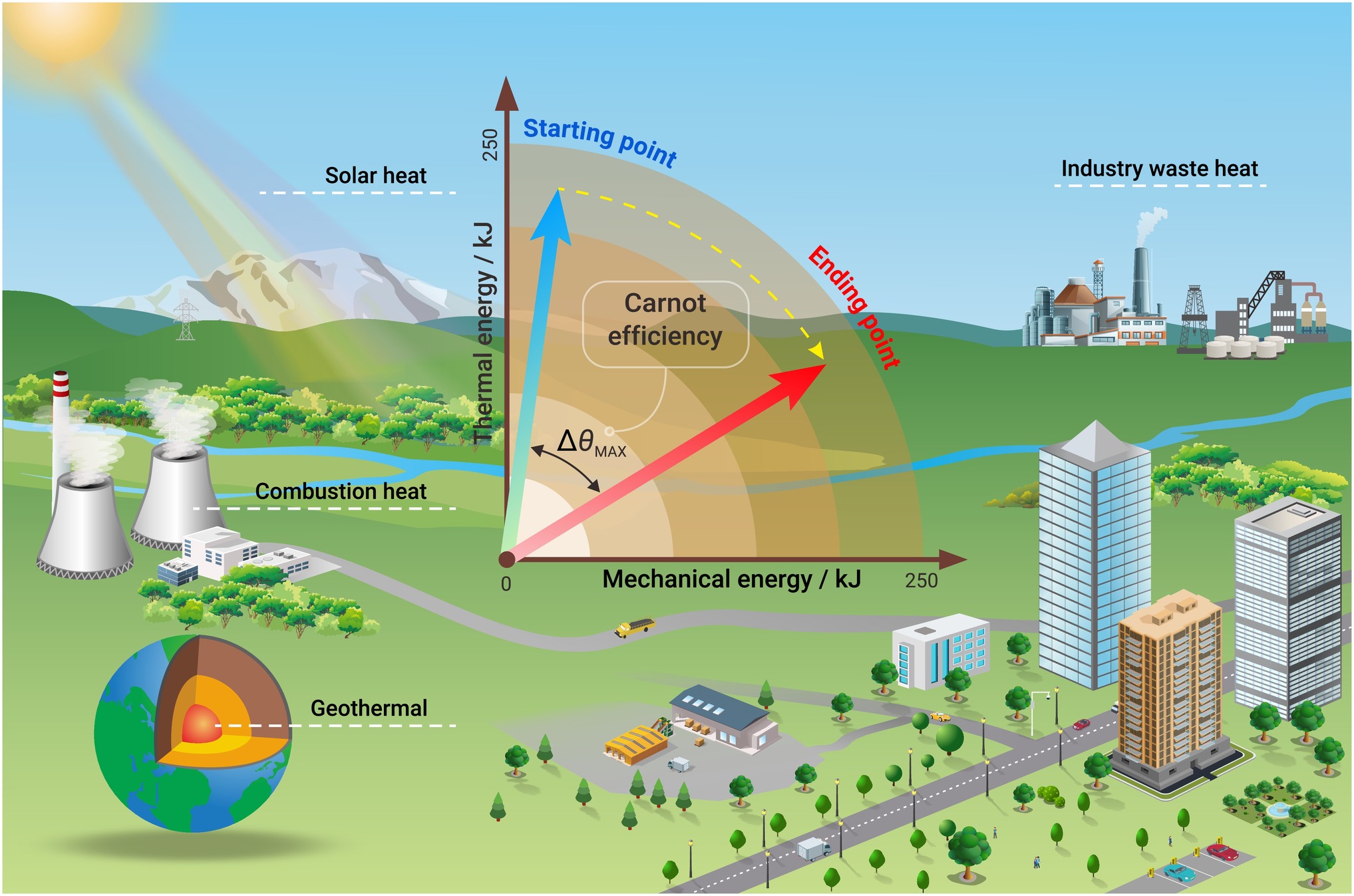

GRAPHICAL ABSTRACT
DownLoad:
Full size image
-
PUBLIC SUMMARY
-
Novel representation of thermodynamic laws through radius rotation in a circle.
Geometric parameters effectively describe system performance at all scales.
Coupled analysis method applicable across various energy conversion devices.
New dimension enables insights into multi-energy conversion processes.
-
-
ABSTRACT
Thermodynamic graphical methods are useful tools for visualizing thermodynamic state equations and are widely applied in the design and optimization of thermodynamic systems. However, the integration of renewable energy and thermal storage systems introduces finite heat capacity characteristics, resulting in continuous dynamic variations in system performance, which poses challenges to existing graphical methods. To accurately describe system performance under dynamic boundary conditions, this study investigates the continuous analysis characteristics of the Energy-Energy (E-E) diagram. Based on the ideal gas model, mathematical expressions for thermal and mechanical energy are derived, and systematic comparisons between E-E and Temperature (T)-Entropy (s) diagrams under finite heat capacity conditions are conducted, elucidating the intrinsic relationships among geometric parameters, initial boundary conditions, and system performance. Through parametric analysis, we reveal that increasing the initial heat reservoir temperature from 500 K to1500 K enhances the energy conversion potential, with the rotation angle increasing from 20.77° to 37.15°. Additionally, increasing the heat reservoir to cold reservoir capacity ratio results in a decreased rotation angle, indicating lower efficiency. The E-E diagram achieves visualization by analogizing energy conversion processes to the rotational motion of a radius in a circle. Compared to the T-s diagram, it employs lines and slopes instead of areas and area ratios, exhibiting advantages in analyzing varying boundary conditions. This complementary coupling provides a new perspective for describing dynamic energy conversion processes in thermodynamic systems. -
-
REFERENCES
[1] Song H., Wang H., Zheng H., et al. (2023). Analysis of cascade and hybrid processes for hydrogen production by full spectrum solar energy utilization. Energy Conv. Manag. 291:117289. DOI:10.1016/j.enconman.2023.117289 [2] Liang Z., Liang Y., Luo X., et al. (2024). Multi-objective optimization of proton exchange membrane fuel cell based methanol-solar-to-X hybrid energy systems. Appl. Energy 373:123828. DOI:10.1016/j.apenergy.2024.123828 [3] Jiao K., Xuan J., Du Q., et al. (2021). Designing the next generation of proton-exchange membrane fuel cells. Nature 595:361−369. DOI:10.1038/s41586-021-03482-7 [4] Yan H., Zhang C., Shao Z., et al. (2023). The Underestimated Role of the Heat Pump in Achieving China's Goal of Carbon Neutrality by 2060. Engineering 23:13−18. DOI:10.1016/j.eng.2022.08.015 [5] Yan H., Ahrens M.U., Hertwich E., et al. (2024). Heat pumps as a sustainable bridge for global heating and cooling at multi-scale. Energy Environ. Sci. 17:2081−2087. DOI:10.1039/d3ee04246d [6] Tang W., Xu S., Zhou X., et al. (2023). Meeting China's electricity demand with renewable energy over Tibetan Plateau. Sci. Bull. 68:39−42. DOI:10.1016/j.scib.2022.12.012 [7] Jiao F., Chen C., Liu T., et al. (2024). Insights of water-to-hydrogen conversion from thermodynamics. Innov. Energy 1:100004. DOI:10.59717/j.xinn-ener.2024.100004 [8] Liang H., Rehan M.A., Li J., et al. (2024). Kinetic simulation of hydrogen production reaction parameters based on TiO2 photocatalyst. Appl. Therm. Eng. 239:122134. DOI:10.1016/j.applthermaleng.2023.122134 [9] Liu H., Yu M., Tong X., et al. (2024). High Temperature Solid Oxide Electrolysis for Green Hydrogen Production. Chem. Rev. 124:10509−10576. DOI:10.1021/acs.chemrev.3c00795 [10] Chen R., Xu W., Deng S., et al. (2022). Energy quality and energy grade: concepts, applications and prospects. Oxford Open Energy 1:oiac001. DOI:10.1093/ooenergy/oiac001 [11] Lin M., Suter C., Diethelm S., et al. (2022). Integrated solar-driven high-temperature electrolysis operating with concentrated irradiation. Joule 6:2102−2121. DOI:10.1016/j.joule.2022.07.013 [12] Wang Y., Zhang L., Song Y., et al. (2024). State-of-the-art review on evaluation indicators of integrated intelligent energy from different perspectives. Renew. Sust. Energy Rev. 189:113835. DOI:10.1016/j.rser.2023.113835 [13] Wallington T.J., Woody M., Lewis G.M., et al. (2024). Green hydrogen pathways, energy efficiencies, and intensities for ground, air, and marine transportation. Joule 8:2190−2207. DOI:10.1016/j.joule.2024.07.012 [14] Huang Y., Chen J., Chen Y., et al. (2022). Performance explorations of an organic Rankine cycle featured with separating and mixing composition of zeotropic mixture. Energy 257:124535. DOI:10.1016/j.energy.2022.124535 [15] Liang Y., Guo Z., Luo X., et al. (2024). An adaptive CO2 Brayton-Rankine power cycle for efficient utilization of low environment temperature: A thermodynamic analysis and optimization study. J. Clean. Prod. 435:140547. DOI:10.1016/j.jclepro.2023.140547 [16] Huang Y., Chen J., Chen Y., et al. (2023). Performance explorations of a novel high temperature heat pump with multi-adjusted compositions of zeotropic mixture. Appl. Therm. Eng. 235:121409. DOI:10.1016/j.applthermaleng.2023.121409 [17] Chen J., Yang N., Li J., et al. (2024). Evaluations of heat pump water heater with liquid-separation condensation from perspectives of performance enhancement and heat exchange area reduction. Int. J. Refrig. 161:21−30. DOI:10.1016/j.ijrefrig.2024.02.026 [18] Akbar N.S., Rafiq M., Muhammad T., et al. (2024). Microbic flow analysis of nano fluid with chemical reaction in microchannel with flexural walls under the effects of thermophoretic diffusion. Sci. Rep. 14:50915. DOI:10.1038/s41598-023-50915-6 [19] Akbar N.S., Rafiq M., Muhammad T., et al. (2024). Electro osmotically interactive biological study of thermally stratified micropolar nanofluid flow for Copper and Silver nanoparticles in a microchannel. Sci. Rep. 14:51017. DOI:10.1038/s41598-023-51017-z [20] Akbar N.S., Rafiq M., Muhammad T., et al. (2024). Biological structural study for the blood casson fluid flow in catheterized diverging tapered stenosed arteries with emerging shaped nanoparticles: application in drug delivery. Microfluid. Nanofluid. 28:02735. DOI:10.1007/s10404-024-02735-x [21] Akbar N.S., Habib M.B., Rafiq M., et al. (2024). Biological structural study of emerging shaped nanoparticles for the blood flow in diverging tapered stenosed arteries to see their application in drug delivery. Sci. Rep. 14:51848. DOI:10.1038/s41598-024-51848-4 [22] Pattnaik P.K., Mishra S.R., Shamshuddin M., et al. (2024). Significant statistical model of heat transfer rate in radiative Carreau tri-hybrid nanofluid with entropy analysis using response surface methodology used in solar aircraft. Renew. Energy 237:121521. DOI:10.1016/j.renene.2024.121521 [23] Oreyeni T., Shamshuddin M.D., Obalalu A.M., et al. (2024). Exploring the impact of stratification fi cation on the dynamics of bioconvective thixotropic fluid conveying tiny particles and Cattaneo-Christov model: Thermal storage system application. Propul. Power Res. 13:416−432. DOI:10.1016/j.jppr.2024.08.002 [24] Sui Y., Lin H., Ding Z., et al. (2024). Compact, efficient, and affordable absorption Carnot battery for long-term renewable energy storage. Appl. Energy 357:122504. DOI:10.1016/j.apenergy.2023.122504 [25] Akbar N.S., Akram J., Hussain M.F., et al. (2024). Thermal storage study and enhancement of heat transfer through hybrid Jeffrey nanofluid flow in ducts under peristaltic motion with entropy generation. Therm. Sci. Eng. Prog. 49:102463. DOI:10.1016/j.tsep.2024.102463 [26] Dhange M., Devi C.U., Jamshed W., et al. (2024). Studying the effect of various types of chemical reactions on hydrodynamic properties of dispersion and peristaltic flow of couple-stress fluid: Comprehensive examination. J. Mol. Liq. 409:125542. DOI:10.1016/j.molliq.2024.125542 [27] Akbar N.S., Zamir T., Muhammad T. (2024). Levenberg-Marquardt technique analysis of thermal and concentration storage in cone-disk apparatus with neural network-enhancement. Therm. Sci. Eng. Prog. 50:102529. DOI:10.1016/j.tsep.2024.102529 [28] Akbar N.S., Zamir T., Akram J., et al. (2024). Simulation of hybrid boiling nano fluid flow with convective boundary conditions through a porous stretching sheet through Levenberg Marquardt artificial neural networks approach. Int. J. Heat Mass Transf. 228:125615. DOI:10.1016/j.ijheatmasstransfer.2024.125615 [29] Alghamdi M., Akbar N.S., Zamir T., et al. (2024). Double layered combined convective heated flow of Eyring-Powell fluid across an elevated stretched cylinder using intelligent computing approach. Case Stud. Therm. Eng. 54:104009. DOI:10.1016/j.csite.2024.104009 [30] Wang Y., Zhao J., Chen G., et al. (2018). A new understanding on thermal efficiency of organic Rankine cycle: Cycle separation based on working fluids properties. Energy Conv. Manag. 157:169−175. DOI:10.1016/j.enconman.2017.11.079 [31] Su W., Zhao L., Deng S., et al. (2018). A limiting efficiency of subcritical Organic Rankine cycle under the constraint of working fluids. Energy 143:458−466. DOI:10.1016/j.energy.2017.11.003 [32] Guo H., Xu Y., Li Y., et al. (2023). A symmetry analysis methodology for general energy conversion systems. Commun. Eng. 2:49. DOI:10.1038/s44172-023-00096-x [33] Clapeyron É. (1834). Mémoire sur la puissance motrice de la chaleur. J. École Polytech. 23:153−190. [34] Mollier R. (1923). Ein neues Diagramm fuer Dampf-luft-gemische. Z. Ver. Dtsch. Ing. 67:869. [35] Gibbs J.W. (1928). The Collected Works of J. Willard Gibbs, Vol. 1:Thermodynamics (Yale University Press). [36] Nie X., Xue J., Zhao L., et al. (2024). New insight of thermodynamic cycle in thermoelectric power generation analyses: Literature review and perspectives. Energy 292:130553. DOI:10.1016/j.energy.2024.130553 [37] Chen R., Deng S., Xu W., et al. (2020). A graphic analysis method of electrochemical systems for low-grade heat harvesting from a perspective of thermodynamic cycles. Energy 191:116547. DOI:10.1016/j.energy.2019.116547 [38] Lu P., Luo X., Wang J., et al. (2022). Thermodynamic analysis and evaluation of a novel composition adjustable Carnot battery under variable operating scenarios. Energy Conv. Manag. 269:116117. DOI:10.1016/j.enconman.2022.116117 [39] Li J., Chen X., Shen J., et al. (2024). Optimal heat storage temperature and performance of ORC-based Carnot battery at various application scenarios. Energy Conv. Manag. 318:118906. DOI:10.1016/j.enconman.2024.118906 [40] Huang K., Chen R., Xu W., et al. (2024). Novel Graphical Expression Method of Thermodynamic Process Parameters: Methodology and Case Study. Energy 314:134249. DOI:10.1016/j.energy.2024.134249 [41] Bejan A. (2006). Advanced Engineering Thermodynamics, 3rd ed. (John Wiley & Sons). [42] Boltzmann L. (1877). Über die Natur der gasmoleküle. Ann. Phys. 236:175−176. DOI:10.1002/andp.18772360120 [43] Mayer J.R. (1842). Bemerkungen über die Kräfte der unbelebten Natur. Liebigs Ann. Chem. 236:175−176. DOI:10.1002/andp.18772360120 [44] Clausius R. (1850). Über die bewegende Kraft der Wärme und die Gesetze, welche sich daraus für die Wärmelehre selbst ableiten lassen. Ann. Phys. 155:368−397. DOI:10.1002/andp.18501550306 [45] Clausius R. (1865). The Mechanical Theory of Heat – with its Applications to the Steam Engine and to Physical Properties of Bodies (John van Voorst). [46] Ma Y. (2020). Effect of Finite-Size Heat Source's Heat Capacity on the Efficiency of Heat Engine. Entropy 22:1002. DOI:10.3390/e22091002 [47] Lu P., Luo X., Wang J., et al. (2022). Thermodynamic analysis and evaluation of a novel composition adjustable Carnot battery under variable operating scenarios. Energy Conv. Manag. 269:116117. DOI:10.1016/j.enconman.2022.116117 [48] Ishida M., Kawamura K. (1982). Energy and exergy analysis of a chemical process system with distributed parameters based on the enthalpy-direction factor diagram. Ind. Eng. Chem. Process Des. Dev. 21:690−695. DOI:10.1021/i200019a025 [49] Zheng D., Wu Z., Huang W., et al. (2017). Energy quality factor of materials conversion and energy quality reference system. Appl. Energy 185:768−778. DOI:10.1016/j.apenergy.2016.10.103 [50] Jiang X., Wang X., Feng L., et al. (2017). Adapted computational method of energy level and energy quality evolution for combined cooling, heating and power systems with energy storage units. Energy 120:209−216. DOI:10.1016/j.energy.2016.12.124 [51] Wang Z., Han W., Zhang N., et al. (2018). Energy level difference graphic analysis method of combined cooling, heating and power systems. Energy 160:1069−1077. DOI:10.1016/j.energy.2018.07.026 -
ABOUT THIS ARTICLE
Cite this article:
Huang K., Huang Z., Chen R., et al. (2025). A preliminary study on graphical method of thermodynamic process parameters under dynamic boundary conditions. The Innovation Energy 2:100084. https://doi.org/10.59717/j.xinn-energy.2025.100084
Welcome!
To request copyright permission to republish or share portions of our works, please visit Copyright Clearance Center's (CCC) Marketplace website at marketplace.copyright.com.
Figures(6)
Tables(2)
Article Metrics
Relative Articles
Cited by
Export File
Citation
Huang K., Huang Z., Chen R., et al. (2025). A preliminary study on graphical method of thermodynamic process parameters under dynamic boundary conditions. The Innovation Energy 2:100084. https://doi.org/10.59717/j.xinn-energy.2025.100084
Format
Content
-

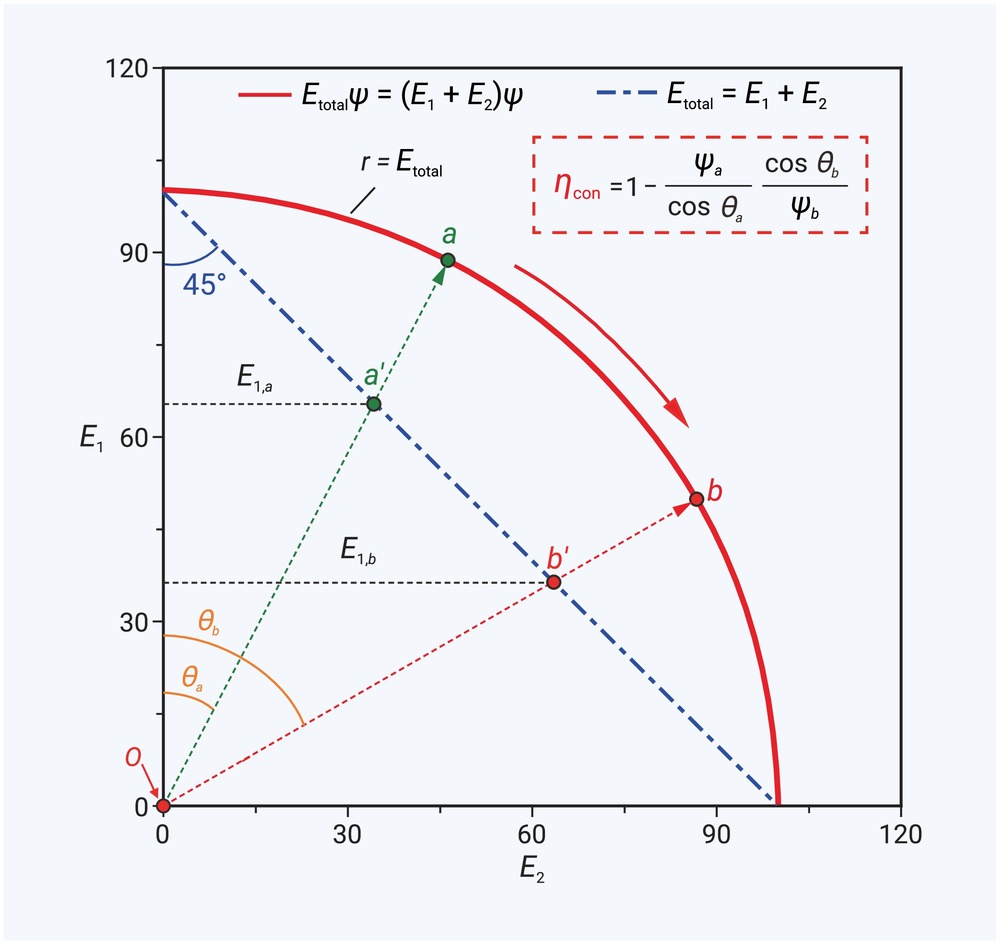

Figure 1.
Principles of E-E diagram
-

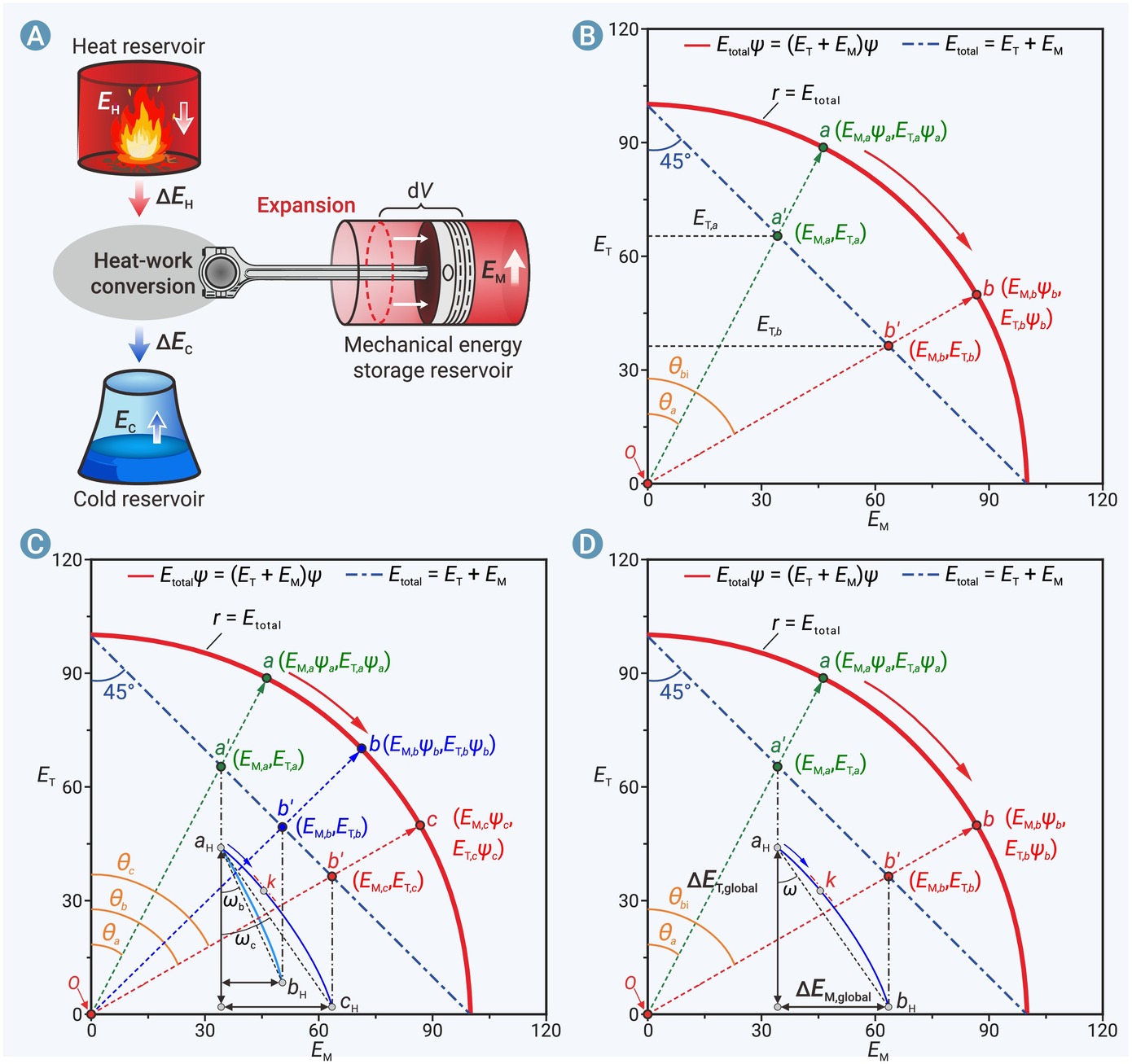

Figure 2.
Schematic and graphical representation of heat-work conversion process
-

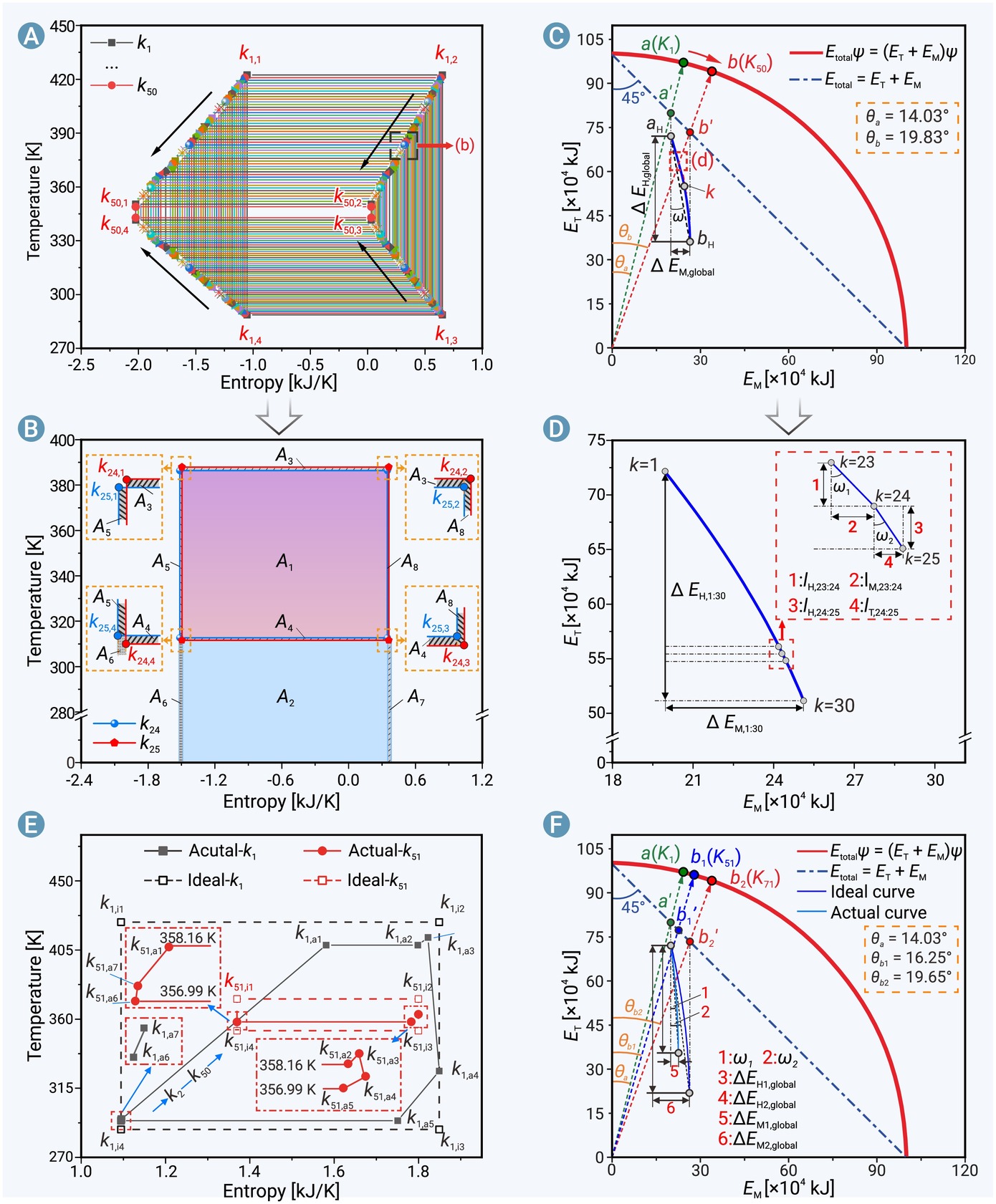

Figure 3.
Graphical comparison between T-s diagram and E-E diagram. Ideal working conditions
-

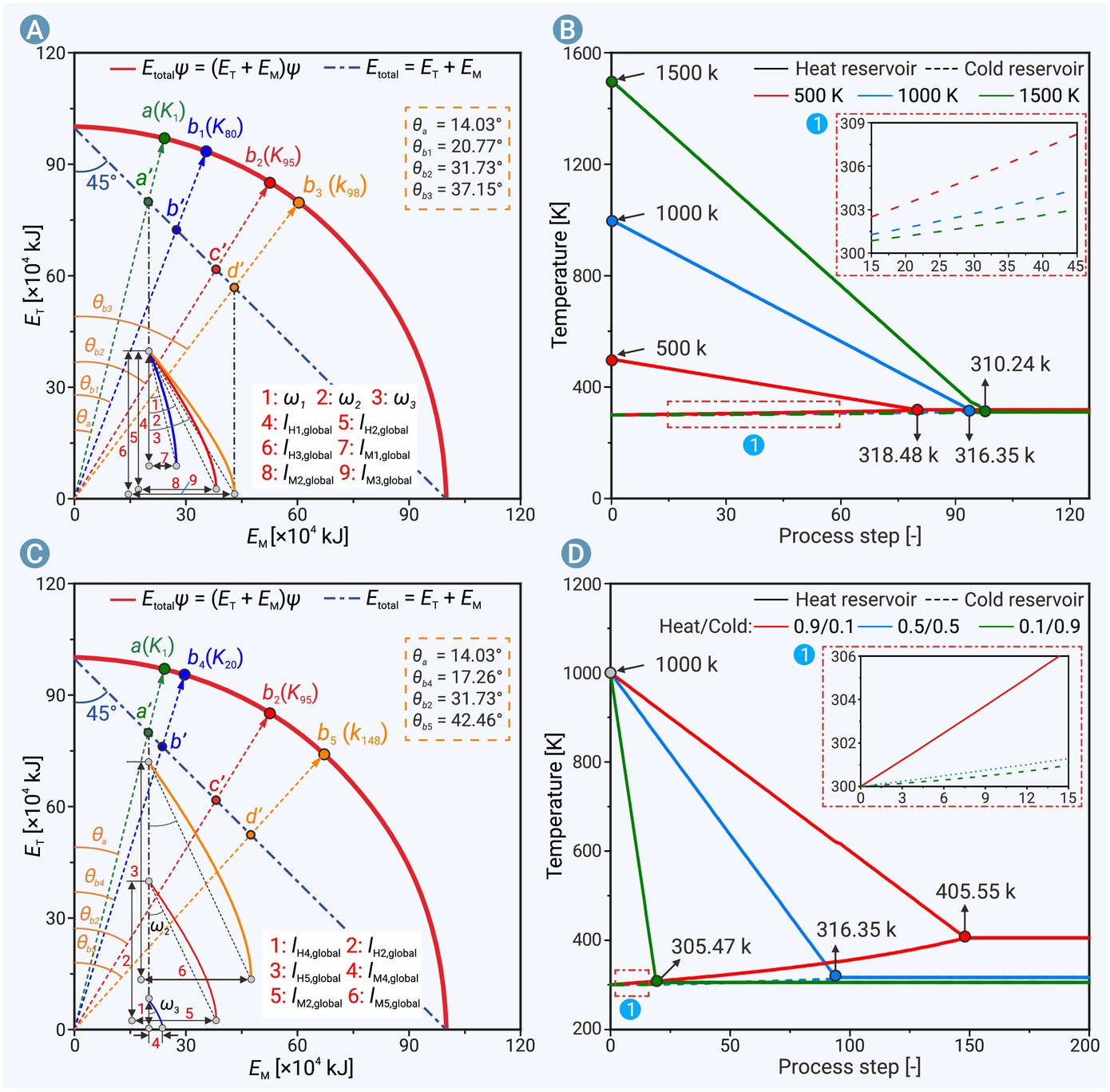

Figure 4.
Graphical representation under different working conditions
-

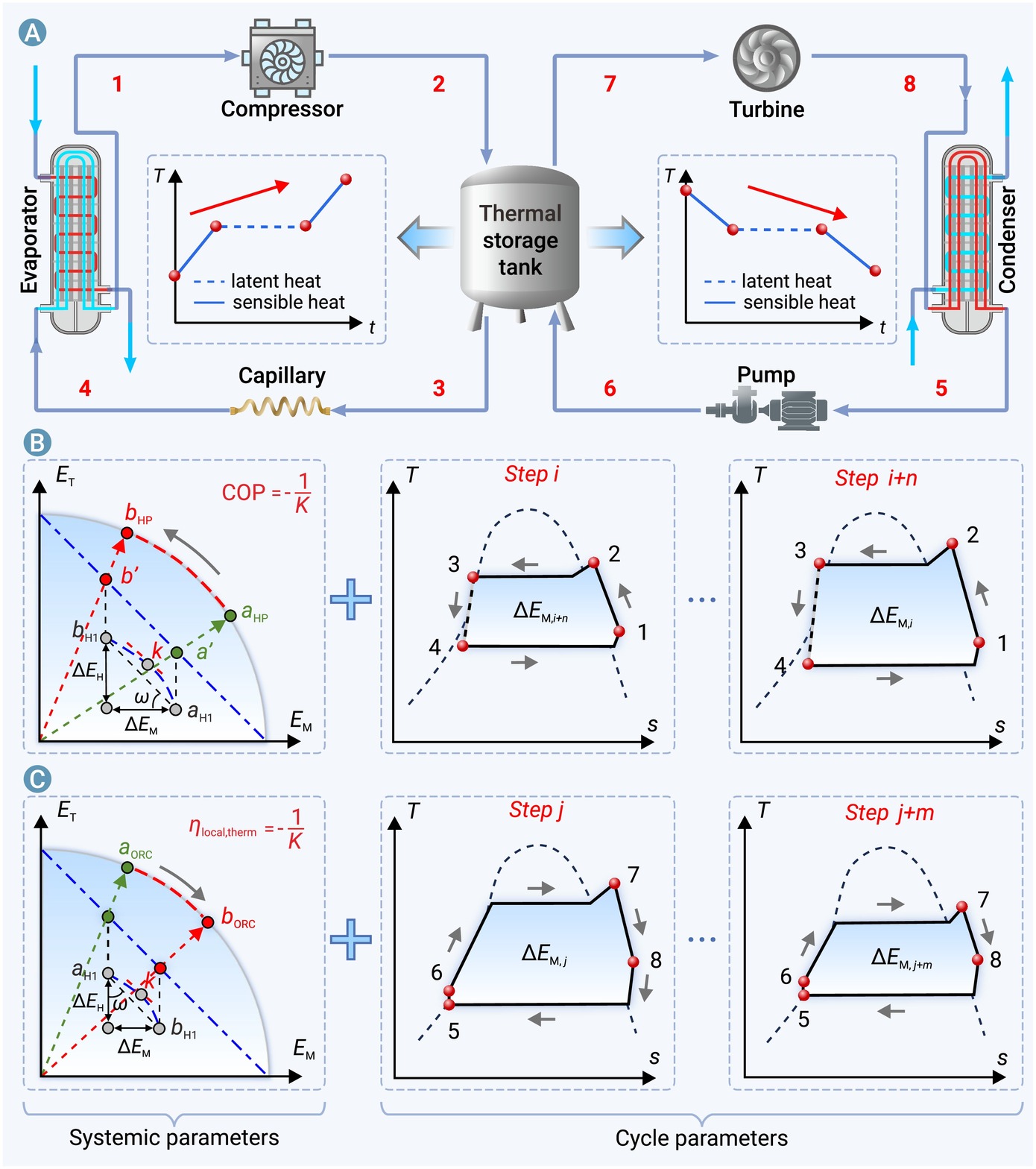

Figure 5.
Potential application of E-E diagram
-

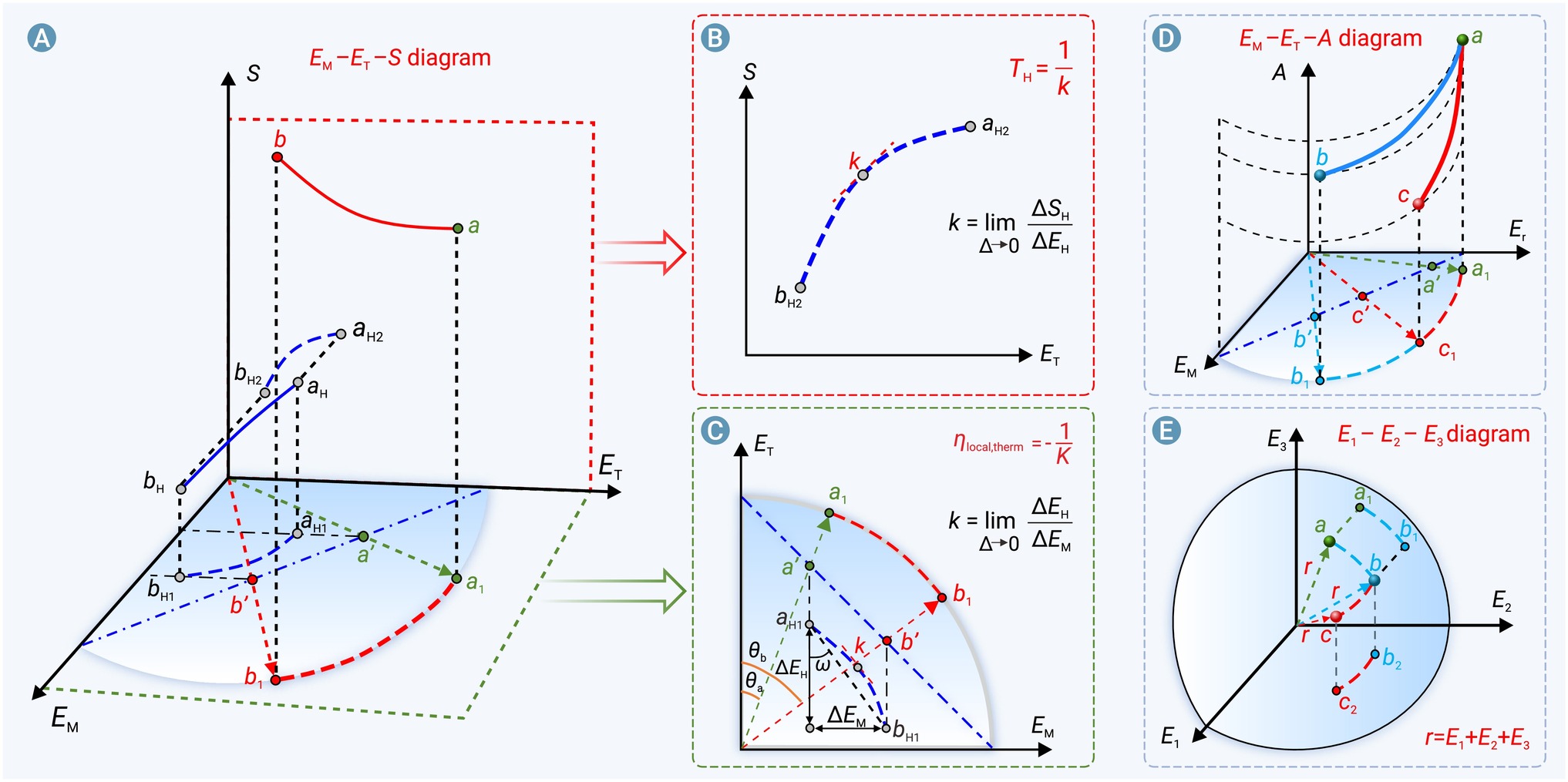

Figure 6.
Extension of E-E diagram
