Novel high-density dynamic membranes break the energy-space trade-off in next-generation membrane bioreactor systems (MBRs)

Yanqing Zhang; Yuxiang Liang; Ying Chen; Zhesong Zhou; Pingli Li; Dongqing Zhan; Chenxuan Lou; Yangcheng Ding; Yijing Xia; Wei Sun; Yao Feng; Jionghui Li; Huajun Feng

doi:10.59717/j.tiw.2026.100012

The Innovation Water > Accepted

ARTICLE Open Access

Cite PDF

Novel high-density dynamic membranes break the energy-space trade-off in next-generation membrane bioreactor systems (MBRs)

1.
School of Environmental Science and Engineering, Zhejiang Gongshang University, Hangzhou 310018, China
2.
College of Environment and Resources, College of Carbon Neutral, Zhejiang Agriculture and Forestry University, Hangzhou 311300, China
3.
Zhejiang Bainuo Digital Intelligence Environmental Technology Co., Ltd., Hangzhou 310061, China
4.
Hangzhou Hua JIA Chi Environmental Protection Technology Engineering Co., Ltd., Hangzhou 310000, China
5.
Sino-Spain Joint Laboratory for Agricultural Environment Emerging Contaminants of Zhejiang Province, Hangzhou 311300, China
6.
These authors contributed equally

Show all affliationsShow less

More Information

Corresponding authors: fenghuajun@zafu.edu.cn (H.F.); Lijionghui@zafu.edu.cn (J.L.)
Received Date: April 10, 2026

Accepted Date: August 18, 2026

Published Online: August 18, 2026

The Innovation Water https://doi.org/10.59717/j.tiw.2026.100012 | Cite this article

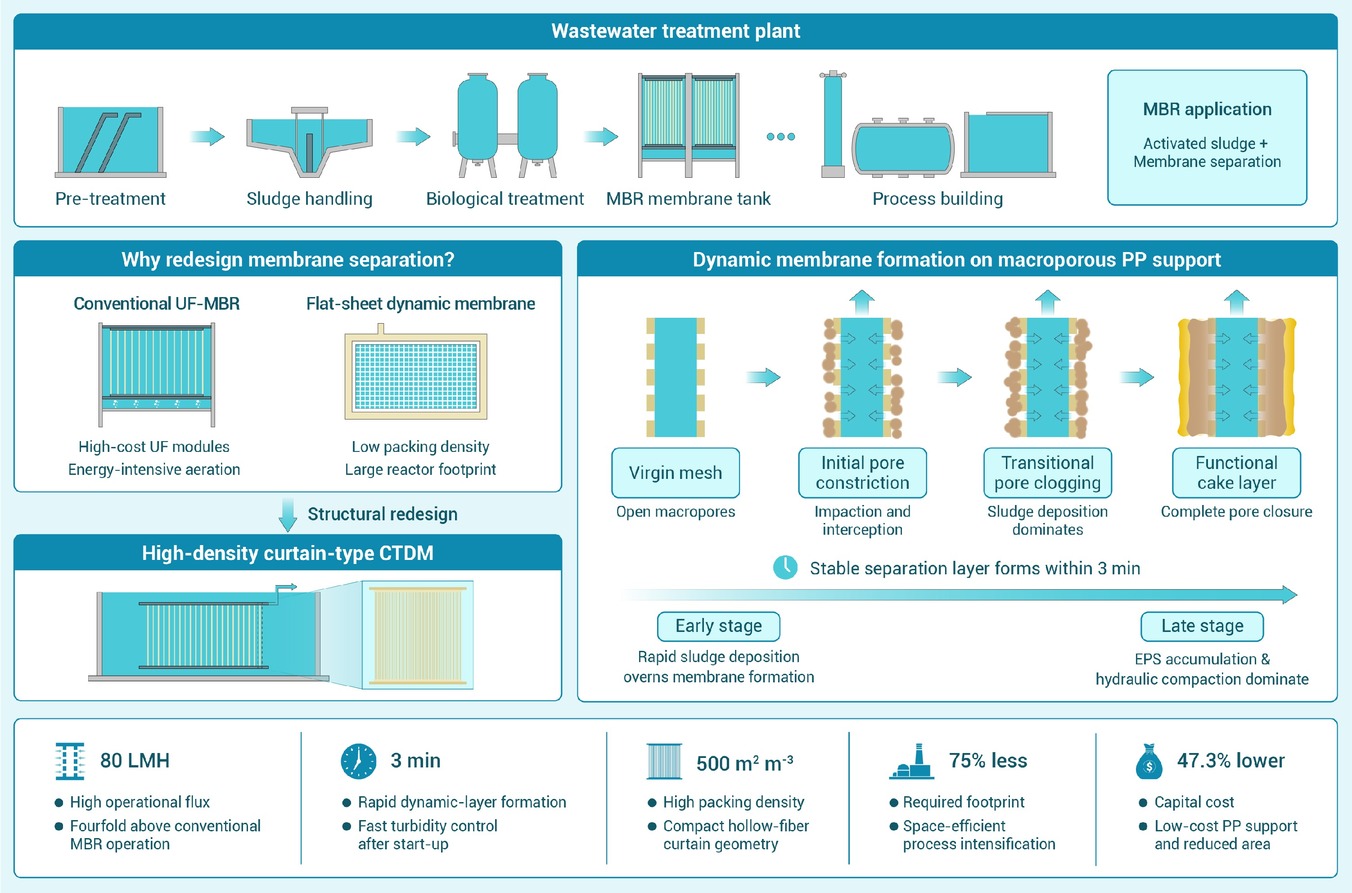

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT

DownLoad: Full size image

PUBLIC SUMMARY

PUBLIC SUMMARY

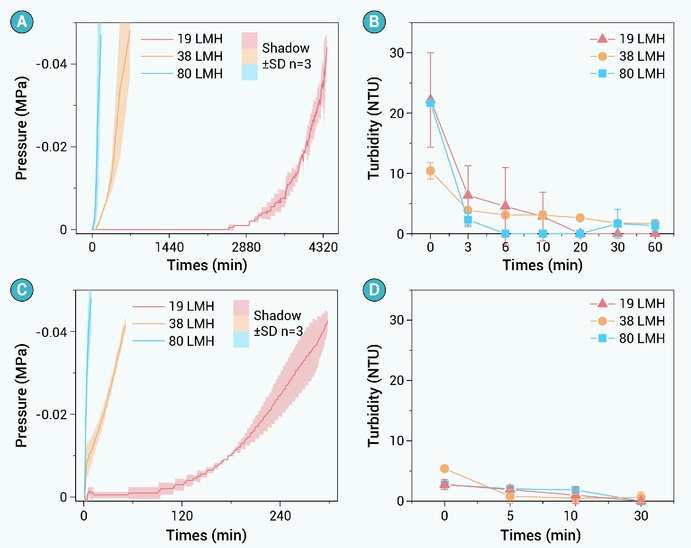

1. 73 h stable operation at 19 LMH, compared with 5 h for the initial operating period.

  Effluent turbidity fell below 10 NTU within 3 min and below 5 NTU within 30 min.

  Maximum tested CTDM flux reached 80 LMH, versus 15 LMH for the PVDF control.

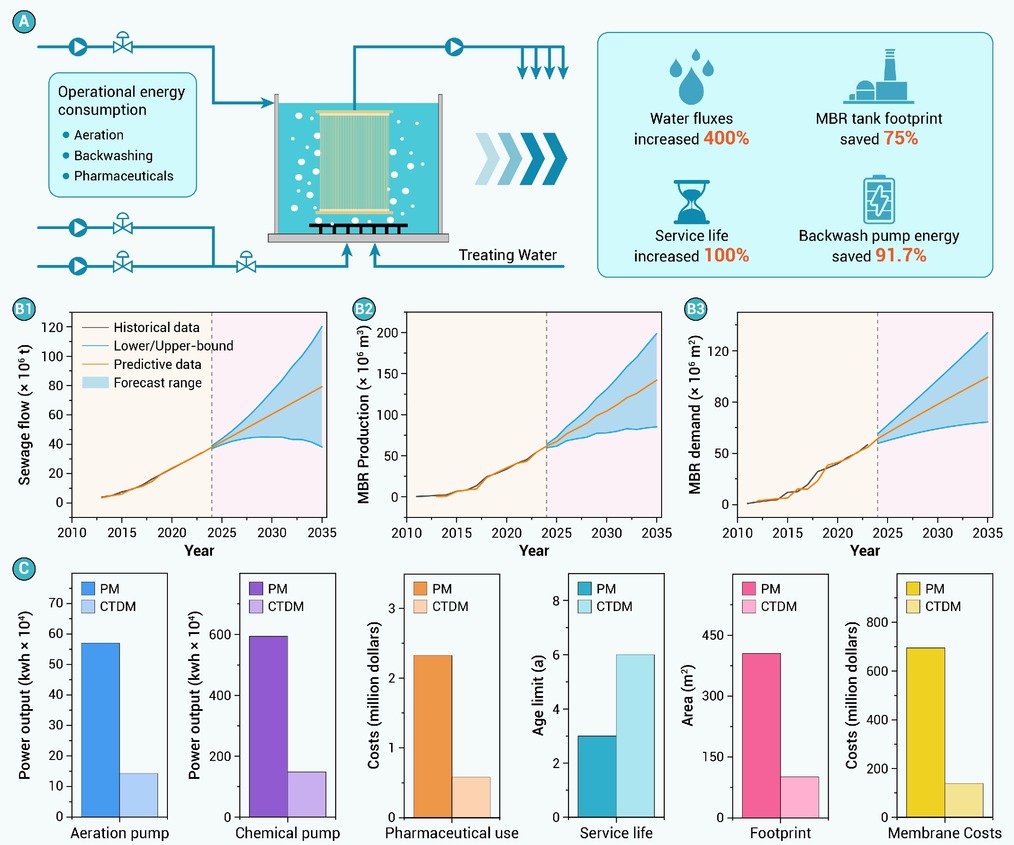

  High-density geometry provided about 500 m^2·m^-3 membrane area and an estimated 47.3% CAPEX reduction.

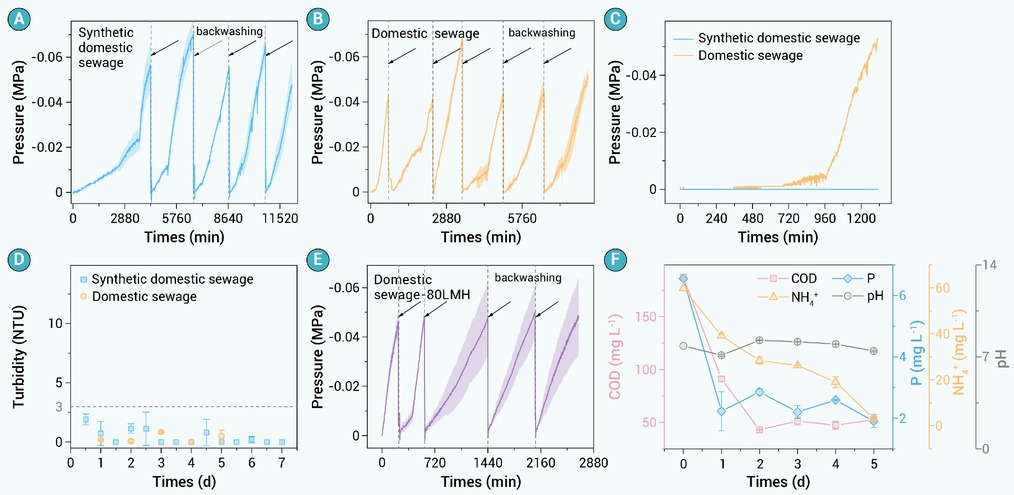

  Pilot operation with municipal sewage verified technical feasibility.

ABSTRACT

ABSTRACT

Membrane bioreactors (MBRs) are pivotal for advanced wastewater treatment, yet conventional ultrafiltration membranes face challenges of high cost, energy-intensive operation, and limited flux. The emerging dynamic membrane filtration technology in recent years addresses these limitations, but flat-sheet dynamic membranes still face challenges in engineering applications due to their large footprint. This study introduces a novel hollow fiber curtain-type dynamic membrane (CTDM) fabricated from polypropylene (PP), designed to overcome these limitations. At a flux of 19 L·m^-2·h^-1(LMH), the CTDM presents excellent hydraulic stability, with its steady operating duration extended 14 times (73 h vs. 5 h). It also achieves rapid turbidity removal: the effluent turbidity decreases to below 10 NTU within 3 minutes, drops below 5 NTU within 30 minutes, and further falls to less than 3 NTU within 60 minutes. Scale-up experiments using domestic sewage validated the technical feasibility of the CTDM. From an engineering economics perspective, the CTDM achieves 47.3% capital cost reduction compared to conventional MBR systems through enhanced space efficiency (500 m²·m^-3 vs. < 200 m²·m^-3 reactor volume). This study provides theoretical and practical support for the engineering application of dynamic membrane and is expected to promote the further development of MBR technology.
- Membrane bioreactors (MBRs) /
- Dynamic Membrane /
- High-Density /
- Hollow Fiber curtain-type /
- Techno-economic feasibility

FullText(HTML)

REFERENCES

[1]	Gharibian S. and Hazrati H. (2022). Towards practical integration of MBR with electrochemical AOP: Improved biodegradability of real pharmaceutical wastewater and fouling mitigation. Water Res. 218:118478. DOI:10.1016/j.watres.2022.118478 View in Article CrossRef Google Scholar
[2]	Ni L., Wang P., Westerhoff P., et al. (2024). Mechanisms and strategies of advanced oxidation processes for membrane fouling control in MBRs: Membrane-foulant removal versus mixed-liquor improvement. Environ. Sci. & Technol. 58:11213−11235. DOI:10.1021/acs.est.4c02659 View in Article CrossRef Google Scholar
[3]	He H., Xin X., Qiu W., et al. (2022). Role of nano-Fe₃O₄ particle on improving membrane bioreactor (MBR) performance: Alleviating membrane fouling and microbial mechanism. Water Res. 209:117897. DOI:10.1016/j.watres.2021.117897 View in Article CrossRef Google Scholar
[4]	Li L., Xu G., Yu H., et al. (2018). Dynamic membrane for micro-particle removal in wastewater treatment: Performance and influencing factors. Sci. Total Environ. 627:332−340. DOI:10.1016/j.scitotenv.2018.01.239 View in Article CrossRef Google Scholar
[5]	Fan B. and Huang X. (2002). Characteristics of a self-forming dynamic membrane coupled with a bioreactor for municipal wastewater treatment. Environ. Sci. Technol. 36:5245−5251. DOI:10.1021/es025789n View in Article CrossRef Google Scholar
[6]	Kizilet A., Yurtsever A., Cirik K., et al. (2022). Cake layer reformation rates on self forming dynamic membranes and performance comparison with microfiltration membranes. Sci. Total Environ. 838:156384. DOI:10.1016/j.scitotenv.2022.156384 View in Article CrossRef Google Scholar
[7]	Cai D., Huang J., Liu G., et al. (2018). Effect of support material pore size on the filtration behavior of dynamic membrane bioreactor. Bioresour. Technol. 255:359−363. DOI:10.1016/j.biortech.2018.02.007 View in Article CrossRef Google Scholar
[8]	Mahat S. B., Omar R., Lee J. L., et al. (2020). Effect of pore size of monofilament woven filter cloth as supporting material for dynamic membrane filtration on performance using aerobic membrane bioreactor technology. ASIA-PAC J. Chem. Eng. 15:e2453. DOI:10.1002/apj.2453 View in Article CrossRef Google Scholar
[9]	Ersahin M. E., Ozgun H. and van Lier J. B. (2013). Effect of support material properties on dynamic membrane filtration performance. Sep. Sci. Technol. 48:2263−2269. DOI:10.1080/01496395.2013.804840 View in Article CrossRef Google Scholar
[10]	Gilcreas F. W. (1966). Standard methods for the examination of water and waste water. AJPH 56:387−388. DOI:10.2105/ajph.56.3.387 View in Article CrossRef Google Scholar
[11]	Bahgat N. T., Wilfert P., Eustace S. J., et al. (2024). Phosphorous speciation in EPS extracted from aerobic granular sludge. Water Res. 262:122077. DOI:10.1016/j.watres.2024.122077 View in Article CrossRef Google Scholar
[12]	DuBois M., Gilles K. A., Hamilton J. K., et al. (1956). Colorimetric method for determination of sugars and related substances. Anal Chem 28:350−356. DOI:10.1021/ac60111a017 View in Article CrossRef Google Scholar
[13]	Yu M., Guo W., Liang Y., et al. (2024). Towards rapid formation of electroactive biofilm: Insights from thermodynamics and electric field manipulation. Water Res. 261:121992. DOI:10.1016/j.watres.2024.121992 View in Article CrossRef Google Scholar
[14]	Zhang J., Xiao K., Liu Z., et al. (2021). Large-scale membrane bioreactors for industrial wastewater treatment in China: Technical and economic features, driving forces, and perspectives. Eng. 7:868−880. DOI:10.1016/j.eng.2020.09.012 View in Article CrossRef Google Scholar
[15]	Tsuyuhara T., Hanamoto Y., Miyoshi T., et al. (2010). Influence of membrane properties on physically reversible and irreversible fouling in membrane bioreactors. Water Sci Technol 61:2235−2240. DOI:10.2166/wst.2010.122 View in Article CrossRef Google Scholar
[16]	Liu Y., Lin B., Liu W., et al. (2018). Preparation and characterization of a novel nanofiltration membrane with chlorine-tolerant property and good separation performance. RSC Adv. 8:36430−36440. DOI:10.1039/C8RA06755D View in Article CrossRef Google Scholar
[17]	Szewczyk P. K., Ura D. P., Metwally S., et al. (2019). Roughness and fiber fraction dominated wetting of electrospun fiber-based porous meshes. Polymers. 11:34. DOI:10.3390/polym11010034 View in Article CrossRef Google Scholar
[18]	Xu J., Zhang F., Xin B., et al. (2019). Application of surface wettability modified polypropylene nonwoven in Janus composite fibrous mats for the function of directional water transport. Polym. Adv. Technol. 30:3038−3048. DOI:10.1002/pat.4735 View in Article CrossRef Google Scholar
[19]	Tao J., Song X., Bao B., et al. (2020). The role of surface wettability on water transport through membranes. Chem. Eng. 219:115602. DOI:10.1016/j.ces.2020.115602 View in Article CrossRef Google Scholar
[20]	Cai H. H., Fan H., Zhao L. H., et al. (2016). Effects of surface charge on interfacial interactions related to membrane fouling in a submerged membrane bioreactor based on thermodynamic analysis. J. Colloid Interface Sci. 465:33−41. DOI:10.1016/j.jcis.2015.11.044 View in Article CrossRef Google Scholar
[21]	Chen L., Lv M., Ding Y.-C., et al. (2023). Investigation of filtration performance and phosphorus removal in an electric field controlled dynamic membrane bioreactor. Chem. Eng. J. 478:147328. DOI:10.1016/j.cej.2023.147328 View in Article CrossRef Google Scholar
[22]	Chu H., Zhang Y., Zhou X., et al. (2014). Dynamic membrane bioreactor for wastewater treatment: Operation, critical flux, and dynamic membrane structure. J. Membr. Sci. 450:265−271. DOI:10.1016/j.memsci.2013.08.045 View in Article CrossRef Google Scholar
[23]	An Y., Wang Z., Wu Z., et al. (2009). Characterization of membrane foulants in an anaerobic non-woven fabric membrane bioreactor for municipal wastewater treatment. Chem. Eng. J. 155:709−715. DOI:10.1016/j.cej.2009.09.003 View in Article CrossRef Google Scholar
[24]	Salerno C., Vergine P., Berardi G., et al. (2017). Influence of air scouring on the performance of a self forming dynamic membrane bioreactor (SFD MBR) for municipal wastewater treatment. Bioresour. Technol. 223:301−306. DOI:10.1016/j.biortech.2016.10.054 View in Article CrossRef Google Scholar
[25]	Saleem M., Alibardi L., Lavagnolo M. C., et al. (2016). Effect of filtration flux on the development and operation of a dynamic membrane for anaerobic wastewater treatment. J. Environ. Manage. 180:459−465. DOI:10.1016/j.jenvman.2016.05.054 View in Article CrossRef Google Scholar
[26]	Kiso Y., Jung Y.-J., Park M.-S., et al. (2005). Coupling of sequencing batch reactor and mesh filtration: Operational parameters and wastewater treatment performance. Water Res. 39:4887−4898. DOI:10.1016/j.watres.2005.05.025 View in Article CrossRef Google Scholar
[27]	Xiong J., Fu D. and Singh R. P. (2014). Self-adaptive dynamic membrane module with a high flux and stable operation for the municipal wastewater treatment. J. Membr. Sci. 471:308−318. DOI:10.1016/j.memsci.2014.08.001 View in Article CrossRef Google Scholar
[28]	Fuchs W., Resch C., Kernstock M., et al. (2005). Influence of operational conditions on the performance of a mesh filter activated sludge process. Water Res. 39:803−810. DOI:10.1016/j.watres.2004.12.001 View in Article CrossRef Google Scholar
[29]	Rezvani F., Mehrnia M. R. and Poostchi A. A. (2014). Optimal operating strategies of SFDM formation for MBR application. Sep. Purif. Technol. 124:124−133. DOI:10.1016/j.seppur.2014.01.028 View in Article CrossRef Google Scholar
[30]	Turken T., Sengur-Tasdemir R., Ates-Genceli E., et al. (2019). Progress on reinforced braided hollow fiber membranes in separation technologies: A review. J. Water Process. Eng. 32:100938. DOI:10.1016/j.jwpe.2019.100938 View in Article CrossRef Google Scholar
[31]	Lv M., Feng H., Ding Y., et al. (2022). Comparison of the formation, filtration performance, and structural characteristic of self-forming dynamic membranes under constant transmembrane pressure and constant filtration flux. J. Environ. Chem. Eng. 10:108691. DOI:10.1016/j.jece.2022.108691 View in Article CrossRef Google Scholar
[32]	Gholami M., Middelkamp B., Roy Y., et al. (2024). Flux decline in crossflow ultrafiltration-based diafiltration process for lignin recovery from a deep eutectic solvent comprised of lactic acid and choline chloride. CHEM ENG RES DES 202:468−479. DOI:10.1016/j.cherd.2024.01.013 View in Article CrossRef Google Scholar
[33]	Liu H., Yang C., Pu W., et al. (2009). Formation mechanism and structure of dynamic membrane in the dynamic membrane bioreactor. Chem. Eng. J. 148:290−295. DOI:10.1016/j.cej.2008.08.043 View in Article CrossRef Google Scholar
[34]	Derjaguin B. and Landau L. (1993). Theory of the stability of strongly charged lyophobic sols and of the adhesion of strongly charged particles in solutions of electrolytes. Prog. Surf Sci. 43:30−59. DOI:10.1016/0079-6816(93)90013-L View in Article CrossRef Google Scholar
[35]	Verwey E. J. W. and Overbeek J. T. G. (1955). Theory of the stability of lyophobic colloids. J. Phys. Colloid Chem. 513:631-636. DOI: 10.1021/j150453a001 View in Article Google Scholar
[36]	Feng L., Li X., Song P., et al. (2011). Surface Interactions and Fouling Properties of Micrococcus luteus with Microfiltration Membranes. Appl. Biochem. Biotechnol. 165:1235−1244. DOI:10.1007/s12010-011-9341-9 View in Article CrossRef Google Scholar
[37]	Isik O., Abdelrahman A. M., Ozgun H., et al. (2019). Comparative evaluation of ultrafiltration and dynamic membranes in an aerobic membrane bioreactor for municipal wastewater treatment. Environ. Sci. Pollut. R. 26:32723−32733. DOI:10.1007/s11356-019-04409-6 View in Article CrossRef Google Scholar
[38]	Elbir H., Uyanik I., Çolakoğlu E. B., et al. (2024). Pre-coating of stainless-steel mesh support material with wastewater treatment plant sludges in a dynamic membrane filtration process. J. Water Process. Eng. 64:105673. DOI:10.1016/j.jwpe.2024.105673 View in Article CrossRef Google Scholar
[39]	Zamani F., Ullah A., Akhondi E., et al. (2016). Impact of the surface energy of particulate foulants on membrane fouling. J. Membr. Sci. 510:101−111. DOI:10.1016/j.memsci.2016.02.064 View in Article CrossRef Google Scholar
[40]	Shen C., Zhang P., Xiang S., et al. (2025). Surface modification of PVDF membrane by physical co-deposition and bridging grafting strategy for enhanced anti-fouling performance. Surf. Interf. 75:107779. DOI:10.1016/j.surfin.2025.107779 View in Article CrossRef Google Scholar
[41]	Huang P., Chen C., Gu M., et al. (2025). Solvation-based interfacial renovation of contaminated membranes for performance restoration and chlorine resistance enhancement. J. Membr. Sci. 719:123749. DOI:10.1016/j.memsci.2025.123749 View in Article CrossRef Google Scholar
[42]	Li N., Zhang J., Tian Y., et al. (2016). Anti-fouling potential evaluation of PVDF membranes modified with ZnO against polysaccharide. Chem. Eng. J. 304:165−174. DOI:10.1016/j.cej.2016.06.088 View in Article CrossRef Google Scholar
[43]	Meng F., Chae S.-R., Drews A., et al. (2009). Recent advances in membrane bioreactors (MBRs): Membrane fouling and membrane material. Water Res. 43:1489−1512. DOI:10.1016/j.watres.2008.12.044 View in Article CrossRef Google Scholar
[44]	Chen W., Westerhoff P., Leenheer J. A., et al. (2003). Fluorescence excitation−emission matrix regional integration to quantify spectra for dissolved organic matter. Environ. Sci. Technol. 37:5701−5710. DOI:10.1021/es034354c View in Article CrossRef Google Scholar
