Nanostructured interface-engineered field-effect transistor biosensors for sensitive detection of serum miRNAs
-
GRAPHICAL ABSTRACT
-
PUBLIC SUMMARY
-
A two-dimensional undulating transistor biosensing interface is constructed via sacrificial templates.
The influence of the nanostructure of the sensing interface on ion distribution is confirmed and verified.
A transistor biosensor based on nanostructured interfaces is constructed for serum miRNA detection.
The relationship between cardiovascular diseases and miRNAs is established via machine learning algorithms.
-
-
ABSTRACT
The efficient detection of disease-relevant biomolecules in untreated clinical samples is highly desired, especially for acute diseases. Field-effect transistor (FET) biosensors allow label-free and rapid detection of biomolecules through the measurement of their intrinsic charges. However, the sensitivity of FET biosensors would be undermined by the charge screening effect in practical biological media with high ionic strength. Here, we report the design and performance of a nanostructured interface-engineered field effect transistor (NIE FET) biosensor for highly sensitive detection of cardiovascular disease (CVD)-associated miRNAs in serum samples. Molecular dynamic simulations and electrochemical characterizations demonstrate that the nanostructured interface with concave regions alleviates the charge screening effect and enlarges the Debye length. The rationally designed NIE FET biosensor exhibits high sensitivity and reproducibility in detecting miRNA in untreated serum samples with a detection limit of pM level. Benefiting from its excellent detection capabilities, NIE FET reveals the relationship between miRNAs and CVDs and realizes the effective classification of different CVD types with the help of machine learning algorithms. The construction of NIE FET defines a robust strategy for electrical biomolecular detection in practical clinical samples. -
-
REFERENCES
[1] Geng, Y., Wang, Z., Zhou, J., et al. (2023). Recent progress in the development of fluorescent probes for imaging pathological oxidative stress. Chem. Soc. Rev. 52: 3873−3926. DOI: 10.1039/D2CS00172A. [2] Ladner, J.T., Grubaugh, N.D., Pybus, O.G., et al. (2019). Precision epidemiology for infectious disease control. Nat. Med. 25: 206−211. DOI: 10.1038/s41591-019-0345-2. [3] Perkins, M.D., Dye, C., Balasegaram, M., et al. (2017). Diagnostic preparedness for infectious disease outbreaks. The Lancet 390: 2211−2214. DOI: 10.1016/S0140-6736(17)31224-2. [4] Wiersinga, W.J., Rhodes, A., Cheng, A.C., et al. (2020). Pathophysiology, transmission, diagnosis, and treatment of coronavirus disease 2019 (COVID-19). Jama 324: 782−793. DOI: 10.1001/jama.2020.12839. [5] Dai, C., Liu, Y., and Wei, D. (2022). Two-dimensional field-effect transistor sensors: The road toward commercialization. Chem. Rev. 122: 10319−10392. DOI: 10.1021/acs.chemrev.1c00924. [6] Torricelli, F., Adrahtas, D.Z., Bao, Z., et al. (2021). Electrolyte-gated transistors for enhanced performance bioelectronics. Nat. Rev. Methods Primers 1: 66. DOI: 10.1038/s43586-021-00065-8. [7] Yang, Y., Wang, J., Huang, W., et al. (2022). Integrated urinalysis devices based on interface‐engineered field‐effect transistor biosensors incorporated with electronic circuits. Adv. Mater. 34: 2203224. DOI: 10.1002/adma.202203224. [8] Sakata, T., Nishimura, K., Miyazawa, Y., et al. (2017). Ion sensitive transparent-gate transistor for visible cell sensing. Anal. Chem. 89: 3901−3908. DOI: 10.1021/acs.analchem.6b02246. [9] Balderston, S., Taulbee, J.J., Celaya, E., et al. (2021). Discrimination of single-point mutations in unamplified genomic DNA via Cas9 immobilized on a graphene field-effect transistor. Nat. Biomed. Eng. 5: 713−725. DOI: 10.1038/s41551-021-00706-z. [10] Bonafè, F., Decataldo, F., Zironi, I., et al. (2022). AC amplification gain in organic electrochemical transistors for impedance-based single cell sensors. Nat. Commun. 13: 5423. DOI: 10.1038/s41467-022-33094-2. [11] Chen, D., Huang, W., Zhang, Y., et al. (2023). CRISPR‐mediated profiling of viral RNA at single‐nucleotide resolution. Angew. Chem. Int. Ed. 62: e202304298. DOI: 10.1002/anie.202304298. [12] Gu, Y., Wang, C., Kim, N., et al. (2021). Three-dimensional transistor arrays for intra- and inter-cellular recording. Nat. Nanotechnol. 17: 292−300. DOI: 10.1038/s41565-021-01040-w. [13] Luo, X. and Davis, J.J. (2013). Electrical biosensors and the label free detection of protein disease biomarkers. Chem. Soc. Rev. 42: 5944−5962. DOI: 10.1039/C3CS60077G. [14] Souteyrand, E., Cloarec, J.P., Martin, J.R., et al. (1997). Direct detection of the hybridization of synthetic homo-oligomer DNA sequences by field effect. J. Phys. Chem. B 101: 2980−2985. DOI: 10.1021/jp963056h. [15] Song, J., Liu, H., Zhao, Z., et al. (2023). Flexible organic transistors for biosensing: Devices and applications. Adv. Mater. 36 : 2300034. DOI: 10.1002/adma.202300034. [16] Wang, Q., Ai, Z., Guo, Q., et al. (2023). Photo-enhanced chemo-transistor platform for ultrasensitive assay of small molecules. J. Am. Chem. Soc. 145: 10035−10044. DOI: 10.1021/jacs.2c13655. [17] Zhang, Y., Chen, D., He, W., et al. (2023). Interface‐engineered field‐effect transistor electronic devices for biosensing. Adv. Mater. Early View : 2306252. DOI: 10.1002/adma.202306252. [18] Sakara, T. (2024). Signal transduction interfaces for field-effect transistor-based biosensors. Commun. Chem. 7: 35. DOI: 10.1038/s42004-024-01121-6. [19] Hueckel, T., Hocky, G.M., Palacci, J., et al. (2020). Ionic solids from common colloids. Nature 580: 487−490. DOI: 10.1038/s41586-020-2205-0. [20] Krämer, J., Kang, R., Grimm, L.M., et al. (2022). Molecular probes, chemosensors, and nanosensors for optical detection of biorelevant molecules and ions in aqueous media and biofluids. Chem. Rev. 122: 3459−3636. DOI: 10.1021/acs.chemrev.1c00746. [21] Sarker, B.K., Shrestha, R., Singh, K.M., et al. (2023). Label-free neuropeptide detection beyond the Debye length limit. ACS Nano 17: 20968−20978. DOI: 10.1021/acsnano.3c02537. [22] Kesler, V., Murmann, B., and Soh, H.T. (2020). Going beyond the Debye length: Overcoming charge screening limitations in next-generation bioelectronic sensors. ACS Nano 14: 16194−16201. DOI: 10.1021/acsnano.0c08622. [23] Wang, L., Wang, X., Wu, Y., et al. (2022). Rapid and ultrasensitive electromechanical detection of ions, biomolecules and SARS-CoV-2 RNA in unamplified samples. Nat. Biomed. Eng. 6: 276−285. DOI: 10.1038/s41551-021-00833-7. [24] Wang, X., Dai, C., Wu, Y., et al. (2023). Molecular-electromechanical system for unamplified detection of trace analytes in biofluids. Nat. Protoc. 18: 2313−2348. DOI: 10.1038/s41596-023-00830-x. [25] Stern, E., Wagner, R., Sigworth, F.J., et al. (2007). Importance of the debye screening length on nanowire field effect transistor sensors. Nano Lett. 7: 3405−3409. DOI: 10.1021/nl071792z. [26] Hwang, M.T., Heiranian, M., Kim, Y., et al. (2020). Ultrasensitive detection of nucleic acids using deformed graphene channel field effect biosensors. Nat. Commun. 11: 1543. DOI: 10.1038/s41467-020-15330-9. [27] Kobayashi, N.P., Talin, A.A., Davydov, A.V., et al. (2014). Understanding and optimization of the sensitivity of nanoscale FET-based biosensors. Nanoepitaxy: Materials and Devices VI. 9174: 917413. DOI: 10.1117/12.2064899. [28] Park, I., Lim, J., You, S., et al. (2021). Detection of SARS-CoV-2 virus amplification using a crumpled graphene field-effect transistor biosensor. ACS Sens. 6: 4461−4470. DOI: 10.1021/acssensors.1c01937. [29] Shoorideh, K. and Chui, C.O. (2014). On the origin of enhanced sensitivity in nanoscale FET-based biosensors. Proc. Natl Acad. Sci. USA 111: 5111−5116. DOI: 10.1073/pnas.1315485111. [30] Li Y., Hu H., Xu W., et al., (2024). Nanoripples in graphene: A remarkable structure for proton mass transport. The Innovation Materials 2 : 100053. DOI: 10.59717/j.xinn-mater.2024.100053. [31] Plimpton, S. (1995). Fast parallel algorithm for short-range molecular dynamics. J. Comput. Phys. 117: 1−19. DOI: 10.1006/jcph.1995.1039. [32] Zhang, Y., Chen, B., Chen, D., et al. (2023). Electrical detection assay based on programmable nucleic acid probe for efficient single-nucleotide polymorphism identification. ACS Sens. 8: 2096−2104. DOI: 10.1021/acssensors.3c00453. [33] Vogel, B., Claessen, B.E., Arnold, S.V., et al. (2019). ST-segment elevation myocardial infarction. Nat. Rev. Dis. Primers 5: 40. DOI: 10.1038/s41572-019-0094-z. [34] Westermann, D., Neumann, J.T., Sörensen, N.A., et al. (2017). High-sensitivity assays for troponin in patients with cardiac disease. Nat. Rev. Cardiol. 14: 472−483. DOI: 10.1038/nrcardio.2017.48. [35] Gorgannezhad, L., Umer, M., Islam, M.N., et al. (2018). Circulating tumor DNA and liquid biopsy: opportunities, challenges, and recent advances in detection technologies. Lab Chip 18: 1174. DOI: 10.1039/c8lc00100f. [36] Masud, M.K., Umer, M., Hossain, M.S.A, et al. (2019). Nanoarchitecture frameworks for electrochemical miRNA detection. Trends Biochem. Sci. 44: 433−452. DOI: 10.1016/j.tibs.2018.11.012. [37] Tao Q., Cai X., Xue Y., et al. (2024). Alzheimer’s disease early diagnostic and staging biomarkers revealed by large-scale cerebrospinal fluid and serum proteomic profiling. The Innovation. 5: 100544. DOI: 10.1016/j.xinn.2023.100544. [38] Sheng, C., Zhao, J., Di, Z., et al. (2022). Spatially resolved in vivo imaging of inflammation-associated mRNA via enzymatic fluorescence amplification in a molecular beacon. Nat. Biomed. Eng. 6: 1074−1084. DOI: 10.1038/s41551-022-00932-z. [39] Viereck, J. and Thum, T. (2017). Circulating noncoding RNAs as biomarkers of cardiovascular disease and injury. Circ. Res. 120: 381−399. DOI: 10.1161/circresaha.116.308434. [40] Rincon, L.M., Rodriguez-Serrano, E.M., Gonzalez-Portilla, P., et al. (2020). Predicting adverse ventricular remodelling and poor outcome after acute myocardial infarction by a distinctive miRNA signature. Eur. Heart J. 41: ehaa946.1670. DOI: 10.1093/ehjci/ehaa946.1670. [41] Lu H., Wang Y., and Yu R. (2023). Immune cell membrane-coated nanoparticles for targeted myocardial ischemia/reperfusion injury therapy. The Innovation Medicine 1: 100015. DOI: 10.59717/j.xinn-med.2023.100015. [42] Islam, M.N., Musad, M.K., Haque, M.H., et al. (2017). RNA biomarkers: Diagnostic and prognostic potentials and recent developments of electrochemical biosensors. Small Methods 1: 1700131. DOI: 10.1002/smtd.201700131. [43] Chatterjee, N.A., Tikkanen, J.T., Panicker, G.K., et al. (2020). Simple electrocardiographic measures improve sudden arrhythmic death prediction in coronary disease. Eur. Heart J. 41: 1988−1999. DOI: 10.1093/eurheartj/ehaa177. [44] Godinez Cordova, L.B., Sanchez-Amaya, D.J., Zebadua-Torres, R., et al. (2023). Pulmonary hypertension and atrial arrhythmias: Incidence, risk factors, and clinical impact. Eur. Heart J. 44: ehad655.1636. DOI: 10.1093/eurheartj/ehad655.1636. [45] Sandhu, R.K., Dron, J.S., Liu, Y., et al. (2022). Polygenic risk score predicts sudden death in patients with coronary disease and preserved systolic function. J. Am. Coll. Cardiol. 80: 873−883. DOI: 10.1016/j.jacc.2022.05.049. -
ABOUT THIS ARTICLE
Cite this article:
Chen D., Lu Q., Song N., et al., (2024). Nanostructured interface-engineered field-effect transistor biosensors for sensitive detection of serum miRNAs. The Innovation Materials 2(4): 100091. https://doi.org/10.59717/j.xinn-mater.2024.100091
Figures(5)
Article Metrics
Relative Articles
Export File
Citation
Chen D., Lu Q., Song N., et al., (2024). Nanostructured interface-engineered field-effect transistor biosensors for sensitive detection of serum miRNAs. The Innovation Materials 2(4): 100091. https://doi.org/10.59717/j.xinn-mater.2024.100091
Format
Content
DownLoad:
-
Figure 1.
Fabrication and characterization of NIE FET biosensors
-
Figure 2.
Molecular mechanism of the biosensing interfaces
-
Figure 3.

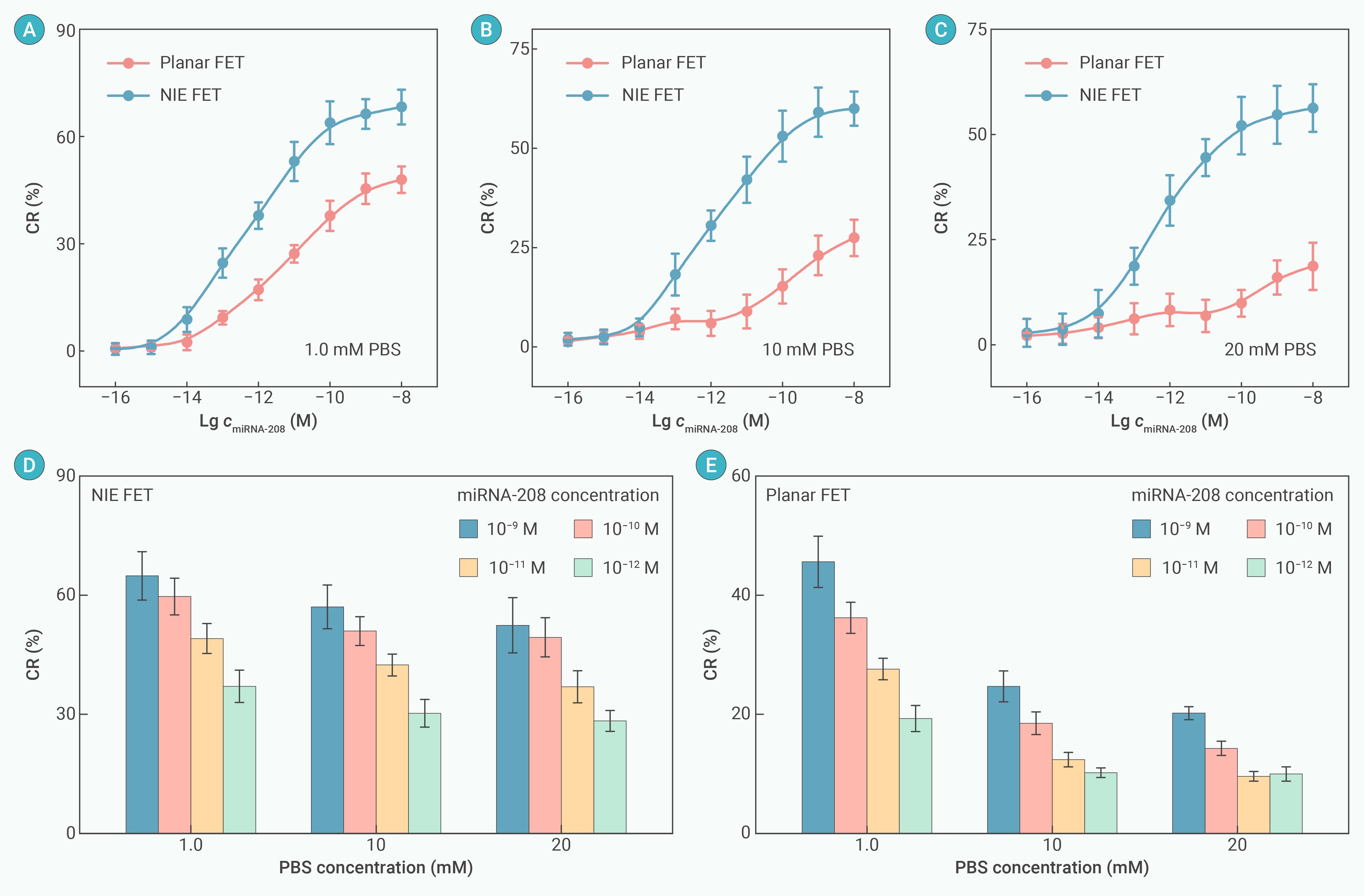

Detection of miRNA-208 via NIE FET biosensors
-
Figure 4.

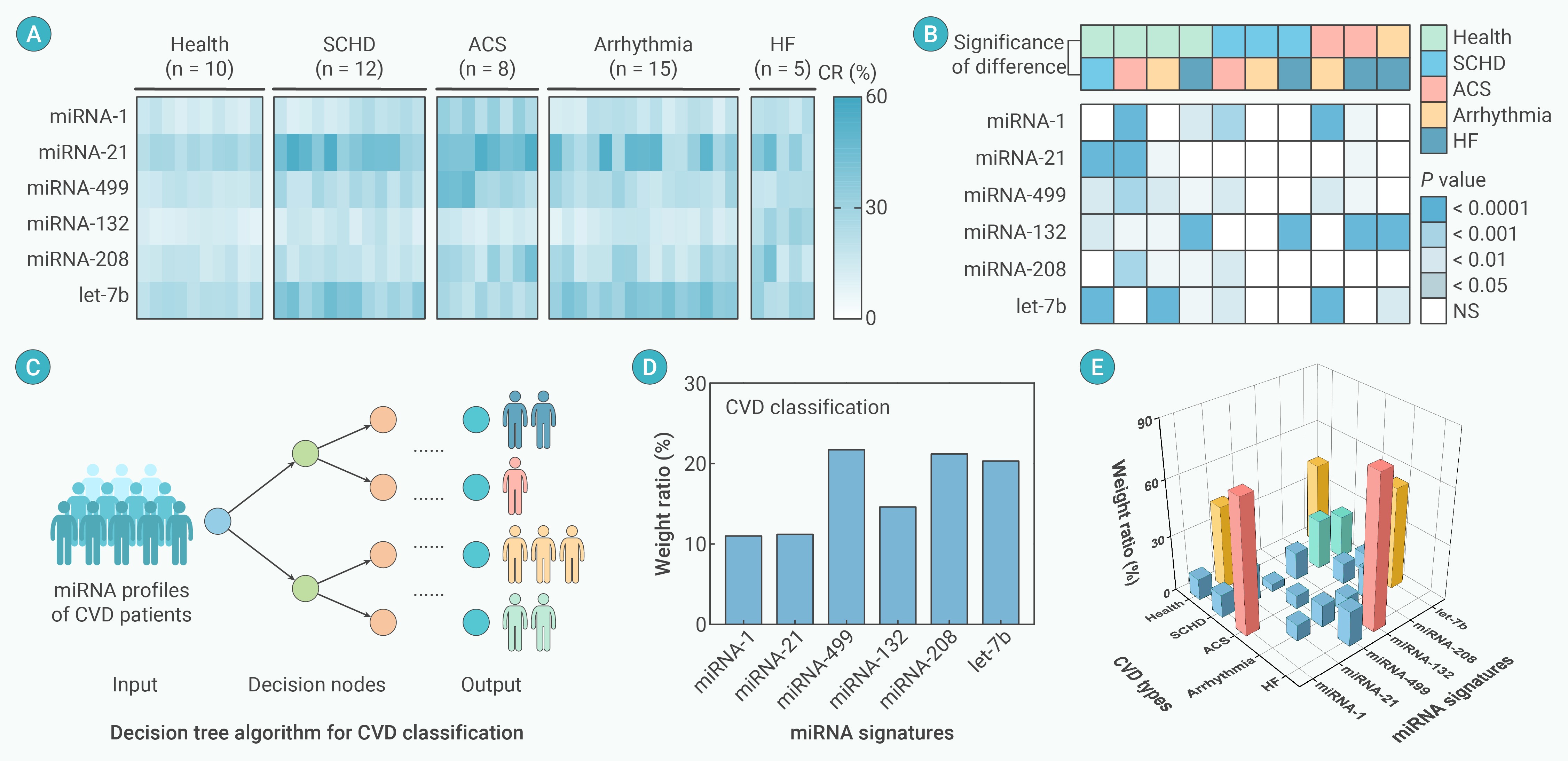

miRNA profiling of CVD patients via NIE FET biosensors
-
Figure 5.

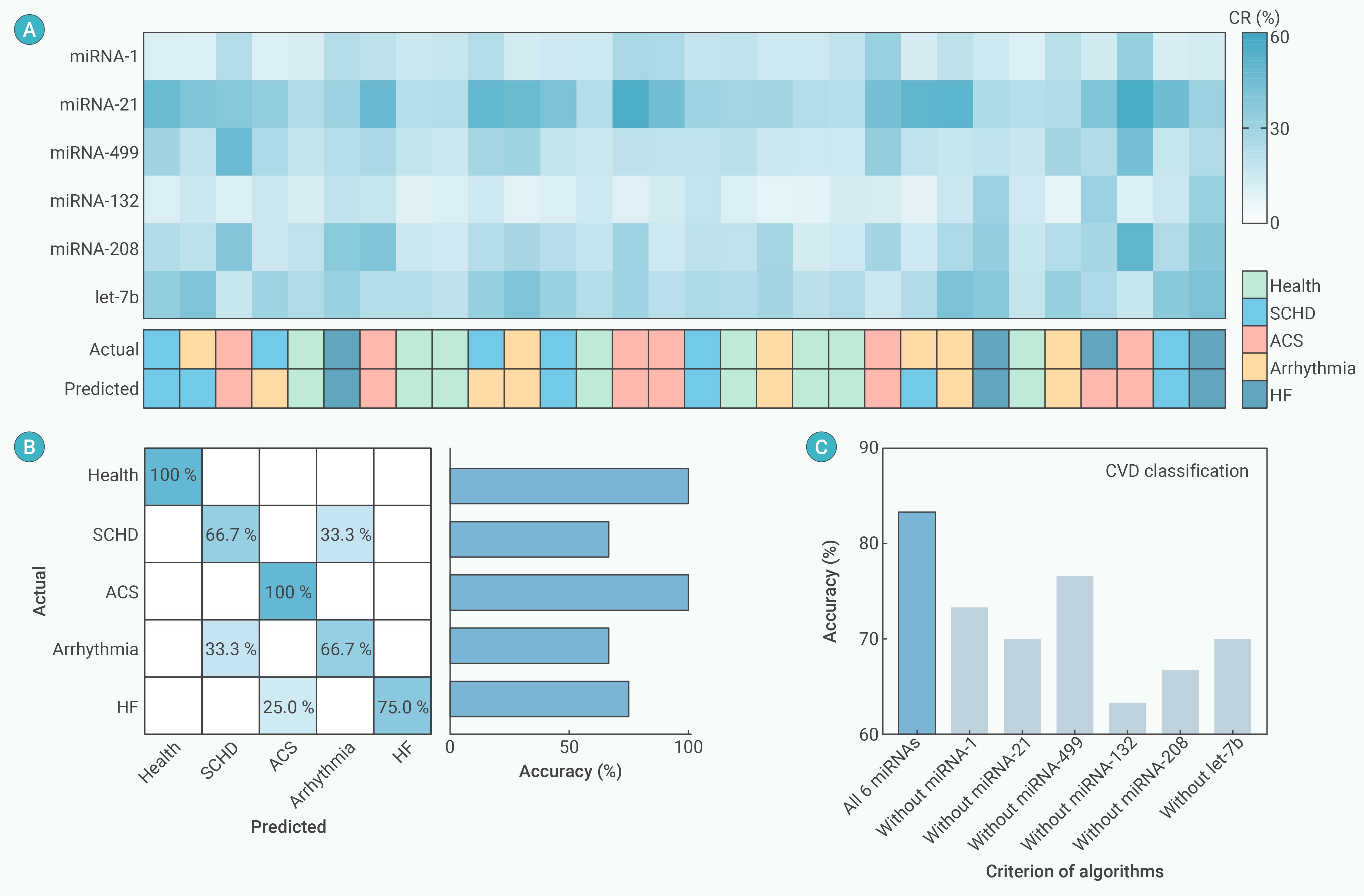

Classification of CVD types in a validation cohort
